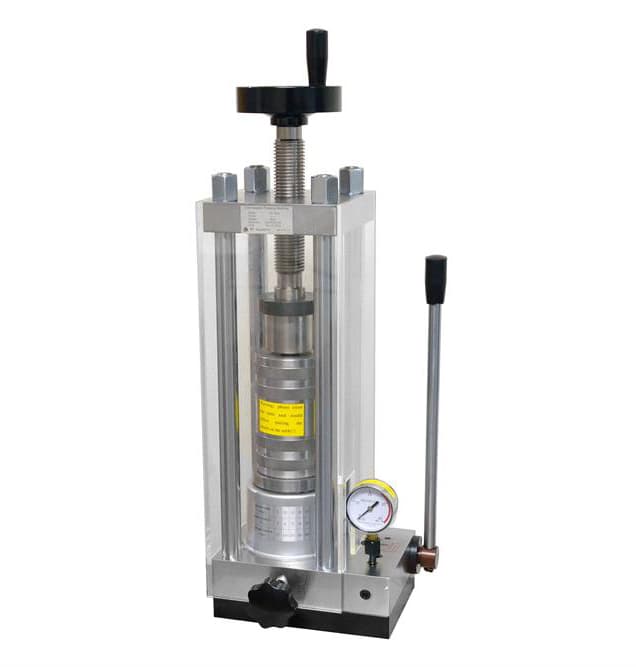

15T CIP (Cold Isostatic Pressing) Hydraulic Press Machine With 22mm ID Vessel

·         max available sample height 70mm

·         Made of high strength alloy with stainless steel protective jacket

·         Notes:

o    The actual force applied on the Vessel Cylinder (Ton) equal to the force applied to your working piece

o    For calculating the actual pressure (Mpa) applied on your working piece, please follow the equations in below:

P = T/πr^2 x g x 10

·         P: Pressure (Mpa) applied on your working piece

·         T: Force (metric ton) Applied on the Pressure Vessel Cylinder

·         g: Standard gravity. g ≈ 9.8 m/s2

·         π: ~3.14

·         r: Radius (cm) of the Pressure Vessel (1.1 cm)

·         *1000 Kg = 1 Metric Tone; 1 Mpa ≈ 10 Kg/cm2

·         You may use the machine as a dry pressing to order pressing die

·         It's normal that the target pressure decreases a little bit during the pressure holding time, so never press

the red nor the green button in this period.

·         Pressure must be completely released first, then make sure the hand wheel and the pressure release valve

has been tightened before pressing

·         Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (20mm)
