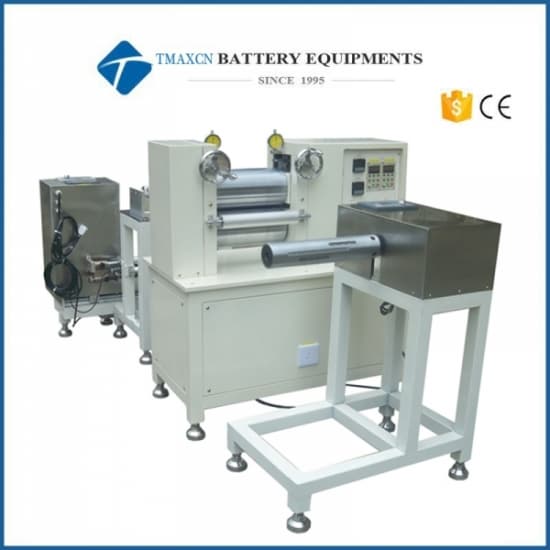

Roll to Roll Roller Press Calendaring Machine for Battery Electrode Rolling

Model Number:: TMAX-RO
Net Weight:: 350kg
Compliance:: CE
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Roll to Roll Roller Press Calendaring Machine for Battery Electrode Rolling

Feature

1. Lab Roll Press Machine is a compact precision Continuous Roll to roll Heat Press Machine . It has dual rollers of 150mm dia. x 300mm width and dual grade micrometer. This lab roll press machine is an ideal Hot rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

2. This model Electric Calender is mainly used for small electrodes in the rolling process, suitable for use by universities and enterprises experiment line, make the battery electrode compression molding, increased density.

3. It has a pair of 300mm width steel rollers. Such a roller can be heated up to 120℃.

4. The roll to roll system is with Deviation correction tension to control Reeling and unreeling

Specifications

Model	TMAX-RO150-300
Working Voltage	3phase 380v 50hz, or 3phase 208v 60hz
Power	6000W Total
Roller Dimension	150mm(Dia.) x 300mm(W) (customized size is available upon request)
Roller surface hardness	>HRC62
Rolling press accuracy	≤±0.005
Roller surface finish	0.8
Roller surface hardening depth	5mm
Rolling press thickness	0-3mm adjusted with Dial gauge
Rolling press width	Max 300mm, Customized
Rolling press speed	0-6.5m/min adjustable
Heating temperature	RT-120℃,
Application Notes	This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise. 1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting 2 Coated Rust-proof oil if machine were to be unused for a long period of time 3 The minimum thickness of the rolled sheet should depend on the physical property of the materials.
Package weight	400kg
Package volume	0.7M3

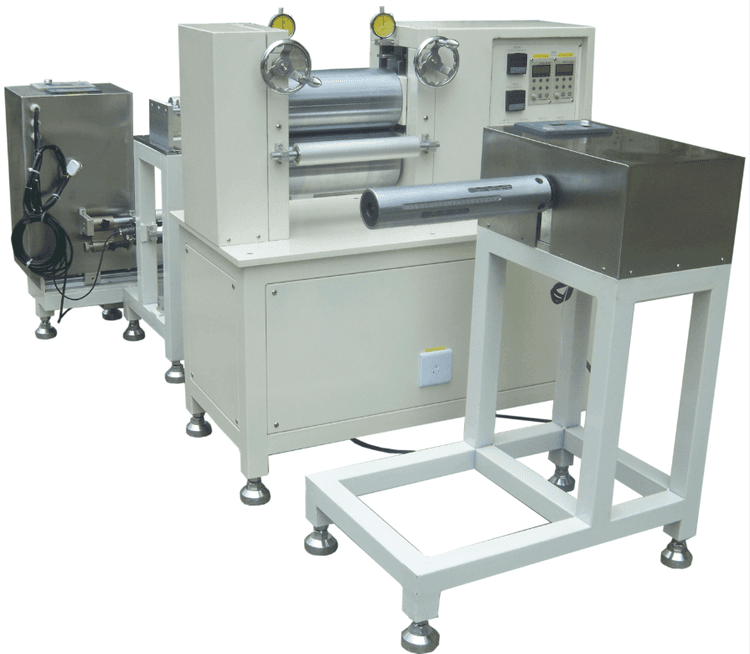

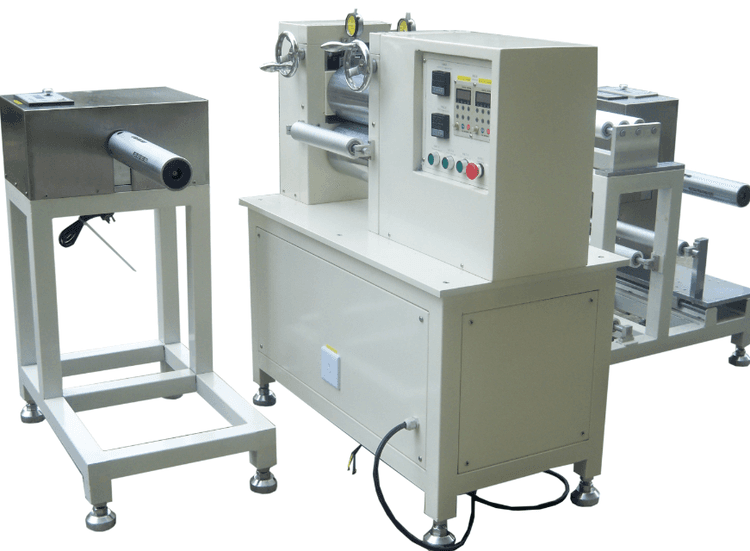

Roll to Roll System for Hot Press Machine
Electrode parameters	Roller diameter : φ76 mm Reel and unreel max diameter : φ450 mm Electrode max width : 180mm
Unreel and Reel parameters	Accuracy : 5% Tension adjustment : 0.5~2.5Kgf
Deviation correction	≤±0.5mm
Tension adjustment	25N
Dimension for Unreel	About 704585cm
Dimension for Reel	About 707080cm
