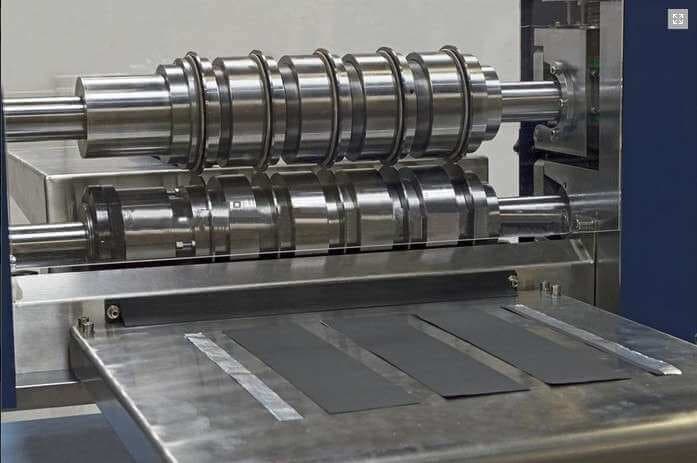

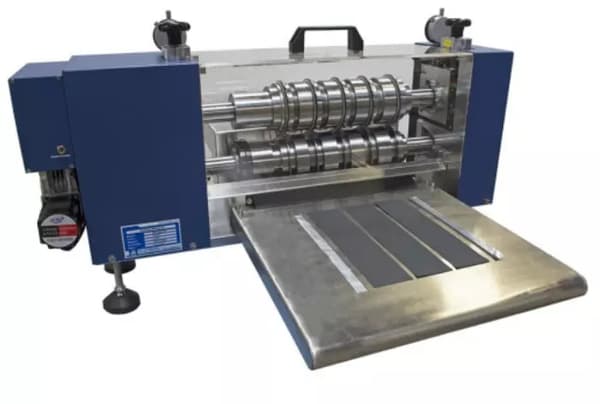

Semi-Automatic Cylinder Cell Electrode Slitting Machine

Product Description

TMAX-MSK-300 is a CE Certified semi-automatic
slitting machine (roll slitting) for preparing electrode of cylinder batteries
in R&D laboratories.

Model	Semi Automatic slitting Machine TMAX-MSK-300
Working Voltage	Machine Input: 22-24V DC with 5mm barrel connector Power Input: 110-240V AC , which can be used worldwide
Max. Power Consumption	120W

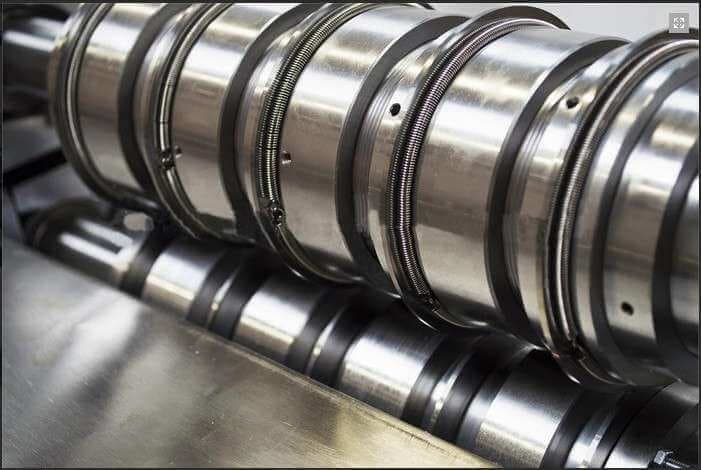

Cutting Method	Two round blades rolling to cut Blade Materials: Tungsten alloys Blade Diameter: 100mm It can be customized
Cutting Width	1.4 sets of slitting blades (two blades with slitting width of 58mm, and another two with slitting width of 56 mm) It can be customized 2.Customization: 25 - 250mm cutting width is available at extra cost, please contact us for details. It can be customized
Cutting Thickness	100 - 320 microns
Cutting Speed	0 - 4.5 meter / minute Adjustable
Product Dimensions	85cm(L) x 100cm(W) x 50cm(H)
Warranty	Two years limited warranty with lifetime support
Net Weight	120kg
