Semi-Automatic 18650 Electrode Winding

Model Number:: TMAX-MW001
Type:: Electrode Winding
Dimension(L*W*H):: Less than Φ35*L90mm
Net Weight:: 45kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Semi-Automatic 18650 Electrode Winding

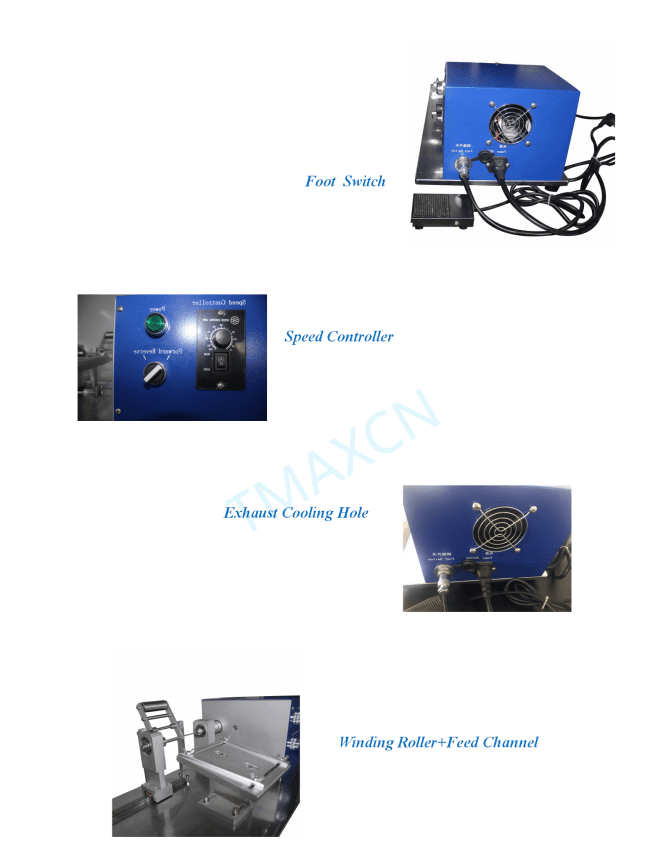

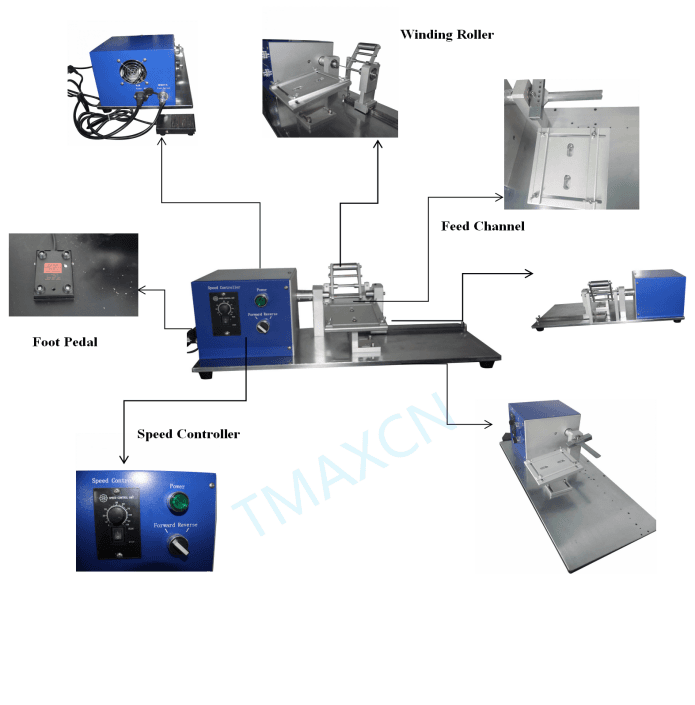

TMAX-MW001 semi-automatic
winder machine is
used for winding battery anode/cathode electrodes with separator
together in the research of Li-ion cylinder
batteries.

Model	Electrode Winding TMAX-MW001
Working Voltage	AC110-240V, 50/60HZ
Power	50W
Warranty	Two Year limited warranty with lifetime support
Winding Speed	0 - 170 RPM Adjustable
Suitable battery size	Less than Φ35*L90mm, or according to your requirement
Winding Mode	Switchable between clockwise and counter clock wise
Output	70-100EA/h, according to battery size and maunal
Product Dimensions (LWH)	570320280mm
Net weight	About 30kg
Package size	720350280mm
Package weight	45kg

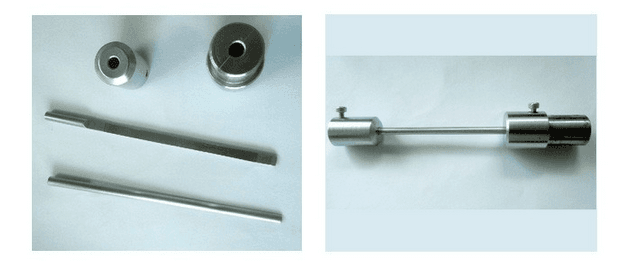

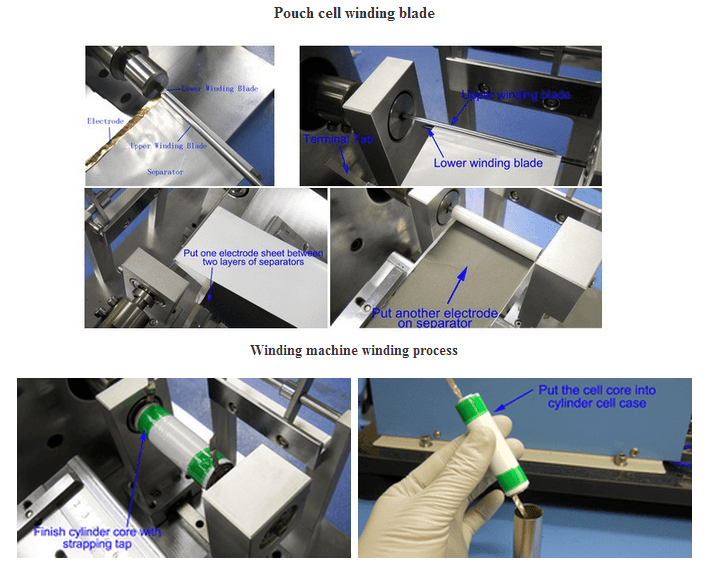

Application Notes	This machine can be used for cylinder battery with round winding shaft, and you can also choose the square winding shaft for pouch cell core winding, We will supply with the suitable winding accessories according to your battery model
