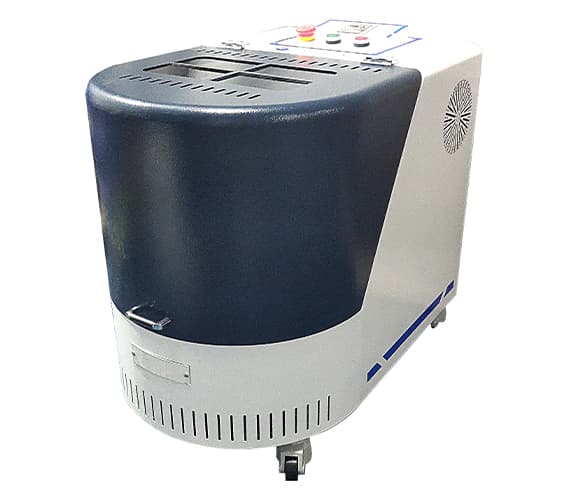

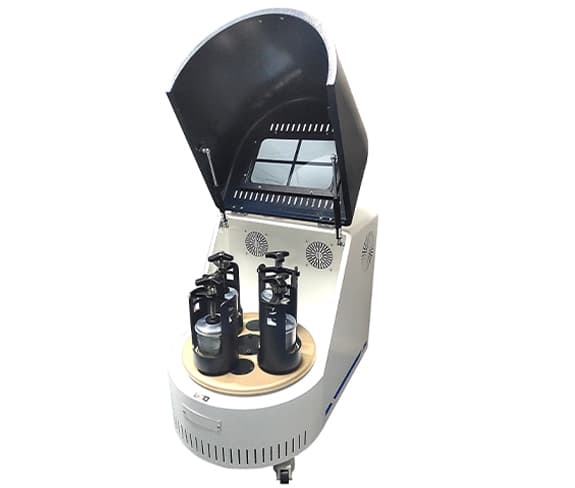

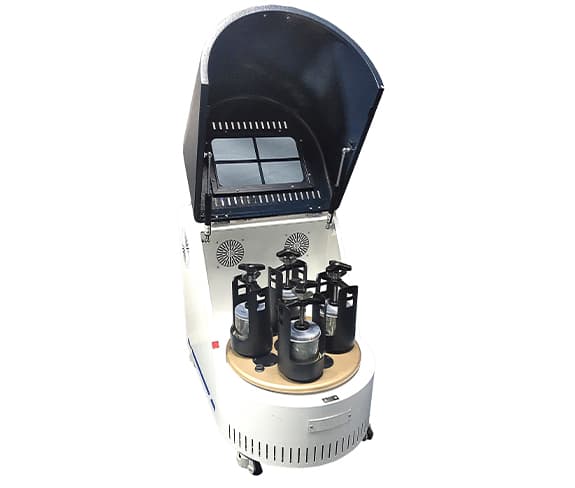

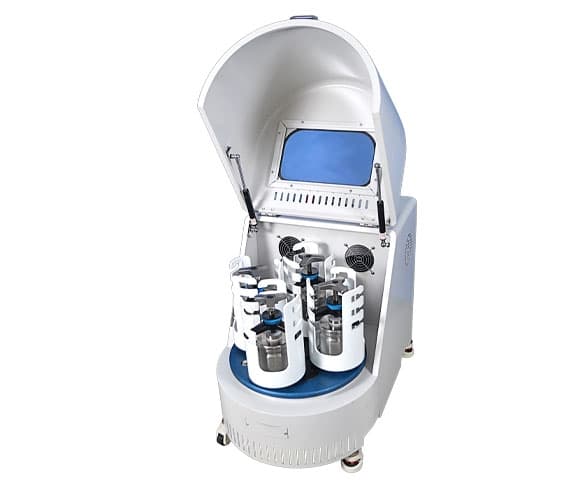

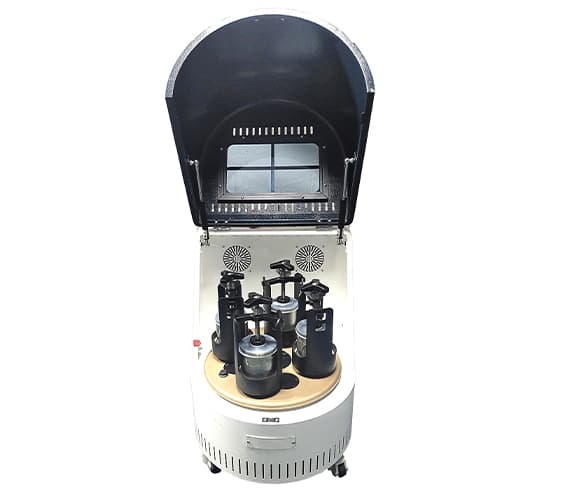

200ml-16L Vertical Semicircular Planetary Ball Mill With Standard Jar & Vacuum Jar

Model Number:: TMAX-PBM
Type:: Planetary Ball Mill
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

200ml-16L Vertical Semicircular Planetary Ball Mill With Standard Jar & Vacuum Jar

Feature

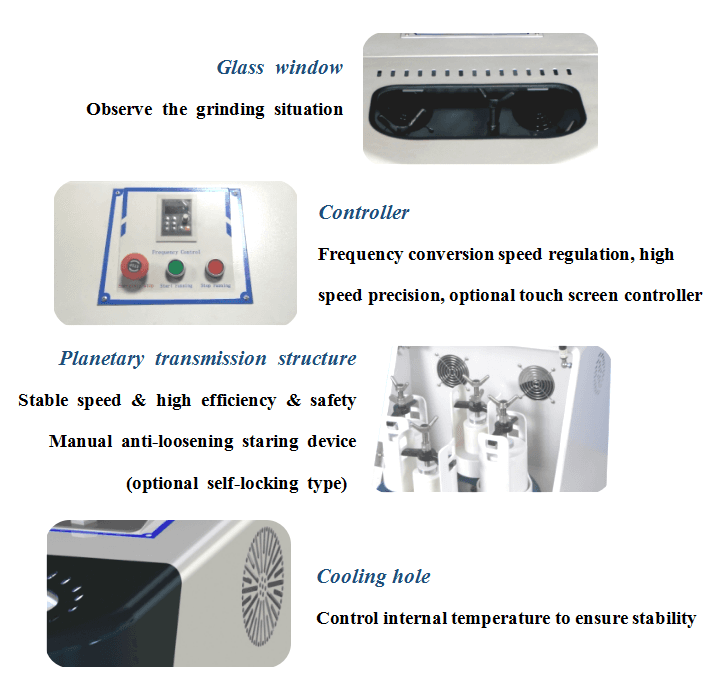

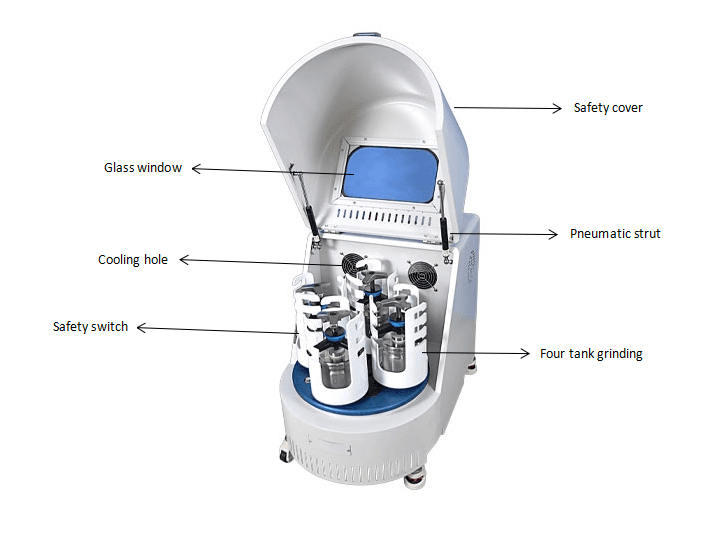

The equipment adopts professional appearance design, the shell is stamped and formed by high-precision molds, which are generous and exquisite, high-end and stable, the planetary disc is formed by integral processing, the structural components are processed by CNC processing technology, and the transmission gear is made of high temperature and wear resistant non-metal and metal combination precision The gear and the nitriding metal heat treatment process ensure that the rotating shaft is wear-resistant and prevent the shaft from breaking, and ensure that the equipment runs smoothly and quietly at high speed. The grinding pot watching device keeps a close eye on the grinding pot while simultaneously self-locking and preventing loosening, which is convenient, safe and reliable. , The outer shell carries out product color matching, gives the product new vitality, activates the new life of the product, conforms to the international and domestic aesthetic needs, and complies with ergonomics.

Product performance

Transfer method	Gear drive

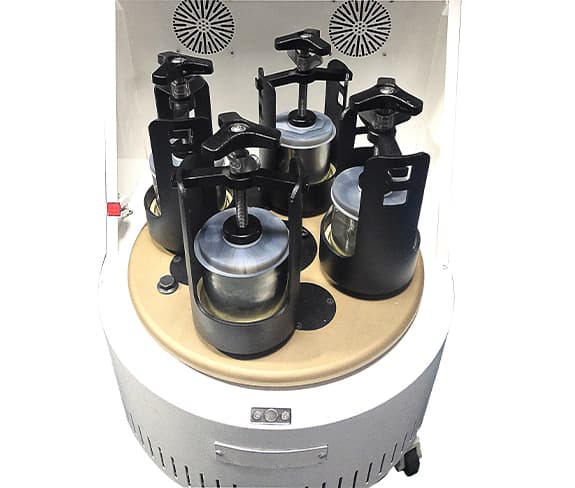

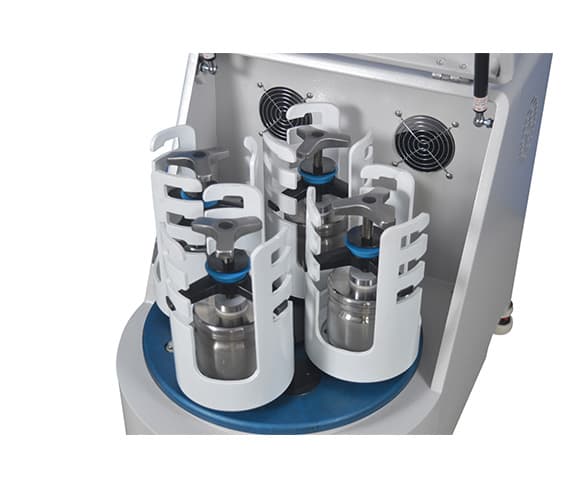

Working method	Two or four ball milling tanks work simultaneously
Maximum sample volume	Two-thirds of the volume of the ball mill
Ball mill tank volume	0.05L-4L per tank, total volume 0.2L-16L
Feed size	Soil material≤10mm, other materials≤3mm
Discharge size	The smallest can reach 0.1um
Speed ratio (revolution: rotation)	See the main parameters of planetary ball mill for details
Speed (rotation)	See the main parameters of planetary ball mill for details
Speed mode	Brand inverter stepless speed regulation

Technical parameter

Model number	Volume (L)	Can be equipped with ball mill tank specifications	Quantity (set)	Matching ball mill tank	Standard ball mill tank fixation and anti-loosening device
PBM-0.2A	0.2	10-50ml	4	Can be equipped with 10ml vacuum ball mill tank	Manual
PBM-0.4A	0.4	50-100ml	4	Can be equipped with 50ml vacuum ball mill tank	Manual
PBM-1A	1	50-250ml	4	Can be equipped with 50ml-100ml vacuum ball mill tank	Manual
PBM-2A	2	50-500ml	4	Can be equipped with 50ml-250ml vacuum ball mill tank	Manual
PBM-4A	4	250-1000ml	4	Can be equipped with 50ml-1000ml vacuum ball mill tank	Manual
PBM-8A	8	1-2L	4	Can be equipped with 50ml-2000ml vacuum ball mill tank	Manual
PBM-10A	10	1-2.5L	4	Can be equipped with 1-2L vacuum ball mill tank	Manual
PBM-12A	12	1-3L	4	Can be equipped with 1-2L vacuum ball mill tank	Manual
PBM-16A	16	2-4L	4	Can be equipped with 1-3L vacuum ball mill tank	Manual

Model number	Equipment power supply (single phase)	Motor power (KW)	Total running time (min)	Positive and negative alternate running time (min)	Adjustable speed revolution (rpm)	Adjustable speed rotation (rpm)
PBM-0.2A	Single phase 220V-50Hz	0.09	1-9999	1-999	60-580	120-930
PBM-0.4A	Single phase 220V-50Hz	0.25	1-9999	1-999	47-465	94-930
PBM-1A	Single phase 220V-50Hz	0.75	1-9999	1-999	35-370	70-740
PBM-2A	Single phase 220V-50Hz	0.75	1-9999	1-999	35-370	70-740
PBM-4A	Single phase 220V-50Hz	0.75	1-9999	1-999	35-370	70-740
PBM-8A	Single phase 220V-50Hz	1.5	1-9999	1-999	35-320	70-640
PBM-10A	Single phase 220V-50Hz	1.5	1-9999	1-999	35-320	70-640
PBM-12A	Single phase 220V-50Hz	2.2	1-9999	1-999	35-320	70-640
PBM-16A	Three phases 380V-50Hz	3	1-9999	1-999	32-255	70-510

Model number	Standard panel (optional smart, touch screen)	Lubrication method	Speed mode	Weight (kg)	Dimensions (LWH, mm)	Noise≤db
PBM-0.2A	Normal	Grease	Frequency	18	430250270	50±5
PBM-0.4A	Normal	Lubricating oil	Frequency	26	520300420	55±5
PBM-1A	Normal	Grease	Frequency	74	740470600	60±5
PBM-2A	Normal	Grease	Frequency	74	740470600	60±5
PBM-4A	Normal	Grease	Frequency	80	740470600	60±5
PBM-8A	Normal	Grease	Frequency	132	870560680	60±5
PBM-10A	Normal	Grease	Frequency	138	870560680	60±5
PBM-12A	Normal	Grease	Frequency	140	870560680	60±5
PBM-16A	Normal	Grease	Frequency	200	940600710	65±5
