1200℃ Atmosphere Muffle Furnace

Model

GF12Q-I

GF12Q-II

GF12Q-III

GF12Q-IV

GF12Q-V

GF12Q-VI

GF12Q-VII

Power

2.5  KW

4KW

5KW

9KW

15KW

18KW

32KW

Chamber size

(DXWXH, mm)

300X200

X120

300X200

X200

300X250

X250

400X300

X300

 500X400

X400

500X500

X500

800X600

X600

Dimensions

(WXDXH)

564X615

X905

 564X615

X905

594X625

X975

634X725

X1025

764X877

X1185

940X970

X1300

1110X1050

X1400

Voltage

220V

380V

Phase

Single phase

Three phase

Heating

element

Resistance wire Sweden Kanthal A1 (The resistance wire can be guaranteed for 2 years)

Controller

YUDIAN Controller(Standard)

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit

is automatically cut off when the temperature is over-temperature or broken,

(when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown,

the AC relay on the main circuit will be automatically disconnected,

the main circuit is broken. On, the ON light on the panel is off,

the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is,when the power is turned on after the power is turned off,

the program does not start from the starting temperature,but the furnace temperature rises

from the time of power failure.

5. The meter has the function of temperature self-tuning

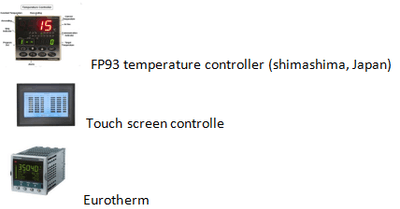

If you want to get an imported temperature controller,

you may have the following choices for replacement with extra fees.



control accuracy

+/- 1 ℃

Trigger

Phase shift trigger

Electrical appliances

Zhejiang Chint

maximum temperature

1200 ℃

Rated temperature

1100 ℃

Thermocouple model

K Type

Heating rate

≤20 ℃/ Min(Can be modified as required)

Recommended heating rate

≤15℃/ Min

Thyristor

106/16E Siemens Germany

surface temperature

≤45℃

Vacuum pump(Optional)



Cover protection system

The furnace is equipped with a travel switch, and the relay will automatically cut off the main power when the furnace cover is opened, effectively ensuring the safety of users
