58L / min Flow, 17K BTU/hr Larger Digital Temperature Controlled Recirculating Water Chiller

Model Number:: TMAX-KJ6200
Input Power:: 800W
Dimension(L*W*H):: 60 X 47 X 89 cm
Net Weight:: About 300 lbs
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

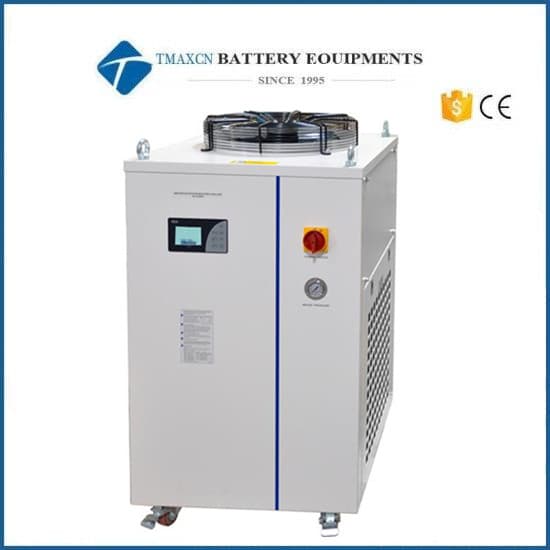

Larger Digital Temperature Controlled Recirculating Water Chiller

TMAX-KJ6200 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed loop systems up to 58L/min ( 15 G/min ). It eliminates scale buildup, sewerage cost, and tap water cooling expenses.
This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy moving. Temperature range can be adjusted from 5 to 35°C.

SPECIFICATIONS:

Power Supply	AC 208 -240V ( 50Hz or 60Hz can be selected in options bar ).
Max Power Input	800W
Cooling Capacity	5004W (17500Btu/hour)
Compressor	Rotary Compressor (1.68 KW)
Refrigerant	R22
Temperature Control	5~30 °C
Temperature Accuracy	± 0.3 °C
Heating Exchanger	Stainless steel
Water Flow Rate (Head Pressure)	58 Liter / minute ( 28 meters high, 40psi )
Water Tank	15 Liters made of stainless steel Water chiller should not be connected to a system with the capacity more than the tank's capacity itself. Use coolant instead of water for longer service life. Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode,mainly pitting, and leak over time.
Pipe Connection	Φ12mm PTC connector 8mm I.D, 12mm O.D. polyurethane tube is included
Water Filter	One water filter is included for immediate use. Replace water filter every 3 to 6 months based on water quality and usage. Please click pictures below to learn more.
Noise	80dBA
Protection	Protected from over-temperature and Min 2 L/min water flow
Overall Dimensions	60 X 47 X 89 cm
Shipping Weight	300 lbs
Compliance	CE approval MET Certification (UL 1450) is available upon request at extra cost, please contact our sales representatives for a quote.
Warranty	One-year limited warranty with lifetime support
Application Notes	Must use Rust Protection coolants to prevent rust and corrosiom The use of tap water is prohibited. Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet tothe equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due towrong water flow direction
