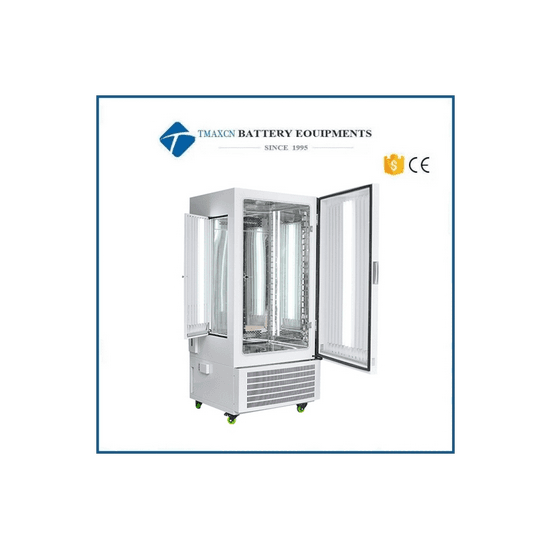

Climatic and Growth Chamber with Cold Light Source&Humidity Controller

Climatic and Growth Chamber with Cold Light Source&Humidity Controller

This
product is suitable for the special equipment for the cultivation and
incubation of various microorganisms in the production, testing and
scientific research of pharmaceutical, chemical, environmental
protection, agricultural and other industries.

Features

1.

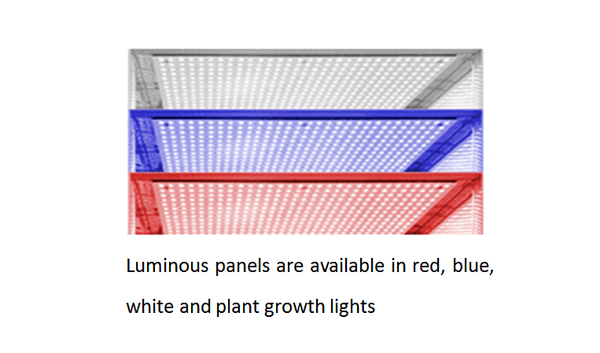

The LED cold light source is used to illuminate, and it generates very
little heat, which makes the temperature in the cabinet more stable.

2.
There is vertical light on the top of the box, and three layers of
light panels make the light at any point in the box more uniform, which
changes the shortcomings of strong light on the two sides and weak light
in the middle.

3.
Stepless dimming: the required illumination is set by the control panel
to increase or decrease the current to change the intensity of the
light, completely changing the disadvantage of changing the number of
lamps before changing the intensity of the light.

4.
The partitions and partitions are used in close cooperation between
each layer, and there is no light interference on the upper and lower
layers.

5.
The light plate (partition) can be adjusted arbitrarily, which is
convenient for the operator to perform various experiments and plant
cultivation.

6.
The incubator door is designed as a double door. The inner door is made
of tempered glass, which can directly observe the culture conditions in
the working room. The outer door is sealed with a magnetic door, which
has good sealing.

7.
Large-screen LCD display, multiple groups of data on one screen,
menu-type operation interface, easy to understand and easy to operate.

8. Touch button, menu operation, intuitive and clear, multiple parameters can be displayed on the same screen.

9.
Mirror stainless steel liner, four corners semi-circular arc
transition, no need to use tools to remove the partition or partition in
the cabinet, which is convenient for studio disinfection and cleaning.

10.
The parameters set by the user can be automatically stored in the event
of a power failure, and the original setting program will be run after
the power is turned on.

11.
The program controls the temperature, humidity, light intensity, time
and heating rate, and can be controlled by multi-step ladder program,
which simplifies the complicated test process and truly realizes
automatic control and operation.

12.
When the light cultivation box and artificial climate box fail, the LCD
screen displays a fault message, and the operation failure is clear at a
glance.

13.
The use of branded compressors and independently developed compressor
cooling systems can effectively extend the life of the compressor.

14.
Using JAKEL tube-flow circulation fan, with uniquely designed air duct
structure, a good air circulation system is manufactured to effectively
ensure the temperature uniformity in the box.

15.
Independent temperature limit alarm system, and audible and visual
alarm prompt the operator to ensure safe operation without accidents.

16. The temperature is too high or too low.

17.
Equipped with auxiliary temperature controller to ensure that the
product can work normally (for heating) when the main temperature
control is out of control.

18.
Use well-known brand humidity sensor and self-designed built-in water
tank electric heating tube humidification system to effectively
guarantee humidity deviation.

19.
The bottom of the left side of the box is equipped with a detachable
lower sensor that controls the water level of the humidifying water,
which is convenient for the operator to view and repair.
