Low Temperature Fully Automatic Vacuum Spray Drying Machine

Low Temperature Fully Automatic Vacuum Spray Drying Machine



This lab scale 1.5L mini spray dryer machine Mainly used in Colleges and universities, research and food, biological, beverage, chemical, materials, pharmaceutical and other enterprises laboratory research and development and production of particulate trace powder, of all solutions such as emulsion, suspending liquid with broad applicability, applicable to on the heat sensitivity material drying such as biological products, biological pesticide, enzyme preparations, because of the ejected material only in the spray into mist particle size is affected by high temperature, so just an instant heating, can keep the active material in the dry still maintain the active ingredients can not be damaged.

Technology Parameters

Moisture evaporation rate	1500-3000ml/h	Spray system	With standard 0.75mm double-fluid nozzle
Output powder size	5-80μm	Nozzle size	0.5-2.5mm for choosing.
Inlet temperature range	30℃-300℃	Jet dredge	Striker frequency variable in the range of 0-20S
Outlet temperature range	30℃-140℃	Spray/hot air flow direction	The same direction,down
Heating temperature accuracy	±1℃	Heater power	3KW 220V
Drying time	1.0-1.5S	Total power	3.8KW 220V
Peristaltic pump feeding range	50-3000ml/h	Drying chamber size	D300XH600mm
Dry air flow	0-5.5m3/h	Machine dimension	700x600xH1500mm
Max.wind pressure	686Pa	Weight	110KG
Spray air flow		4.2m3/h



Detailed Images

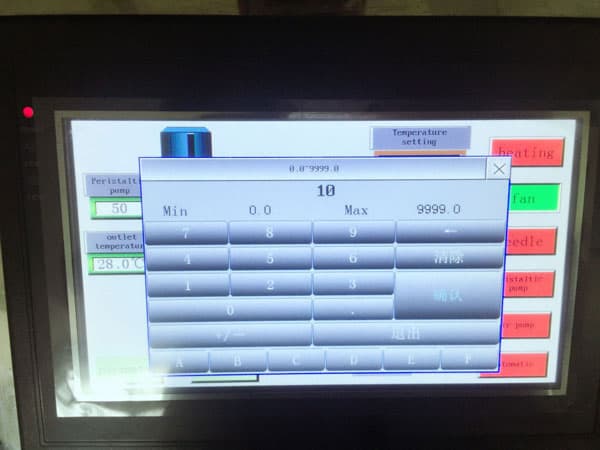

All the data and function are controlled by PLC, English language.
