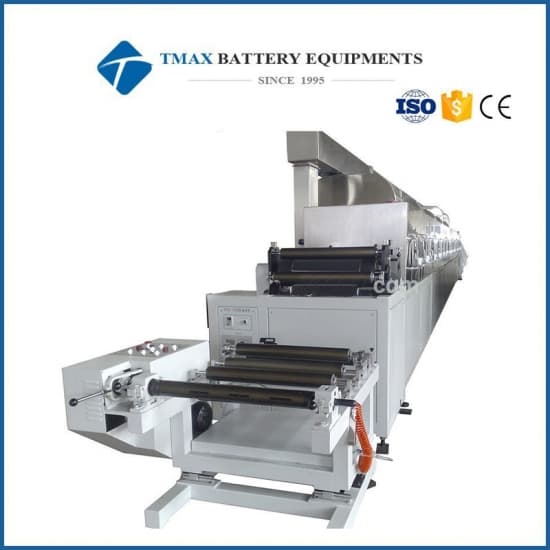

Roller Coating Machine For Lithium Battery Slurry Drying Coater

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

40000W

Warranty

One Year limited warranty with lifetime support

Suitable material thickness

Aluminum foil : 0.01-0.03mm

Max electrode width

400mm

Mechanical tape speed

1-6m/min

Coating speed

0.6~8m/min, adjustable

Air compression

0.5-0.7MPa

Coating mode

Single face continuous and intermittent coating

Equipment length

8.5M (3M*2Section oven+2.5M)

Equipment function

2 Use hot air circulation heating mode, high thermal efficiency
3 Coating method : continuous and intermittent coating
3.1 The first face automatic fixed-length block coating
3.2 The second face automatic tracking the first face composite coating
3.3 Reverse coating interval length distance
4 Coating length : More than 50mm can set clearance or continuous coating
The minimum coating length : 8mm, Minimum interval length : 5mm,
The minimum track length : 50mm
5 Double-sided dry thickness accuracy : ≤±0.003mm
5.1 Both the front and coated alignment error : ≤±0.5mm
5.2 Each length error : ≤±0.5mm
5.3 Each paragraph width error : ≤±0.5mm
5.4 Trailing : ≤±0.5mm
6 Volume release tension can be adjusted continuously : 0~25N
7 Precision rectification controller : ±0.2mm(Re)
8 Core winding diameter : 3 inches, USES the gas rose axis, Max 300kg
9 Baking mode :
9.1 Hot wind drying, hot wind circulation,
9.2 Electric heating,
9.3 Hot air volume can be adjusted, air volume can be adjusted
10 Oven material :
Both inside and outside is made of stainless steel, oven shell thickness is 1.5 mm
