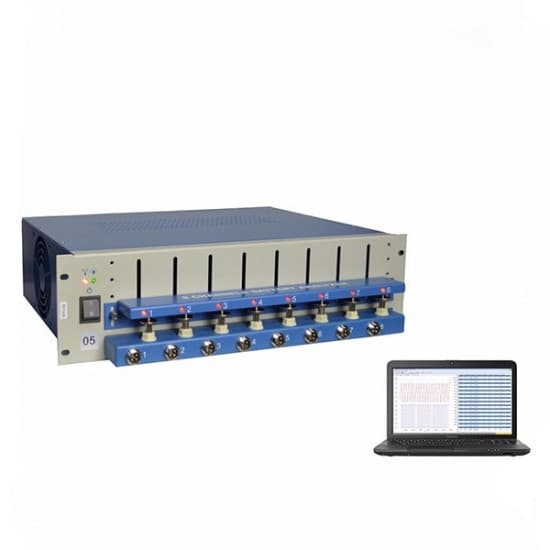

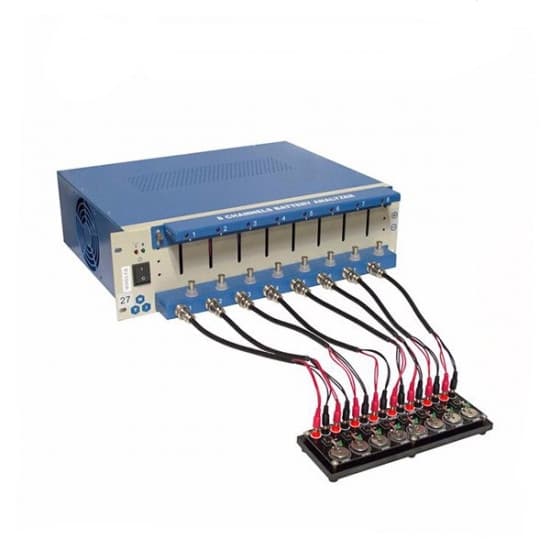

5V2A High Precision 8 Channel Battery Capacity Tester Adjustable Cell Holders & Software

Product Description

1, TOB series BTS is suitable for high accuracy battery detection system:

the comprehensive performance of lithium polymer, lithium ion, nickel metal hydride, nickel cadmium,

lead acid battery test battery materials; research; the formation and separation of small batch

production capacity of battery; notebook computer battery test.

2, The hardware of the system is stable and reliable, each channel has independent

constant current and constant voltage source.

The input power	220 V ±10% / 50 Hz
Range of output current	±2A
Voltage measuring range	5V
Input impedance	≥10mΩ
Power	200W
Current measurement accuracy	±(0.2% of reading + 0.1% of range)
Voltage measurement accuracy	±(0.1% of reading + 0.05% of range)
Current/voltage/time resolution	0.1mA /0.1mV/s
Circulation measurement range	1-9999times
Data recording conditions	TimeΔt (1 ~900s);VoltageΔV (5-5000mV); Electric current ΔI (1.5-3000mA)
The number of channels per unit	8
Volume	197D x 245W x 60H (unit:mm)
Weight	About10kg
