PLC Controlled Dip Coater (1-200 Mm/Min) For Large Substrate Up To 10"X12"

Working Voltage

110/220V AC switchable, 50/60 Hz

Max. Power Consumption

20W

Max Stroke Length

300mm

Maximum Sample Load

7 kg (15.4 lbs)

Standand Panel Size

·         320mm(L) x 270mm(W) x (1-5)mm(Thickness)

Panel Holder

Can hold one or several panels from 1-5mm thickness

Touch Screen PLC Dimensions

6"(L) x 4"(W)

Insertion Speed

1 - 200 mm/minute programmable by Touch Screen PLC

Withdrawal Speed

1 - 200 mm/minute programmable by Touch Screen PLC

Max. Dry and Dwell time

999s

Max. Travel Distance

270mm

Max. Number of
Cycles

20

Speed Stability

+/- 0.05%

Immersion Tank

1 Material: Polypropylene

2 Outside dimension: 350mm(L) x 55mm(W) x 290mm(H)

3 Inside dimension: 320mm(L) x 45mm(W) x 280mm(H)

4 Volume: 2-4L

Product Dimensions

410mm(L) x 356mm(W) x 1000mm(H)

Compliance

CE Certified

Warranty

Two Years limited warranty with lifetime support

Application Notes

1 In order to get better film coating, the substrate shall be treated by plasma
cleaner (Please click on the first picture below for more information)

2 Use ultrasonic processor to disperse nanopowder or homogenize solution to get better coating
(Please click on the second picture below for more information)

3 You may click the picture below -right to order a large dip coater in dry oven

4 You may put the coater into the fume-hood ( pic below right  2)

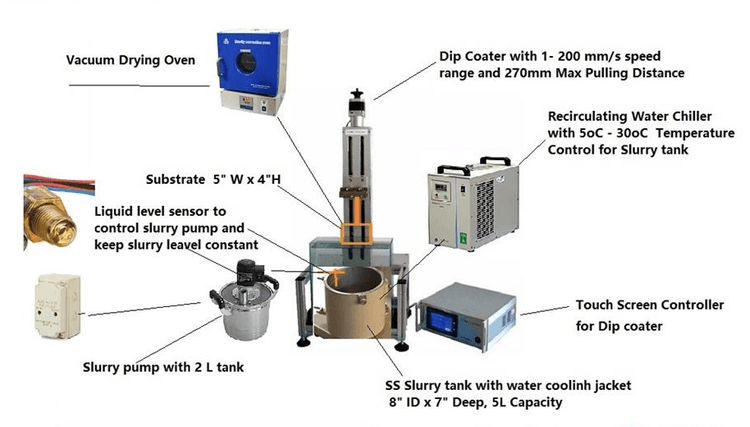

5 The Slurry level control & Slurry Tank Temperate Control are available upon request ( Pic right )

Net Weight

20 kg

Shipping Weight & Dimension

49" x 42" x 47", 158 lb
