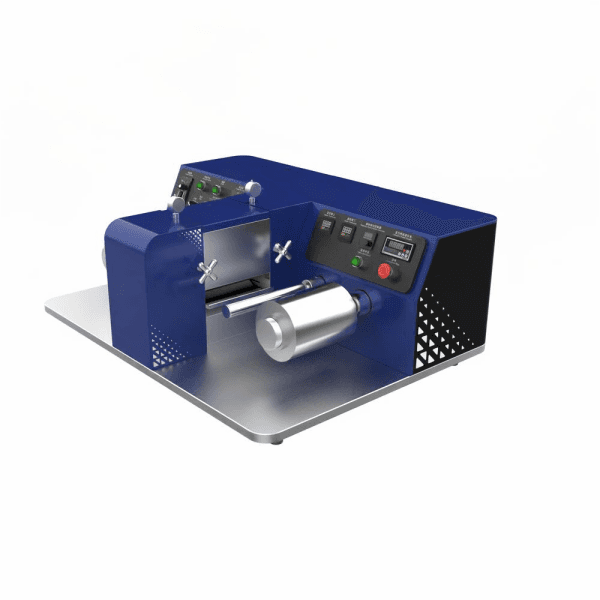

100mm Width Pressure Controlled Electric Hot Rolling Machine with Winding System

100mm Width Pressure Controlled Electric Hot Rolling Machine with Winding System



The Vertical Integrated Heating Rolling Machine is primarily used in laboratories for battery materials, where rewinding and unwinding functions are available to handle full roll pressing. It is also suitable for precious metals (gold, silver) and non-ferrous metals (copper, aluminum). This machine is particularly suitable for thinning and increasing the density of lithium battery electrodes used in clean energy materials. With gear transmission, it enables adjustable rolling thickness, easy operation, and flexible material handling.

Key Features

· Heated rolling system with adjustable temperature control via a digital display.

· Option to choose between heating or non-heating operation, providing flexibility for different applications.

· High hardness rollers, surface coated with hard chrome for HRC62 hardness, ensuring durability and rust prevention.

· Inclined wedge gap adjustment system, offering self-locking stability and high precision in adjustment.

· High rolling accuracy, with roller cylindricity ≤ ±2μm.

· Vertical design to facilitate easy material feeding and pressing.

· Gear-driven system for precise roller compression.

· Adjustable pressing thickness and speed, combined with a sleek and compact design.

· Electric rolling system, supporting automatic forward and reverse rotation for flexible operations.

· Compact size, making it easy to use and highly flexible.

· Integrated rewinding and unwinding system for easy adjustment of material flatness.

· Adjustable and controllable tension for winding and unwinding, preventing material breakage during operation.

Technical Specifications
