Electric Pressing/Roller/Calender Machine For Rolling Electrode

Model Number:: TMAX-DG
Dimension(L*W*H):: Diameter 100/200
Net Weight:: 55kg(180lbs)
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

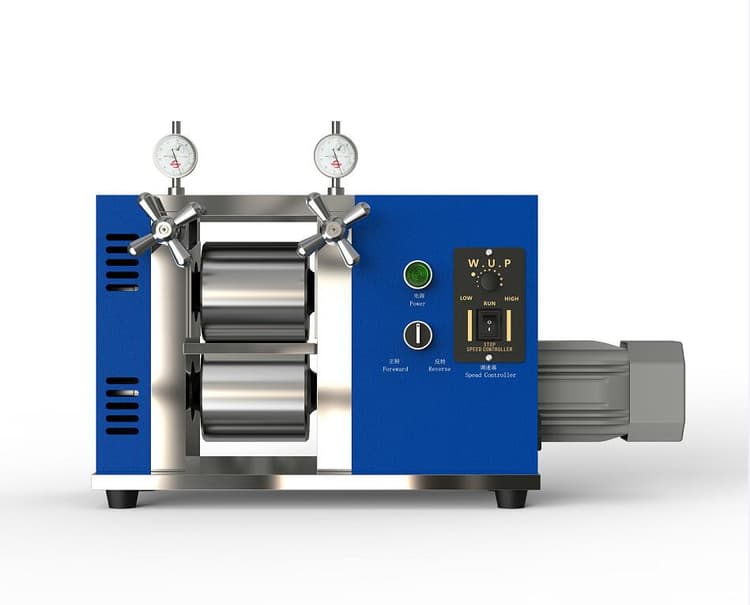

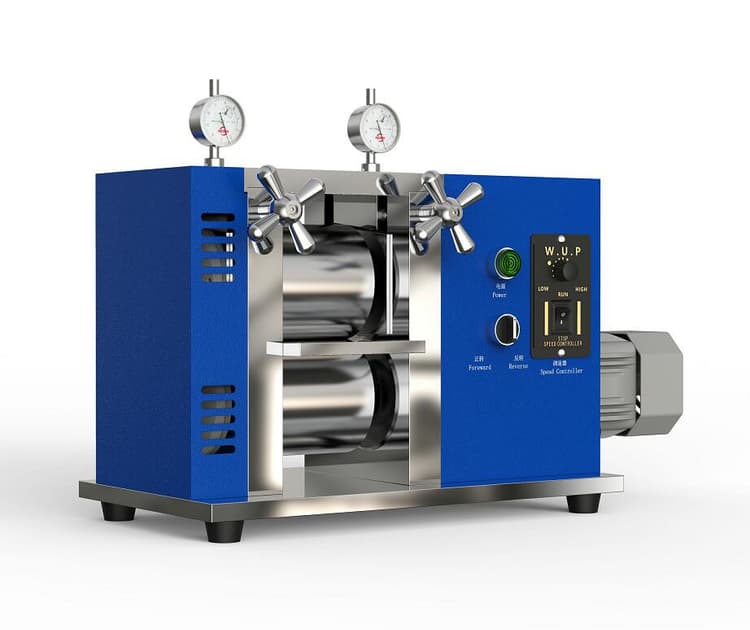

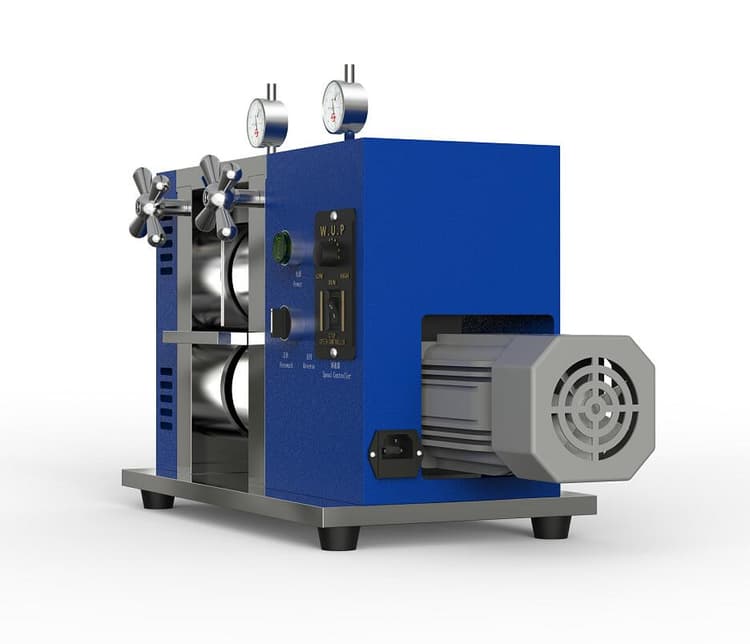

Electric Pressing/Roller/Calender Machine For Rolling Electrode

TMAX-DG100-400 is a UL/CSA ready electric rolling press with variable speed 24DC gear motor and UL certified switch power supply, which can be used from 110V- 220VAC under Argon gas glovebox. It has dual rollers and is an ideal rolling press for preparing electrode sheet for Li-Ion batteries research after coating and drying.

SPECIFICATIONS:

Model	DG100	DG150	DG200	DG250	DG300	DG330	GY200w
Roller Dimensions	96mm(Dia.) x100mm(W)	96mm(Dia.) x150mm(W)	96mm(Dia.) x200mm(W)	96mm(Dia.) x250mm(W)	96mm(Dia.) x300mm(W)	96mm(Dia.) x330mm(W)	200mm(Dia.) x200mm(W)
Working Voltage	110V - 240V AC, 50/60Hz, automatic switch for worldwide use
Roller	1. Roller diameter tolerance: 0.004mm 2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating 3. Rolling Speed: 0-40mm/s adjustable
Roller Surface Hardness	62 HRC Never roll materials with hardness > 50HRC
Compliance	CE Certificate
Warranty	One Year limited warranty with lifetime support
Warnings	1. Never roll materials with hardness > 50HRC 2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended. 3. Multi-step thickness calibration: When calibrating the thickness, make increment/decrement of 0.1mm or 20% of sheet thickness each time. 4. Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion 5. This rolling machine can be used under Ar gas.
