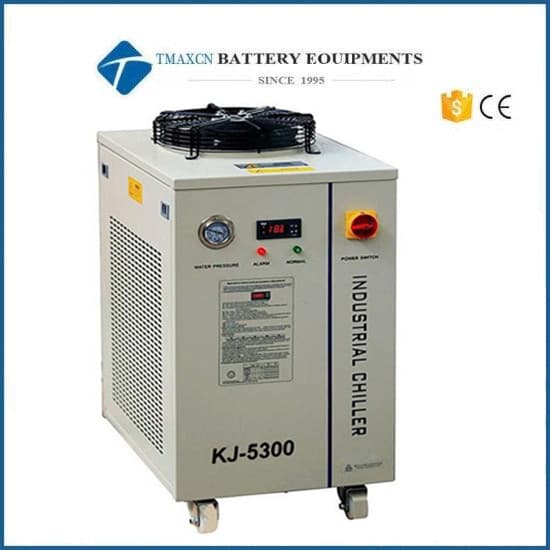

16L/min Flow , 7K BTU/hr Middle Size Digital Temperature Controlled Recirculating Water Chiller

Model Number:: TMAX-KJ5300
Input Power:: 600W
Dimension(L*W*H):: 59 X 38 X 74 cm
Net Weight:: About 50Kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

16L/min Flow , 7K BTU/hr Middle Size Digital Temperature Controlled Recirculating Water Chiller

Middle Size Digital Temperature Controlled Recirculating Water Chiller

TMAX-K5300 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed loop systems up to 16L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy transport. Temperature range can be adjusted from 5 to 35°C.

SPECIFICATIONS:

Power Supply	AC 110V or 220V AC 50/60Hz ( please select in the options bar ).
Working Current	220V: 0.8~4.5A 110V: 1~6.5A
Compressor Power	0.6 KW (0.8HP)
Cooling Capacity	2000W (7000Btu/hour)
Refrigerant	R22/R410-a (650g)
Temperature Control	5~30 °C
Temperature Accuracy	± 0.3 °C
Heating Exchanger	Stainless steel
Water Pump Power	0.1KW
Water Flow Rate (Head Pressure)	16 Liter / minute ( 25 meters high, 35psi )
Water Tank & Water	12 Liters made of stainless steel Water chiller should not be connected to a system with the capacity more than the tank's capacity itself. Use coolant instead of water for longer service life. Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
Pipe Connectors	Φ12mm PTC connector 8mm I.D, 12mm O.D. polyurethane tube is included
Water Filter	One water filter is included for immediate use. Replace water filter every 3 to 6 months based on water quality and usage. Please click pic below to order
Protection	Protected from over-temperature and Min 2 L/min water flow
Net Weight	50Kg
Overall Dimensions	59 X 38 X 74 cm
Shipping Dimensions	48" x 40" x 40"
Shipping Weight	250 lbs
Compliance	CE approval MET Certification (UL 1450) is available upon request at extra cost, please contact our sales representatives for the quote.
Warranty	One year limited warranty with lifetime support
Application Notes	Must use Rust Protection coolants to prevent rust and corrosion. . The use of tap water is prohibited. Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction
