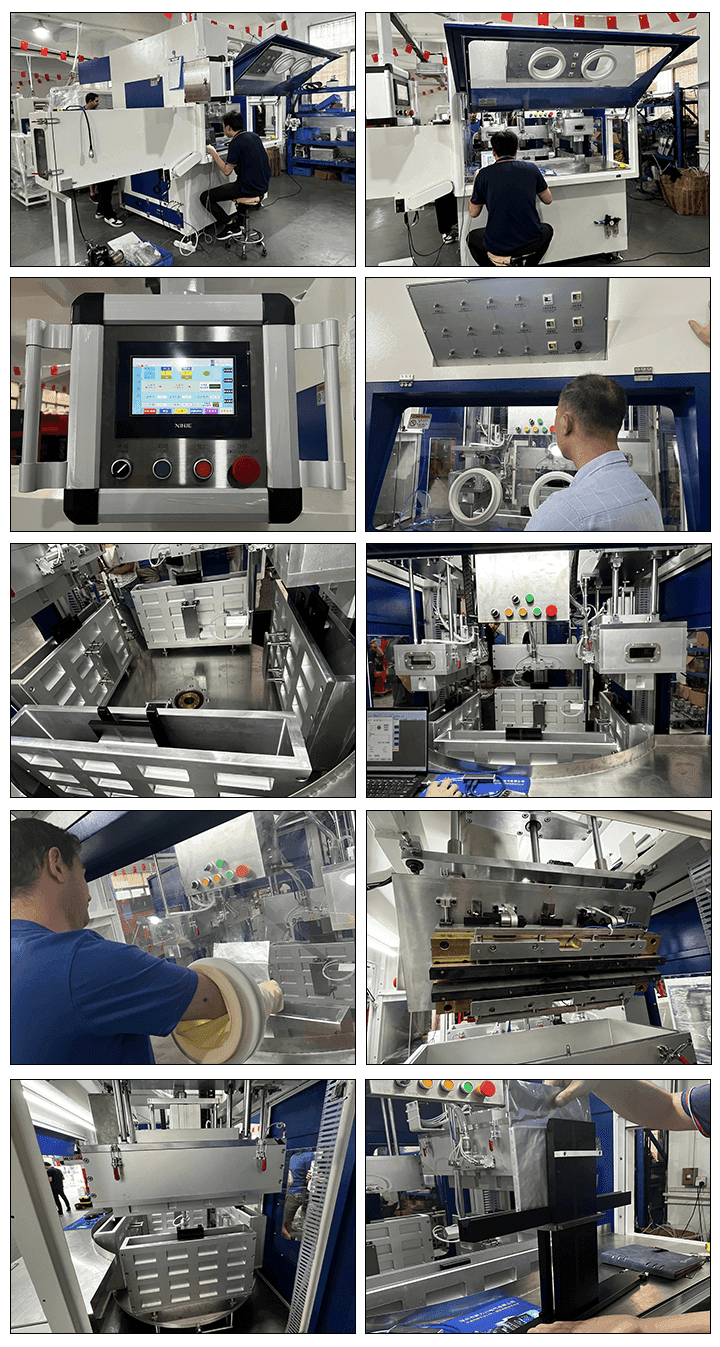

Fully Automated Electrolyte Injection Machine For Pouch Batteries

Fully Automated Electrolyte Injection Machine For Pouch Batteries

Workflow

Specification

Project	Parameters
Resting method	Isobaric static or atmospheric static
Vacuum holding pressure	5KPA value change within 60S
Injection accuracy	Injection volume ≥125g±0.8%; Injection volume <125g±1g;
Production efficiency	≥12ppm
Qualification rate	≥99%
Crop rate	≥98%
Dimension	W10000 × L6500 x H2500mm
Weight/load	>750Kg/M2
Power supply	AC380V three-phase;voltage fluctuation±10%;power:20KW;frequency:50Hz
Compressed air	0.5~0.7Mpa ( 5~7kgf/cm2 ), dosage 600L/min

Model	TMAX-ZTHZYS-150	TMAX-ZTHZYX-300
Cell length	45~150mm	120~300mm
Cell width	35~100mm	80~200mm
Cell thickness	3~10mm	4~12mm

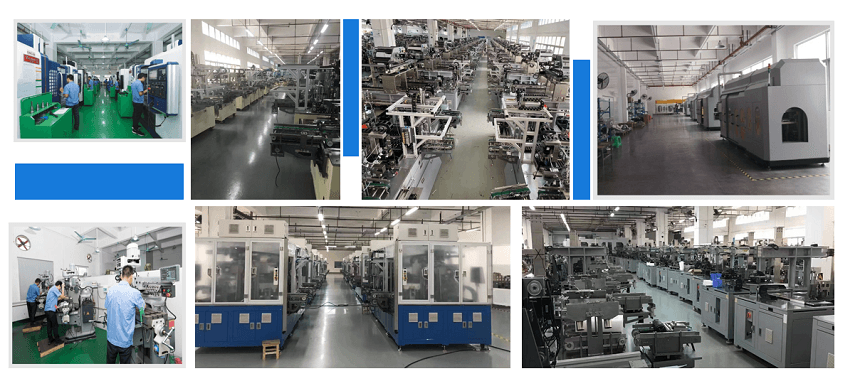

Production Assembly Plant
