0.1mm Thickness Hot Melt Adhesive Tape For Battery Tab
- Model Number:
- TMAX-HMA
- Compliance:
- CE certificate
- Payment:
- T/T, Credit Card, Paypal, LC, Western Union
- Delivery Time:
- 3 Days
- WhatsApp:
- +8618659217588
- WeChat:
- 18659217588
Product Description
0.1mm Thickness Hot Melt Adhesive Tape For Battery Tab
Product Structure
|
Layer Composition |
Connectivity Layer 25μ Functional Layer 50μ Connectivity Layer 25μ |
|
Total Thickness |
100μm |
|
Layer Ratio |
25/50/25μm |
|
Melting Point |
145/165/145℃ |
Product Performance Parameters
| Project | Standard | Measurement Tools |
| Width | X±0.1 Mm | Light Microscope |
| Thickness | 100±10%Μm | Digimatic Micrometer |
| The Thickness Ratio Of Each Layer | A:B:C =1:2:1 | Metallographic Microscope |
| Tensile Strength | ≥ 30Mpa | Universal Test Machine |
| Extensibility | ≥ 500% | Universal Test Machine |
| Packaging Strength With Tab (Metal Band) | ≥2.1N/Mm | Universal Test Machine |
| Packaging Strength With Aluminum-Laminated Film | ≥4N/Mm | Universal Test Machine |
| Packaging Strength After Soaking With Tab (Metal Band) | ≥1.8N/Mm | Universal Test Machine |

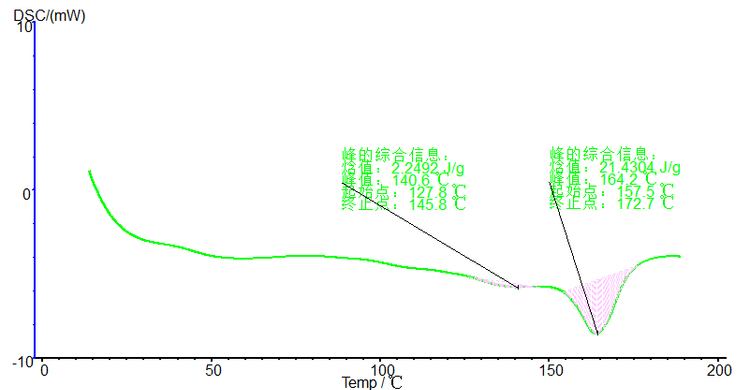

DSC
