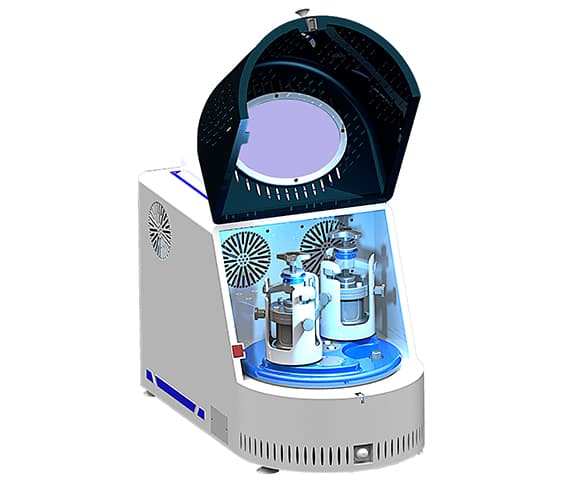

0.2L-0.4L Lab High-Energy Planetary Centrifugal Ball Mill

Model Number:: TMAX-PBM-H
Type:: Planetary Ball Mill Machine
Input Power:: 0.37KW
Dimension(L*W*H):: 570*300*450mm
Max. Loading Capacity:: 0.2L-0.4L
Net Weight:: 35kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

0.2L-0.4L Lab High-Energy Planetary Centrifugal Ball Mill

Characteristic

The high-energy ball mill mainly adopts the principle of planetary mill. The high-speed centrifugal force is used to promote the collision, shearing and dispersion between the medium and the material in the tank. The inner wall of the tank and the ball velocity are different, and the friction force and impact force between the material and the medium are different, and the high energy generated is different. The rotation speed of 1630 turns produces high energy (equivalent to 60 times of gravity acceleration), It is an ideal equipment for high efficiency sample mixing and homogenization or mechanical activation and alloying. It is suitable for geological and mineral, pharmaceutical, mechanical alloying, chemistry, nanotechnology, gold treatment, material research, ceramic, biological, analytical sample preparation, etc.

Product performance

Transfer method	Gear drive
Working method	Two or four ball milling tanks work simultaneously
Maximum sample volume	Two-thirds of the volume of the ball mill
Ball mill tank volume	0.05L-0.1L per tank, total volume 0.2L-0.4L
Feed size	Soil material≤10mm, other materials≤3mm
Discharge size	The smallest can reach 0.1um
Speed ratio (revolution: rotation)	See the main parameters of planetary ball mill for details
Speed (rotation)	See the main parameters of planetary ball mill for details
Speed mode	Brand inverter stepless speed regulation

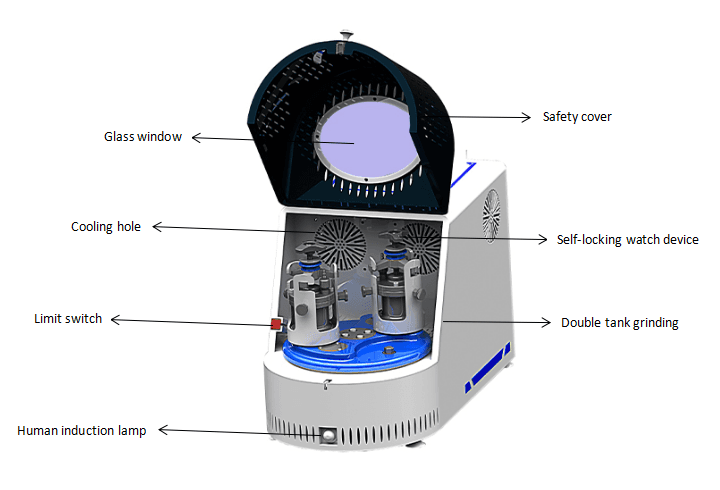

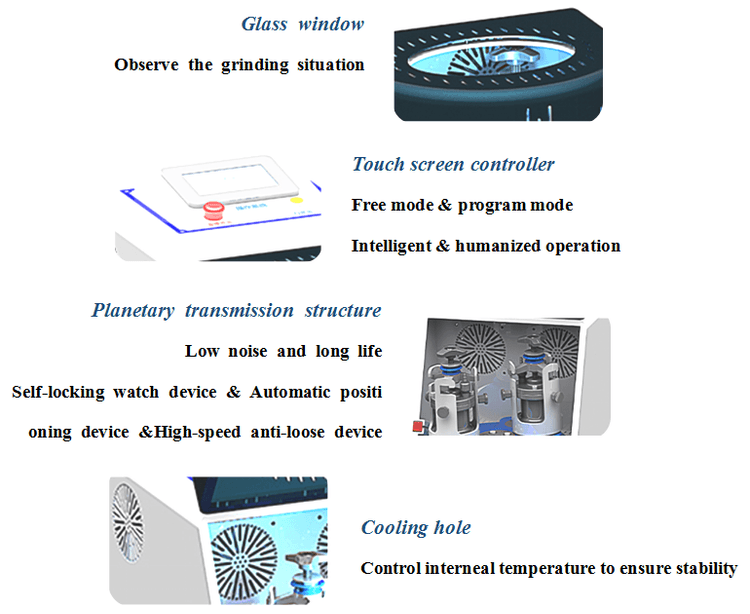

Product Features

ball mill

planetary ball mill

Technical parameters of high energy planetary mill (1)

Model	Specifications (L)	Specification of ball mill can be matched	The quantity	Matching ball mill pot	The ball mill tank is equipped with a locking device
PBM-H-0.4A	0.4	50-100ml	2	It can be equipped with 50ml vacuum ball mill	Self locking

Technical parameters of high energy planetary mill (2)

model	Equipment power (single phase)	Motor power(KW)	Total running time(min)	Alternate operation time(min)	Adjustable speed revolution(rmp)	Self rotation with adjustable speed(rmp)
PBM-H-04A	Single phase 220 V-50 Hz	0.37	1-9999	1-999	47-815	94-1630

Technical parameters of high energy planetary mill (3)

model	Standard panel (intelligent and touch screen optional)	Lubrication mode	Speed control mode	Equipment weight (kg)	Equipment size (kg) l x W x H mm	Noise ≤ DB
PBM-H-04A	ordinary	Lubricating oil	frequency control	Thirty-five	570X300X450	55±5
