1-1580mm Width Tape Roll Cutter Cutting Machine

Model Number:: TMAX-HZX-800H
Type:: Automatic
Dimension(L*W*H):: 3000*1800*1500mm
Net Weight:: 750KG
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

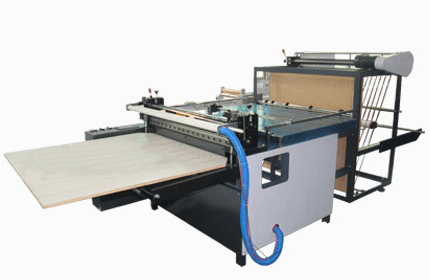

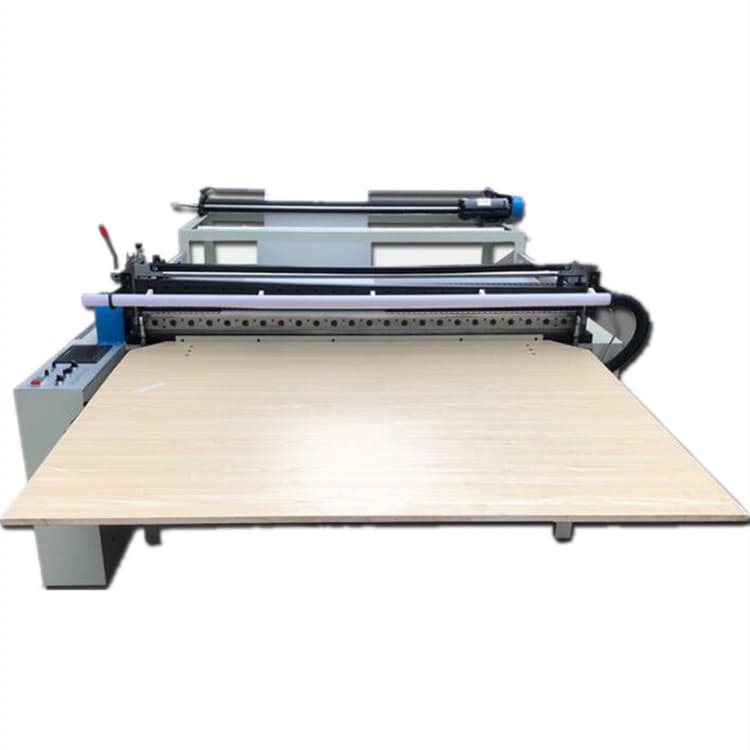

1-1580mm Width Tape Roll Cutter Cutting Machine

Feature

This machine is mainly for the tape rolls were positioned quantitative fixed-length cut, the device uses high-precision stepper motor drive, PLC microcomputer control.

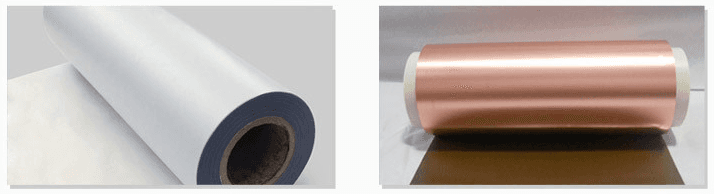

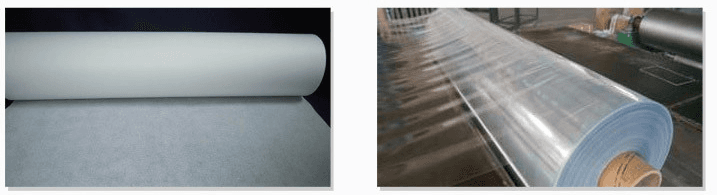

Cuttable materials: PVC film, PE film, non-woven fabric, insulating paper, copper foil, aluminum foil, gold and silver paper, pigment Rainbow paper, positioning laser transfer paper, whiteboard, plastic sheet, etc.

cutting material

Specification

Model	Cutting Tool	Speed (mm)	Weight(kg)	Cutting Width (mm)	Cutting Length (mm)	Precision (mm)	Cutting Thickness(mm)
HZX-800	Upper and lower knives	5-50	800	1-780	5-50000	0.2	0.05-0.6
HZX-1000	Upper and lower knives	5-60	850	1-980	5-50000	0.2	0.05-0.6
HZX-1200	Upper and lower knives	5-70	1500	1-1180	5-50000	0.2	0.05-0.6
HZX-1400	Upper and lower knives	5-80	2000	1-1380	5-50000	0.2	0.05-0.6
HZX-1600	Upper and lower knives	5-90	2100	1-1580	5-50000	0.2	0.05-0.6
