10 - 250 mm adjustable Lab Coating Machine for Lithium Battery Electrode with Dryer

Product Description

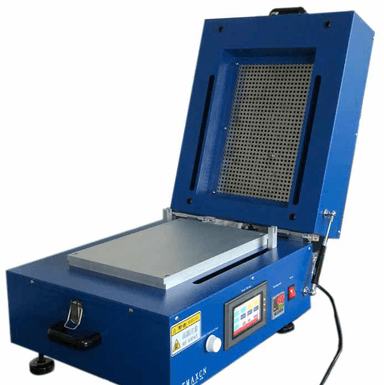

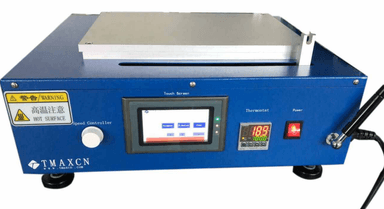

The TMAX-VFC-150B Film coating machine with dryer is used for varies kinds of materials coating.

It is supplied with vacuum pump and heating system, having an precision heating temperature up to 200°C.

The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.

Machine model	Automatic film coating machine with dryer TMAX-VFC-150B
Source voltage	AC110V-240V, 50/60HZ
Power	650W
Coating speed	0-100mm/s, Step-less transmission Accuracy: 10mm/sec
Advantages	Supply with dry function, vacuum pump
Stroke length	10 - 250 mm adjustable by using Adjustable Position Switch
Platform	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 365mm(L) * 200mm(W)*30mm(T)
Slicker width	0-150mm
Slicker adjustable range	0.01-3.5mm
Heating dry system	RT-200°C, Digital temperature controller
Temperature control accuracy	±1°C
Dimension	550310330mm
Weight	About 40kg
Warranty	One Year limited warranty with lifetime support

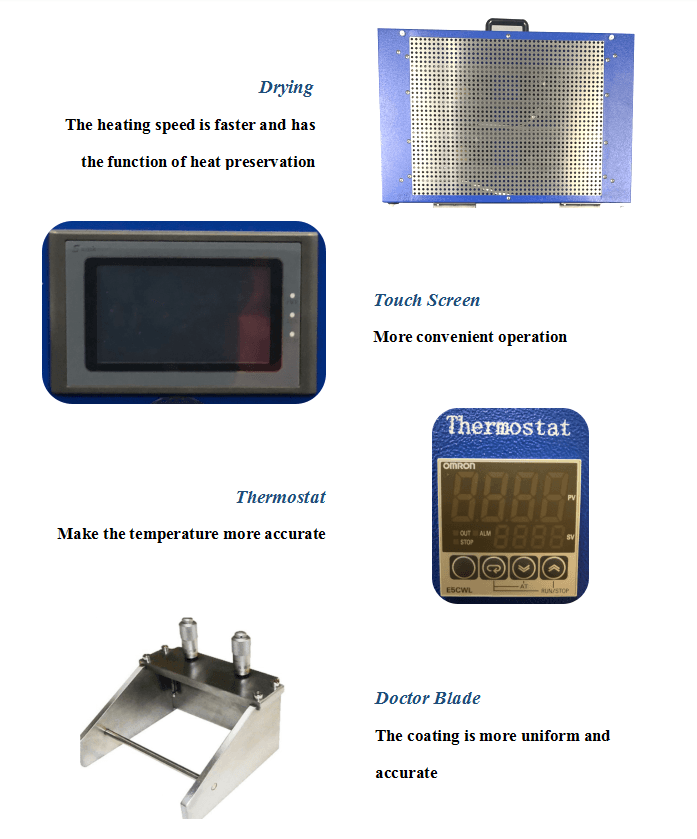

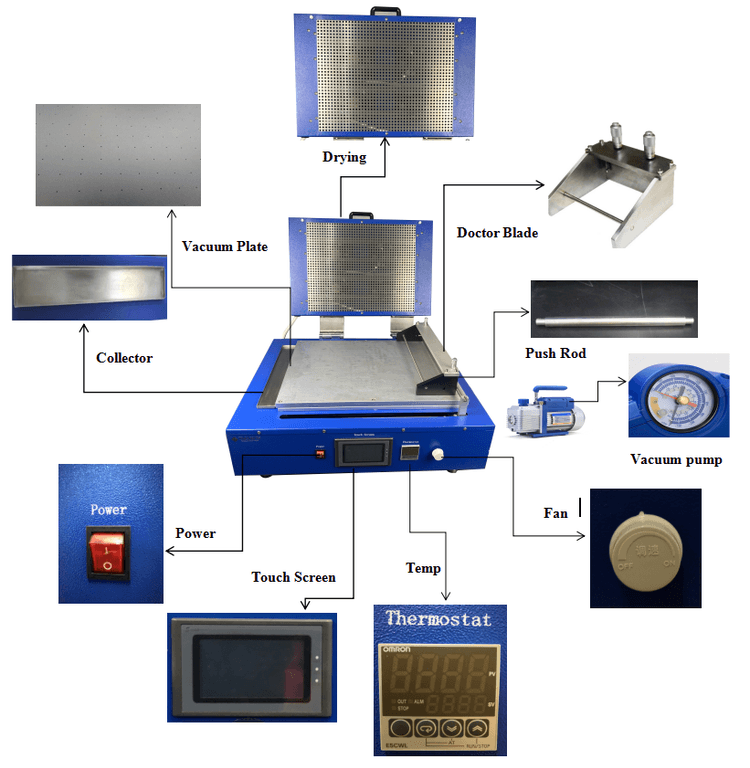

Reference Pictures	1 One oil-less vacuum pump is included for immediate use 2 Heating system : Installed on the top cover Built in digital temperature controller with accuracy of +/-1°C Suspension support helps open cover easily and safely. Max. Heating Rate:10°C/min Max. Heating Temp.:200°C 3 One 150mm width micrometer adjustable film applicator is included Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed
