10-300mm Width Roller Coater for Electrode Coating

Model Number:: TMAX-DYG-135B
Input Power:: 6.5KW
Dimension(L*W*H):: 10 - 300 mm adjustable
Net Weight:: About 1200kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

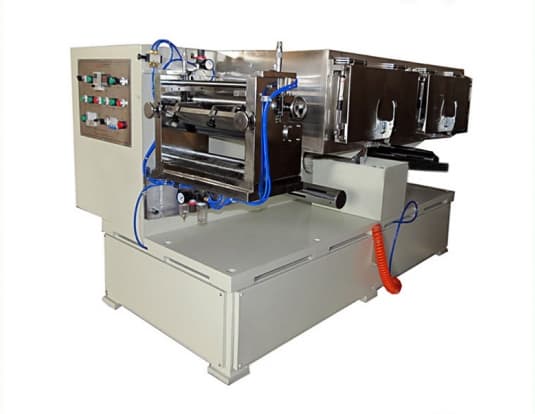

10-300mm Width Roller Coater for Electrode Coating

The lithium battery coating machine TMAX-DYG-135B model coating machine is mainly used for Slurry drying process of lithium battery electrode coating. The battery coating machine adopts continuous coating mode, is mainly used for lithium battery lab research and pilot scale production line.

Model	Battery Coating Machine TMAX-DYG-135B
Source voltage	AC 220V/110V, 50HZ
Power	6500W
Warranty	two year limited warranty with lifetime support
Max electrode width	280mm
Coating speed	1m/min, adjustable
Coating accuracy	≤±0.003mm
Roller diameter	Φ100mm
Max coating roller diameter	Φ300mm
Control pressure	5-50N, adjustable
Dry temperature	RT-150℃, adjustable
Oven length	1.2m
Air compression	0.5-0.7MPa
Coating mode	Single face continuous coating
Application foil	Aluminum foil, Copper foil
Weight	About 1050kg
Dimension(LWH)	18008101300mm
Advantage	1 Scraping system, parts processing precision, slurry contact part stainless steel structure, scraping thickness adjustable. 2 Main transmission adopts frequency control of motor speed, wide speed range speed constant and reliable for the speed control system, constant torque 3 Drying box adopts far infrared heating pipe, high heat efficiency, long service life 4 Using hot air circulation system, can make the temperature uniform, not easy to burn the pole piece 5 Temperature control adopts PID control system, high control accuracy, reliable work 6 The reeling adopts automatic correction system, pole piece coiling system
