1400℃ Atmosphere Muffle Furnace

Model

GF14Q-I

GF14Q-II

GF14Q-III

GF14Q-IV

GF14Q-V

GF14Q-VI

Power

3KW

5KW

7KW

9KW

13KW

18KW

Chamber size

(DXWXH, mm)

160X150X150

200X200X200

300X200X200

300X250X250

400X300X300

500X400X400

Dimensions (WXDXH)

550X515X905

590X555X995

590X655X985

640X655X1035

690X715X1125

834X902X1335

Voltage

220V

380V

Phase

Single phase

Single phase

Three phase

Heating element

Silicon carbide

Controller

YUDIAN Controller(Standard)

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1420 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

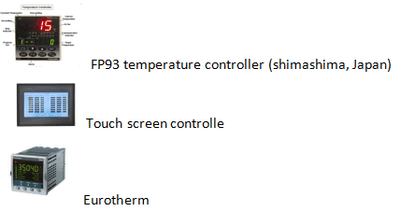

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

Furnace Material

1600 type alumina polycrystalline fiber can choose furnace materials imported from Japan (an additional charge is required when choosing imported furnace materials)

control accuracy

+/- 1 ℃

Trigger

Phase shift trigger

Electrical appliances

Zhejiang Chint

maximum temperature

1400 ℃

Rated temperature

1350 ℃

Thermocouple model

S Type

Heating rate

≤20 ℃/ Min(Can be modified as required)

Recommended heating rate

≤10℃/ Min

Thyristor

106/16E Siemens Germany

surface temperature

≤45℃

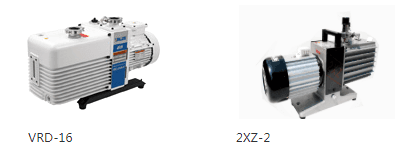

Vacuum pump(Optional)

Cover protection system

The furnace is equipped with a travel switch, and the relay will automatically cut off the main power when the furnace cover is opened, effectively ensuring the safety of users
