1500mL Vacuum Planetary Centrifugal Mixer

Model Number:: TMAX-TP1500S
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

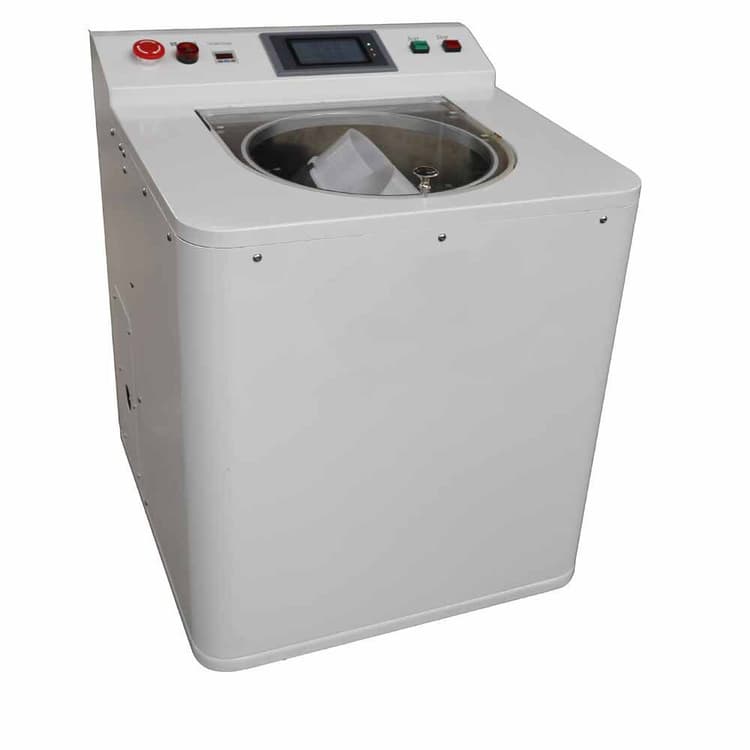

1500mL Vacuum Planetary Centrifugal Mixer

The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.

Applicable industries: semiconductor lighting (LED), photovoltaic, lithium batteries, capacitors, fine chemicals, etc

Applicable materials: various particles (fluorescent powder, chemical powder, metal micro particle, etc.), liquid glue (silica gel, various adhesives, conductive adhesives, printing ink, etc.), metal paste (silver paste, aluminum paste, etc.).

Features

1. When the materials rotate in the container and vacuum at the same time, the high viscosity materials can be stirred, dispersed and defoaming in a few minutes.

2. Spiral bevel gear transmission: its stable and low noise mechanical transmission. The machine has low failure rate and long service life.

3. Overall, the swivel arm is easy to maintain. Our company can provide assembly parts to ensure that customers work 24 hours a day.

4. No pollution and no damage to material properties.

5: According to the requirements of customers, we can customize all kinds of fixtures to meet the requirements of different containers.

Specifications

Model	TMAX-TP1500S
Container Capacity	1500ml*2
The optimal capacity of mixing material	10-1000ml2 or max.3kg2
Operation mode	Touch screen controller
Revolution Speed	100-1500RPM
Rotation Speed	Invariablenes
Vacuum	240L/minute, APROX.-98KPa
Program storage	5 storage programs (each program can be set to five steps)
Protection	Door cover, breakdown, overload
Dimensiom(mm)	600L730W790Hmm
Power	0.5-1.0kW
Voltage	220V/110V, 50/60Hz
Machine weight	150KG
Clamp	Optional

Selectable models

For more model selection info, please check HERE

Types	Model	Single cup volume	Total volume
Single-cup mixer (fixed rotation and revolution speed ratio)	TMAX-TP-300	150ML	150ML
	TMAX-TP-900	450ML	450ML
Two cup mixer (fixed rotation and revolution speed ratio)	TMAX-TP-300S	150ML	300ML
	TMAX-TP-900S	540ML	1080ML
	TMAX-TP-1500S	1000ML	2000ML
	TMAX-TP-4000S	2400ML	4800ML
	TMAX-TP-10000S	5000ML	10000ML
Two cup mixer (rotation and revolution speed ratio, 10~100 adjustable)	TMAX-TP-300SS	150ML	300ML
	TMAX-TP-900SS	540ML	1080ML
	TMAX-TP-1500SS	1000ML	2000ML

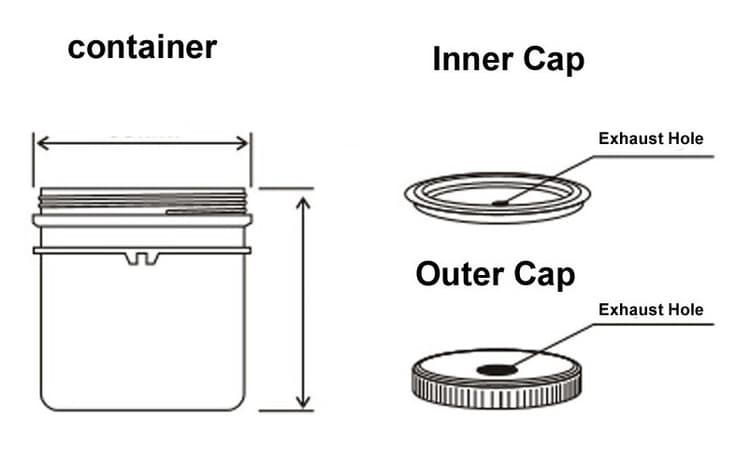

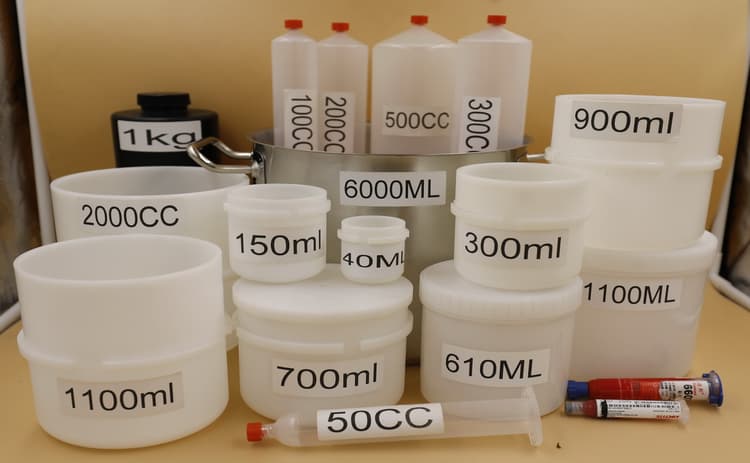

The above capacity is the capacity when the cup is placed in the machine and the material is 5mm away from the cup mouth Selection is mainly to see whether the maximum mixing capacity meets your requirements. We can provide various mixing cup smaller than the machine model to meet the requirements of large machine experiment and small capacity. We also accept custom-made cup and provide suitable fixture accordingly.
