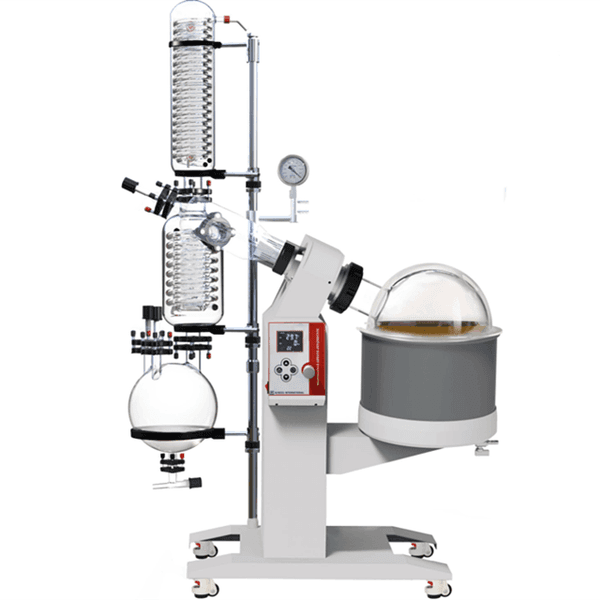

2.6-Gallon/10L Rotary Evaporator w/ Motorized Lift

2.6-Gallon/10L Rotary Evaporator w/ Motorized Lift

Ai SolventVap 10L series rotary evaporators is now ETL
tested to UL/CSA standards. This certification is required by many
municipalities, and it also provides a higher standard of equipment safety and
lifespan. SolventVap comes with all PTFE valves for solvent-resistant
operations. We also lowered the height of assembled unit, for easy installation
and ease of use and storage. Also come with them are vertical glassware and
digital temperature/rotation control. Its optimized bath volume allows for
rapid heat-up times. The condenser unit has specially designed glass tubes that
utilize surface area extremely efficiently. That’s why our SolventVap
evaporators consistently deliver reliable and reproducible process results that
are usually reserved for more costly systems. Another important aspect of the
SolventVap is the safety features, which includes dry-run protection, water
bath over-temperature shut-off protection, and fuse protection.

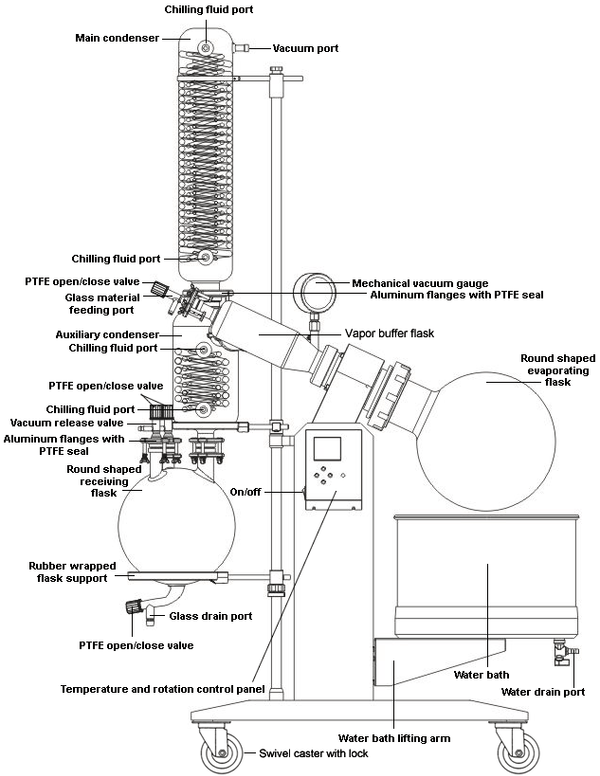

Rotary evaporator features a specially designed motor and
worm gear, which provides constant rotation at speeds from 10 to 130 rpm. As
the flask containing the solvent is rotated, it continually transfers a thin
layer of liquid over the entire inner surface. This gives a very large surface
area for evaporation, which is caused by the gentle heating from the water
bath. The rotating system is fitted with a special seal that allows the
apparatus to be placed under vacuum, effectively reducing the boiling point of
the solvents and removing the vapor phase, making the process much more
efficient. Each unit is also equipped with an easy-to-use vacuum release and a
continuous feed system, which allows solvent to be constantly drawn into the
rotating flask without needing to stop the operation.

Digital water bath operates from ambient temperature to
99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating
coils are located directly inside the pan for the most efficient heating
possible. A built-in overheat protector will shut down power, should the
controller fail.

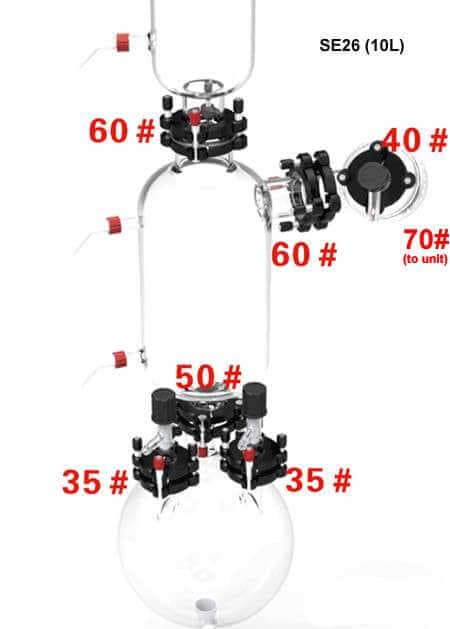

Standard Glassware Set includes 2.6 gallon (10 liters)
round-bottomed evaporating flask, 1.3 gallon (5 liters) round-bottomed
receiving flask, and vertical condenser. Rotary evaporators with vertical glass
condenser are great for distillation of solvents with higher boiling points.

Features

·        UL 61010-1 and CSA C22.2 certified, standard. CE
certification optional.

·        Water bath cover enhances safety by protecting
evaporating flask and the material inside; it gives you uniform temperature
inside evaporation flask as well as energy saving by reducing heat loss. It
also creates a better lab environment by preventing heat and humidity from
escaping.

·        New stronger swivel casters can be securely adjusted to
accommodate uneven floor.

·        Solvent-resistant PTFE and Viton gaskets, ensuring long
time operation.

·        Specialized motor with extremely compact, intermeshed
worm and worm gear provides precise driving for very quiet, vibration-free
operation.

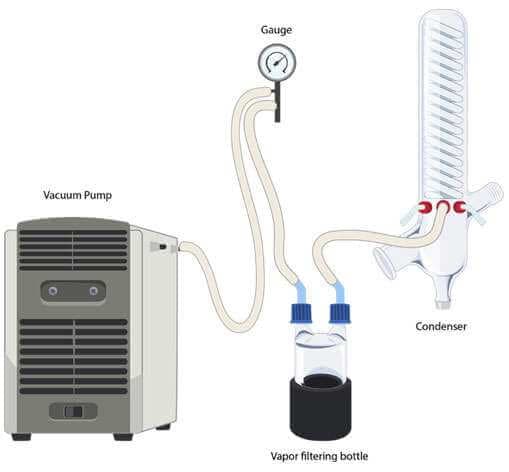

·        Downward-condensing vacuum connection design ensures safe
vacuum operation.

·        Motorized water bath lifting for precise control.

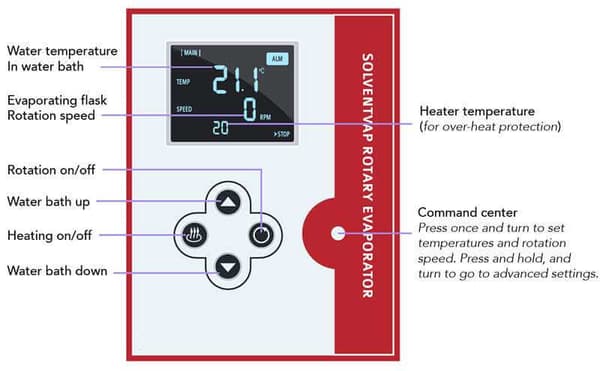

·        Easy, straight-forward visual operation with digital
speed and temperature display.

·        PID temperature controller ensures accurate temperature
control is maintained.

·        One year warranty on rotary evaporator except for
glassware and all sealing gaskets.

Your safety is important to us! Please use caution when operating. Users
of glass reaction equipment must take all necessary precautions to avoid
contact with rotating parts, particularly entanglement of loose clothing, hair,
necklaces, or other jewelry. Under these circumstances, the winding action of
the rotating parts can draw the user(s) into the apparatus, resulting in
breakage of glassware, burns, and/or chemical exposure. Extra caution must also
be taken when operating with air-reactive materials, especially under vacuum. A
leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

A rotary
evaporator is a device used in chemical laboratories for the efficient and
gentle removal of solvents from samples by evaporation. The process of rotary
evaporation is most often used to separate solvents with low boiling points,
such a n-hexane or ethyl acetate, from compounds which are solid at room
temperature and pressure. However, careful application also allows for the
removal of a solvent from a sample containing a liquid compound, if there is
minimal co-evaporation (azeotropic behavior) and a sufficient difference in
boiling points at the chosen temperature and reduced pressure.

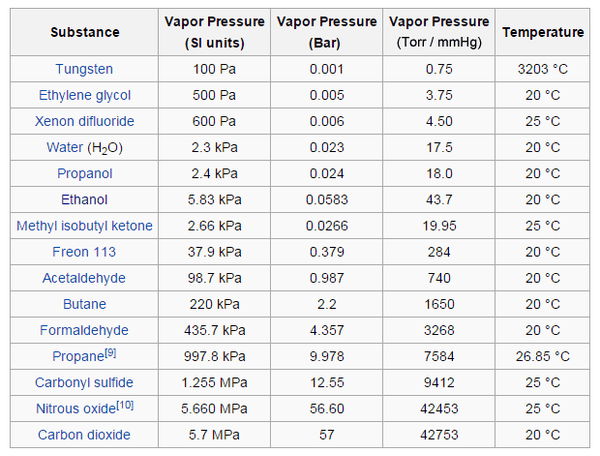

Example:The following table is a list of a
variety of substances ordered by increasing vapor pressure (in absolute units).



Standard
package
