2" Vertical Tube Furnace Up to 1100C Programmable Dip Coater ( Bridgman ) with Atmosphere Controlled

Model Number:: PTL-HT
Dimension(L*W*H):: 560mm(L) x 470mm(W) x 1435mm(H)
Net Weight:: 105kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

2" Vertical Tube Furnace Up to 1100C Programmable Dip Coater ( Bridgman ) with Atmosphere Controlled

PTL-HT is a CE Certified Programmable Dip Coater with 2" Tube Furnace and color touch screen controller. It is designed for R&D Lab to prepare various optical or epitaxial films from the liquid solution under a controlled temperature and atmosphere environment. Dipping rate, pulling rate, dwell time and life cycle can be set up via the touch screen control. The solution is located at the bottom of the sealed tube at room temperature, and the sample can go through a hot zone up to 800oC (to protect the stainless steel wire and sample clamp) under various gas atmosphere or vacuum for achieving high-quality epitaxial films.

1. This furnace can be modified into a Bridgman vertical furnace, Please read the related article and application note below.

2. Please view "Broad temperature plateau for high ZTs in heavily doped p-type SnSe single crystals" published by Energy & Environmental Science, in which an MTI Verticle Bridgman Cyrstal Growth Furnace was used for the thermoelectric material SnSe Single Crystal Growth.

SPECIFICATIONS:

Dip Coater	1. Working Voltage: 110V AC （ or 220V ) 2. Max. Power Consumption: 50W 3. 6"(L) x 4"(W) Touch Screen Display 4. Three stages pulling speed control 5. Total stoke length: 620mm 6. Pulling Speed: 1-200 mm/min programmable with accuracy of +/- 0.05% 7. Dwelling time at constant temperature zone: 1-999 seconds
Tube Furnaces	Working Voltage: 110V AC or 220V Max. Power Consumption: 2KW Tube size: 2" (OD) x 24"(L) Heating Zone Length: 12" (300mm) Max. heating temperature: 1200°C Continuous working temperature: 1100°C 30 segment progtammable digital temperature controller Note: Max. working temperature for dip coating is limited by pulling wire Included stainless steel wire Max. working temperature < 800°C Ni-Cr-Al wire ( not included ) Max. working temperature < 1100°C Platinium wire ( not included ) Max.working temperature 》 1200°C ,《 1600°C
Pulling wire 800C pulling wire (Ni-SS)	Three sets of Ni-SS pulling wire are included (pic to the left). Max. working temperature is 800C. Optional pulling wire for higher working temperature: 1. Ni-Cr-Al wire max. working temperature: 1100C 2. Platinium wire max.working temperature: 1200 - 1600C
Stage Length	1. Lower Stage (Pre-heat zone): 236mm 2. Center Stage (Constant temperature zone): 150mm 3. Upper Stage (Cooling zone): 234mm
Product Dimensions	560mm(L) x 470mm(W) x 1435mm(H)
Compliance	CE Certified
Warranty	Two Years limited warranty with lifetime support

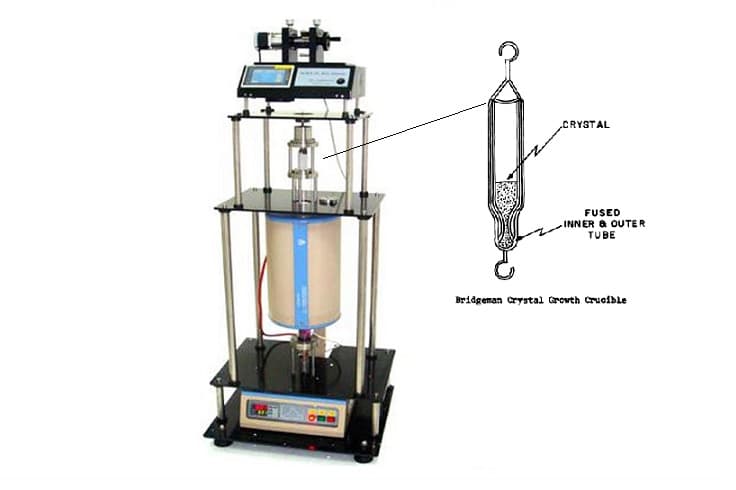

Application Notes	1. In order to get better film coating, the substrate shall be treated by plasma cleaner 2. Use ultrasonic processor to disperse nano powder or homogenize solution to get better coating 3. This furnace can be modified into a Bridgman vertical furnace using a quartz capsule as picture below right
Accessories	Purchase more 75ml solution beaker
Net Weight	105 kg (230 lbs)
Shipping Weight	137 kg (300 lbs)
Shipping Dimensions	48"(L) x 45"(W) x 70"(H)

STANDARD PACKAGE:

Item	Description	Qty
1	Dip Coater	1
2	Furnace with 2" quartz tube and flanges	1
3	LCD programmable controller	1
4	800ºC Stainless Steel pulling wires	3
5	Beakers	2
6	High-Temperature Alloy Sample Holder (installed in the machine)	1
7	Power cord	1
8	Screwdriver	1
