200C Lab Flat Slot Die Coater Machine For Solar/Fuel Cell Film Coating

Model Number:: TMAX-MSK-AFA-H500SD
Net Weight:: 30kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

200C Lab Flat Slot Die Coater Machine For Solar/Fuel Cell Film Coating

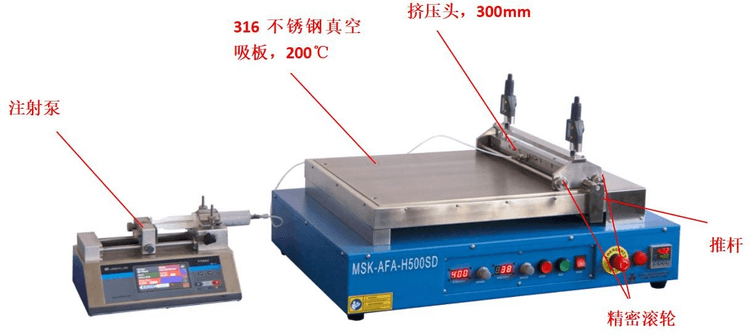

It is a flat plate extrusion coater with a 500mmLX400mmW vacuum suction cup and bottom heater, which can coat films between 5-100 microns thick onto a 400mm L x 380 mmW flat plate by means of a special extrusion head fixture. The bottom is equipped with four precision rollers to make the extrusion coating uniform and low cost. It is a good equipment for studying perovskite solar cell film, fuel cell proton exchange film and battery electrode.

Specification

Power	Voltage: 208-240VAC single-phase 50/60Hz 3000W
Coater	SS316 Vacuum suction plate <1.0mm Vacuum suction plate size: 500mm(L) x 400mm(W) The maximum heating temperature of the vacuum suction plate is 200℃ Vacuum pump includes moving speed: 1-100 mm/s (adjustable) push rod travel: 10-400 mm (adjustable) Vacuum pump is not included in the standard equipment, mechanical pump can be purchased in our company
Slot die head &Mobile support	A 300mm wide extrusion head mounted on a roller type mobile bracket (Figure 1) The push side pushes the roller type moving frame, moves with the extrusion head, and squeezes the slurry onto the base very smoothly, without the extrusion head and the mobile support touching the base. (left photo) The gap between the extrusion head and the base is adjusted by 2 digital dial gauges, and the adjustment accuracy is ± 1um (Figure 2) Multiple extrusion heads can be customized according to customer requirements and fixed on the roller type moving frame (Figure 3-4)
Injection pump	Color touch screen, easy to operate The key is equipped with indicator light, and the working state is clear Applicable syringe size: 10ul-140ml Syringe protection and blocking alarm Maximum pump speed: 173mL/min (140mL) Maximum travel 140mm Stroke control accuracy: error < ±0.35% (stroke > 30% maximum stroke) Maximum rated linear thrust: > 20kgf
Optional part	Extrusion coating is used to obtain better coating effect. Viscosity and dispersion of slurry are very important. Viscosimeters (FIG. 1) and small dispersion meters (FIG. 2) can be purchased from our company.
Dimensions	740mmL×500mmW×420mmH
Net weight	90kg
