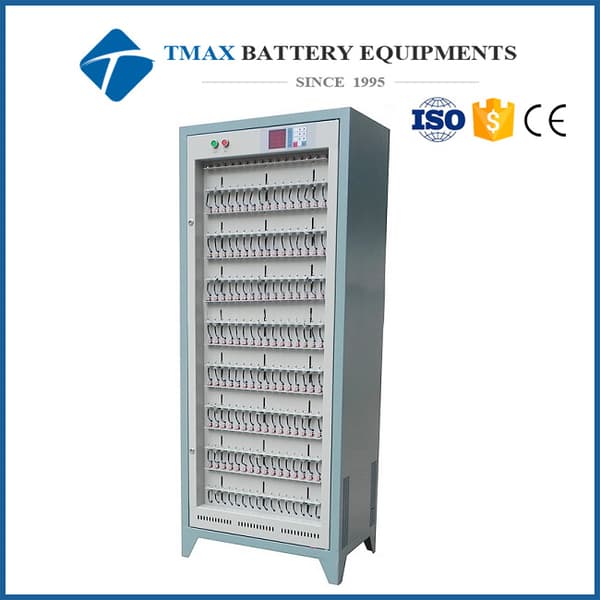

256 Channel Li ion Battery Pouch Cell Charge Discharge Tester Maachine For Polymer Battery

Model Number:: TMAX-256-C
Dimension(L*W*H):: 800*550*1900mm
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

256 Channel Li ion Battery Pouch Cell Charge Discharge Tester Maachine For Polymer Battery

SPECIFICATION

1.This equipment is mainly constituted by the
computer system and control software, communication interface and battery
detecting cabinet. The Battery detecting cabinet comprises a fixture and placed
the plate body of the fixture, charging, constant current and constant voltage
source discharge constant current source, storage control
circuit, current sampling circuit, voltage sampling circuit,the main control
CPU, data memory, microcontroller programming and control panel.

Model	TMAX-256-C
Voltage supply	AC 220V ±5% 50HZ
Max Power Dissipation	4500w
Channel	256
Dimension	8005501900mm
Support battery height range	10-95mm( stepless adjustment)
Clamp spacing	35mm
Voltage measurement range	DC100-4500mV
Voltage accuracy	±0.1%FS ±0.1%RD
Voltage measurement range	DC100-4500mV
Voltage resolution	1mV
Constant voltage range	DC2000~4500mV
Minimum discharge voltage	2000mV
Charge discharge current range	DC5~2000mA
Current accuracy	±0.1%FS ±0.1%RD
Current resolution	1mV
Time measurement range	999min/step
Time measurement error	±0.1%
Working temperature	0~40 ℃
Relative humidity	≤85%
