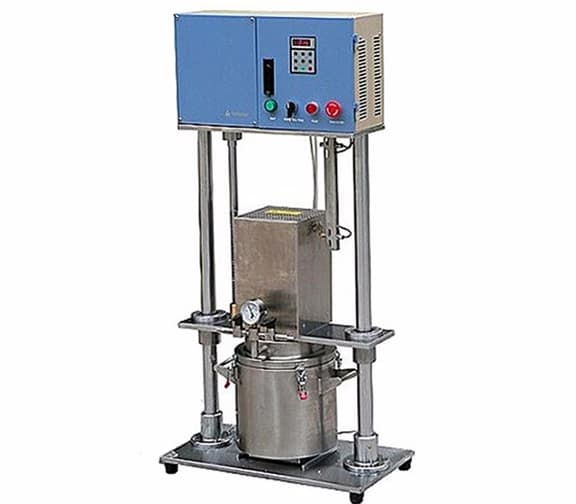

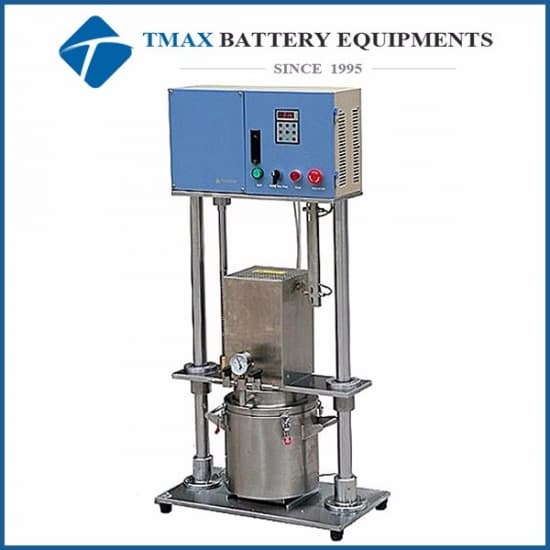

5-30 L Vacuum Planetary Mixing Machine With Programmable Function

Model Number:: MSK-SFM-6E
Type:: Planetary Mixing Machine
Max. Loading Capacity:: 5-30L
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

5-30 L Vacuum Planetary Mixing Machine With Programmable Function

1 MSK-SFM-6E vacuum mixing machine is designed for making large batch of
chemical compound via blending and mixing in single container under vacuum
driven by electricity only.

2 The vacuum mixing machine is programmable in speed, time, and
rotating direction, and water cold stainless steel tank promise high efficient
in mixing.

3 The MSK-SFM-6E vacuum mixing machine is excellent for preparing LiCoO3,
LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed
material results in the better dispersion and uniformity.

Model	Planetary mixing machine MSK-SFM-6E
Features	5 liter 304 stainless steel container with double layer water cooling jacket. Advanced T type sealing to keep vacuum pressure up to 12 hours. Double Step Rotary Vane Vacuum Pump, is included for immediate operation Container is opened or closed by electric motor ,no air pump is required any more Programmable controller to set time, speed, rotation direction.
Voltage	110-240V AC single Phase, 50/60Hz build-in frequency converter to ensure the mixer can be used under 50 or 60 Hz
Rate Power	900 W
Rotor Rod Speed	0 -1500 RPM variable
Lifting	Electric motor ,no compress are pump required any more
Water Requirement	16 L/min water flow required to cool mixing tank Cooling water 1/4'' Inlet and outlet on the back of the mixing tank ,with build-in cooling jacket Suggest you order recirculating water chiller by click picture picture left to save water ,water chiller is not included
Vacuum Pump	Double Step Rotary Vane Vacuum Pump, is included Vacuum gauge is built in with minimum vacuum level -0.1 MPa
304SS Container Size	270mm O.D. x 210mm I.D. x 230mm H
Dimensions	600mmLx 350mmW x 1400mmH
Net Weight	130kg
Warranty	Two year limited warranty with lifetime support
