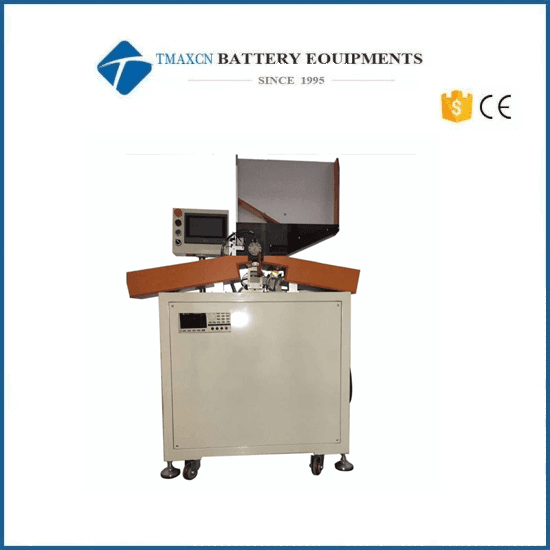

5 Channel Automatic Battery Sorter Sorting Machine for Cylindrical Cell

5 Channel Automatic Battery Sorter Sorting Machine for Cylindrical Cell

Model Number:
TMAX-FN-5
Type:
Automatic
Input Power:
900W
Dimension(L*W*H):
1120*880*1250
Net Weight:
200kg
Compliance:
CE Certified
Warranty:
Two Year Limited Warranty With Lifetime Support
Place of Origin:
China
Update:
Optional
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
David@battery-equipments.com
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

 5 Channel Automatic Battery Sorter Sorting Machine for Cylindrical Cell

Features:

1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting

2. 5 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 cells

3. Sort by cell's voltage and impedance up to 5 groups

4. Automatic sorting control

5. Fast sorting speed (80PPM)

6. Easy to refill cells during the process

7. Wheels design, easy to move the machine to any operating place

Specifications:

Model

TMAX-FN-5

Voltage supply

220V/50HZ( no need air supply)

Power

<900w

Display screen

Large size LCD screen/Touch screen

Suitable for

18650 battery

Net Weight

<200KG

Internal resistance test

Test range:80mΩ

Accuracy:±0.015% rdg

Resolution:0.01Mω

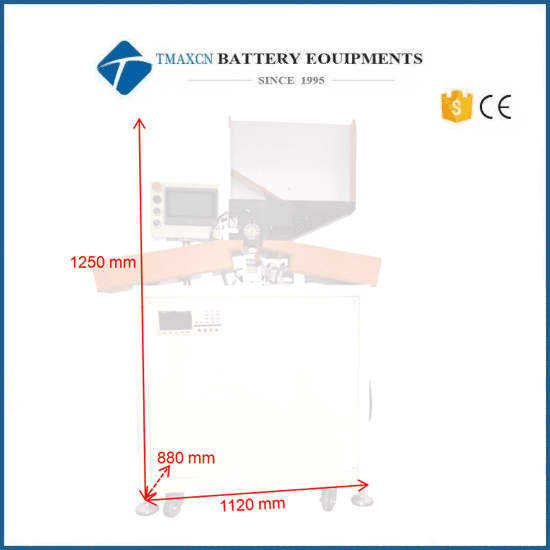

Dimensions

1120*880*1250

Voltage test

Test range0-8V

Accuracy:±0.5% rdg

Resolution:0.01mV

Sorting speed

80PPM
