Product Description

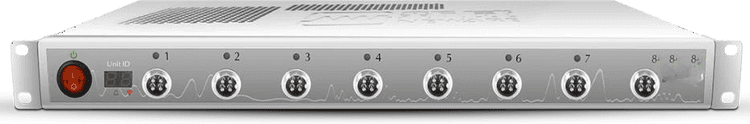

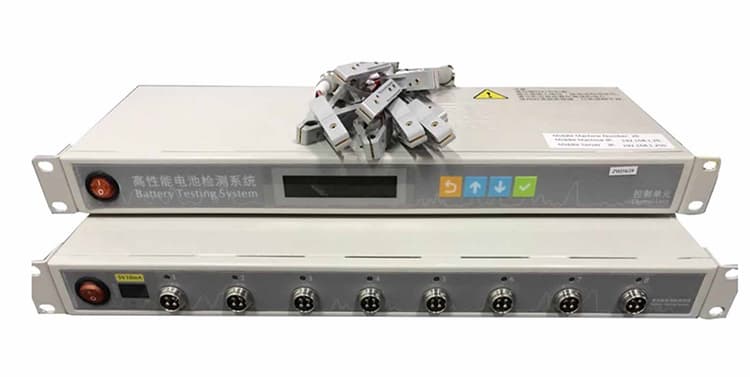

5V50mA 8 Channel Coin Cell High Precision Battery Analyzer with Adjustable Cell Holders & Software Battery Tester

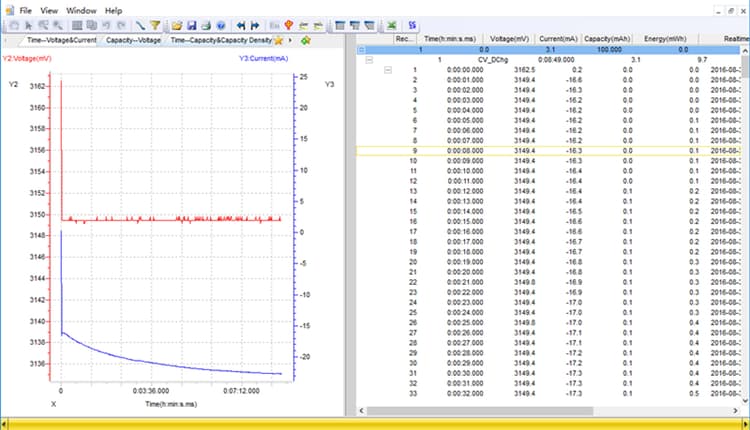

1. TMAX-5V50mA Battery Test Equipment is an eight-channel battery analyzer to analyze small coin cells with a range current 0-50mah, voltage 0-5v. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.

2. This coin cell tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.

3. The coin cell tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.

The triple range greatly improves the accuracy of the battery tester, and more importantly, realizes the CVD (constant voltage discharge) function. At the same time, it also helps customers save costs. At present, there are 5V10mA/50mA/6A/12A to choose from, and more models will be launched soon.

Specifications

Items			Values
Input AC			AC 220V/110V ±10% / 50Hz
Input power			25 W
Resolution			AD：16bit；DA：16bit
Input impedance			≥1G Ω
Voltage	CV output range		25mV~5V
	Min discharge voltage		-5V
	Accuracy		± 0.05% of FS
	Stability		± 0.05% of FS
Current	Output range/channel		Range1: 5μA-1mA; Range2: 1mA-25mA; Range3: 25mA-50mA
	Accuracy		± 0.05% of FS
	CV cut-off current		Range1: 2μA; Range2: 50μA; Range3: 100μA
	Stability		± 0.05% of FS
Power	Output power/channel		0.25	W
	Stability		± 0.1% of FS
Time	Current responsetime		＜500μs (10%FS~90%FS)
	Working step time		≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms)
Data record	Data record conditions		Min data recordinterval:100ms
			Min voltage change：10mV
			Min current change：2μA; 50μA; 100μA
	Frequency		10Hz
Charge	Charge modes		CC、CV、CCCV、CP
	Cut-off condition		Voltage、Current、Time、Capacity、-△V
Discharge	Discharge modes		CC、CP、CR、CV
	Cut-off condition		Voltage、Current、Time、Capacity
Pulse	Charge		CC、CP
	Discharge		CC、CP
	Min pulse width		500ms
	Pulse counts		Up to 32
	Chg and Dischg switch		Supported
	Cut-off condition		Voltage、Time
DCIR	Supported
Cycle	Max cycles		65535
	Max steps		254
	Cycle nest		3
Protection	Safety protection		● Power-off data protection
			● Off-line operation mode
			● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.
Channels feature		Independent pairs of closed loop for constant
Channels control mode		Independent control
Data acquisition method		Kelvin connection
Noise		<85dB
Database		MySQL
Communicatin		TCP/IP
Operating system		Windows 7/8/10 64bit
Data export		EXCEL、TXT、CSV、PDF、Plot/Graph
Disk drive		500GB
Communication port		Ethernet port
Leak Current		0.005μA
Channels per unit		8
Operation and storage environment requirement
Items		Values
Operationenvironment temperature		0℃~40℃ (When the temperature is 25±10℃, the accuracy error caused by temperature change is less than 50ppm /℃)
Storage environmenttemperature		-10℃~50℃
Operation environment humidity		≤70% RH(no moisture condensation)
Storage environment humidity		≤80% RH(no moisture condensation)
Clamps and dimensions
Items		Values
Clamps types		Alligator			Polymer	Coin
Dimensions（WDH）(mm)		1U(164)，48033044
