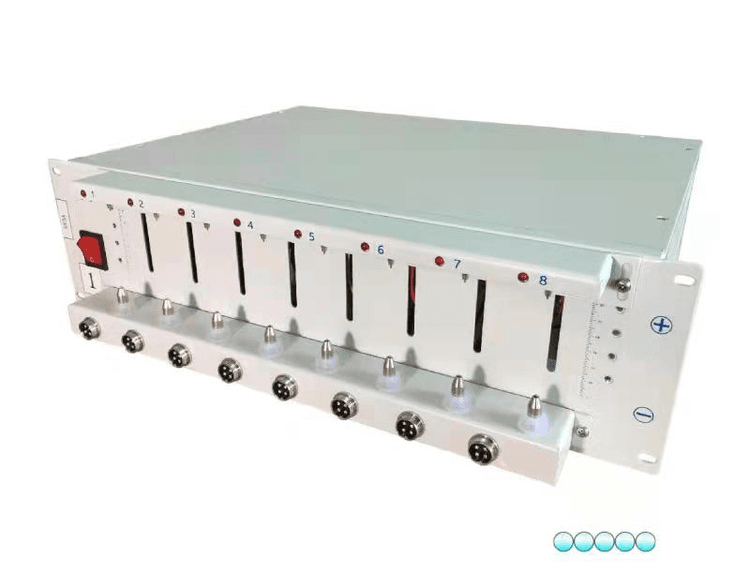

5V6A 8 Channels Lithium Ion Battery Charge and Discharge Analyzer Machine

Product Description

Indicator items			Indicator parameters
Equipment model			TMAX-5V6A8CH
Equipment specifications			5V/6A
Number of device channels			8
Channel control mode			Independent control for each channel, current and voltage four wire system acquisition
Channel characteristics			The constant current source and constant voltage source adopt a dual closed-loop structure
Input impedance			≥ 1M Ω
Current	Current range	Charge	10mV-5V (device port)
		Discharge	0.75V-5V (device port), minimum discharge voltage depends on line length
	Accuracy		±0.05% of FS, RT 15℃-35℃
voltage	Voltage range	Charge	0.02A-6A
		Discharge	0.02A-6A
	Accuracy		±0.05% of FS , RT 15℃-35℃
Power	Single channel output power		30W
	Stability		0.2% of FS
Time	Current response time		≤10ms
Data record	Recording frequency		1Hz
	Data recording conditions		Minimum time interval: 1s
			Minimum voltage interval: 1mV
			Minimum current interval: 1mA
Charge	Charging mode		Constant current charging, constant voltage charging, constant current constant voltage charging, constant power charging
	Deadline conditions		Voltage, current, relative time, capacity, - △ V
discharge	Discharge mode		Constant current discharge, constant power discharge, constant resistance discharge
	Deadline conditions		Voltage, current, relative time, capacity, - △ V
Pulse mode Optional	charging		Constant current mode, constant power mode
	discharge		Constant current mode, constant power mode
	Minimum pulse width		Suggest 5S or above
	Deadline conditions		Voltage, relative time

Indicator items		Indicator parameters
DCIR	DCIR (optional)	Support custom point extraction for DCIR calculation
Cycle	Loop testing	Can set 399 commands and 65535 cycles
	loop nesting	Supports 5-layer loop nesting
Protection	software protection	Support for power-off data protection
		Support continuous startup (with UPS power supply)
		Over voltage protection, under voltage protection, capacity protection, over current protection, under current protection
		Anti reverse connection protection
Data export method		Excel、PDF
Cooling method		Air cooling
Equipment noise		≤50dB
Communication method with upper computer		Network
Overall dimensions		L450W500H140mm
display screen
system requirements		Windows XP and above

Indicator items	Indicator parameters
Operating temperature range	0℃-40℃
Storage temperature range	-10℃-50℃
Relative humidity of working environment	≤ 70% RH (without water vapor condensation)
Relative humidity of storage environment	≤ 80% RH (without water vapor condensation)
Input active power	500W
Input power supply	AC220V ± 10%/50Hz, other power specifications available
Fixture type	Selection of upper and lower thimble fixtures and polymer fixtures
