Auto Lamination Stacking Machine For Lithium ion Battery

Model Number:: TMAX-DP-150
Input Power:: 4KW
Dimension(L*W*H):: 1250*1200*1850mm
Compliance:: CE compliant
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

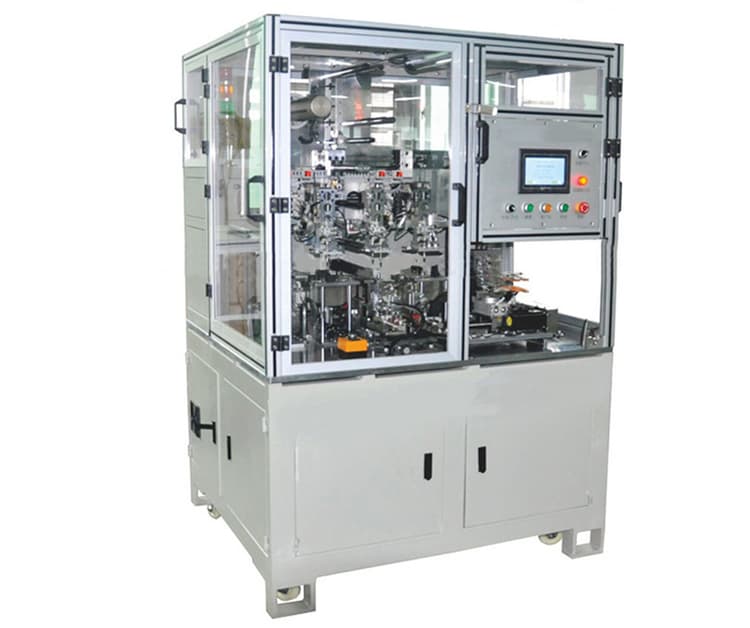

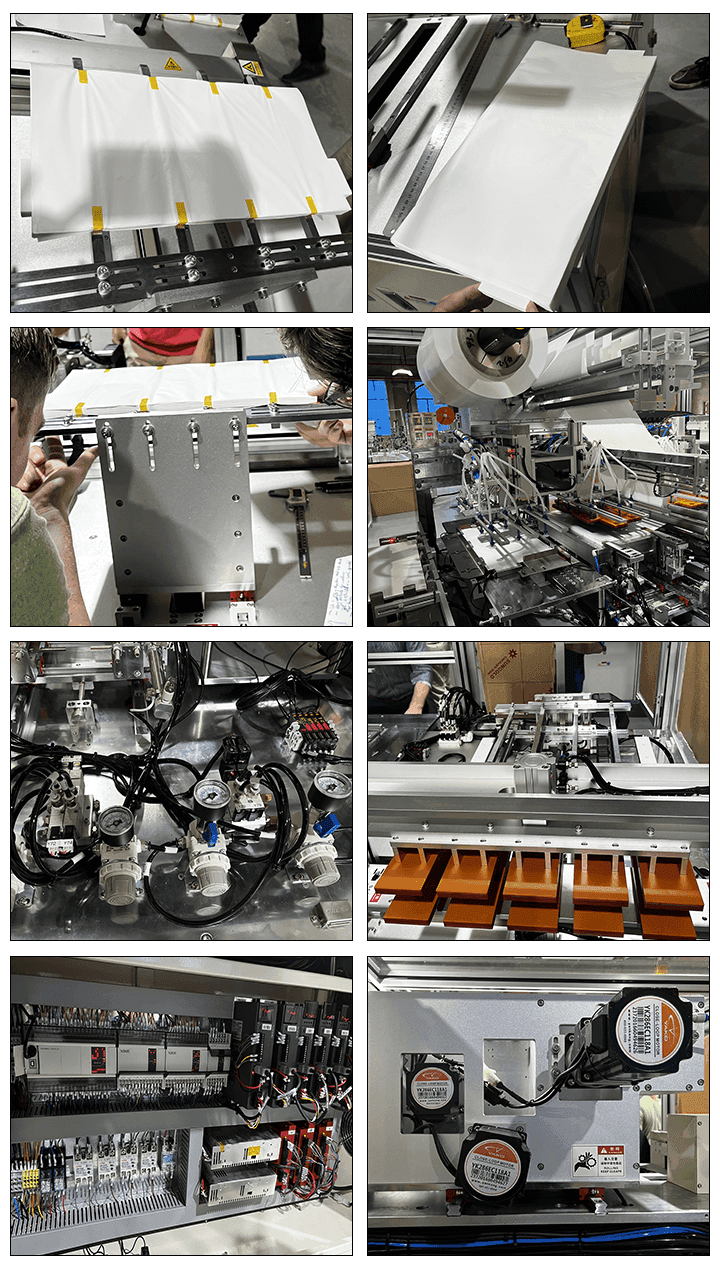

Auto Lamination Stacking Machine For Lithium ion Battery

TMAX-DP-150 is a high-accuracy auto stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. It adopts "Z" glyph laminated.

Advanced Features:

1 PLC Touch Screen Control with easy condition setting.

2 Continuous "Z" fashion stacking with a separator .

3 Auto electrode pick-up & stacking via vacuum suction manipulator.

4 Through four manipulator to remove electrode from material box placed second para platform, after calibration then place on lamination platform, laminated with automatic clamping device on stage.

5 Unreeling rotors for separator film feeding.

6 Auto-tension control for separator film delivery.

Model	auto stacking machine TMAX-DP-150
Suitable battery size	Thickness H (mm)	5-20
	Width W (mm)	30-90
	Length L (mm)	80-150
	Tab length Q (mm)	Q≤20
	Tab width (mm)	≤20
Technology parameter	Stacking speed	1.3-1.5s/pcs
	Registration accuracy	±0.5mm
	Stacking quantity	Can be set
	Percent of pass	≥98%
	Power	4kw
	Weight	800kg
	Dimension (LWH)	125012001850mm
Materials size	Electrode	Length : 80-150mm Width : 30-90mm Thickness : 0.07-0.25mm
	Tab	Length : ≤20mm Width : 8-20mm
	Separator	Length : in roll Width : 90-150mm Thickness : 0.02-0.04mm Inner diameter : φ76.2mm Max out diameter : φ300
