Battery Explosion-Proof Test Chamber For Lithium Battery Safety Testing

Model Number:: TMAX-ZS-1011-2
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Place of Origin:: China
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

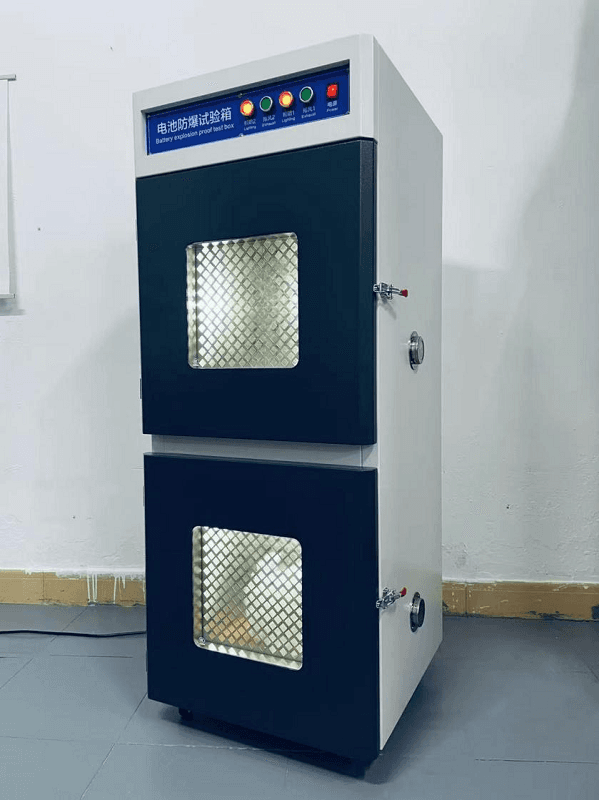

Battery Explosion-Proof Test Chamber For Lithium Battery Safety Testing

I. Product Overview:

This test machine is primarily used for overcharge and overdischarge tests on batteries during charge and discharge testing. The battery is placed inside an explosion-proof box, which is connected to an external charge and discharge testing device, providing protection for both the operators and the instruments.

II. Product Parameters

Inner box dimensions	500x500x500mm (LxWxH)
Layers	2 layers (customizable), the interior of the box is lined with Teflon tape for effective insulation and flame retardancy
Box material	Stainless steel inner box, cold-rolled steel plate with paint treatment for the outer box
Door	Single-opening double-layer door with silicone strips and a transparent observation window
Test hole	50mm in diameter, located at the rear of the box for easy passage of test connection wires
Exhaust fan	Located at the rear of the box, with an exhaust interface for easy smoke ventilation
Lighting device	High-brightness explosion-proof lighting
Safety features	The door is connected to the box with strong hinges and uses an explosion-proof cold pull handle door lock
