Customized Battery Cathode Anode Electrode For LFP/LMO/LCO/NMC Lithium Battery Production

Model Number:: TMAX-Electrode-4
Dimension(L*W*H):: Customized
Compliance:: CE compliant
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Customized Battery Cathode Anode Electrode For LFP/LMO/LCO/NMC Lithium Battery Production

Ⅰ、Introduction:

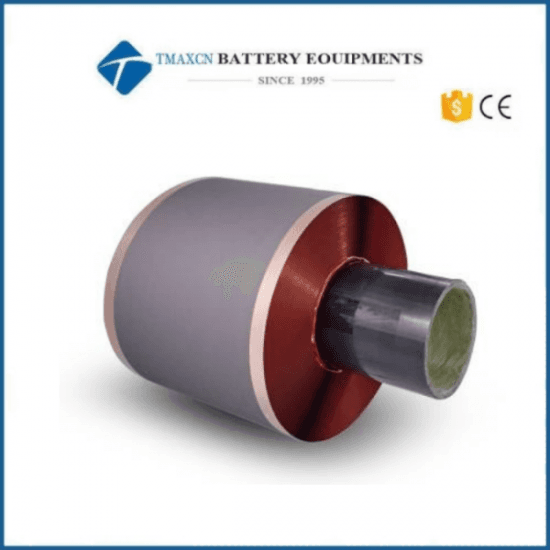

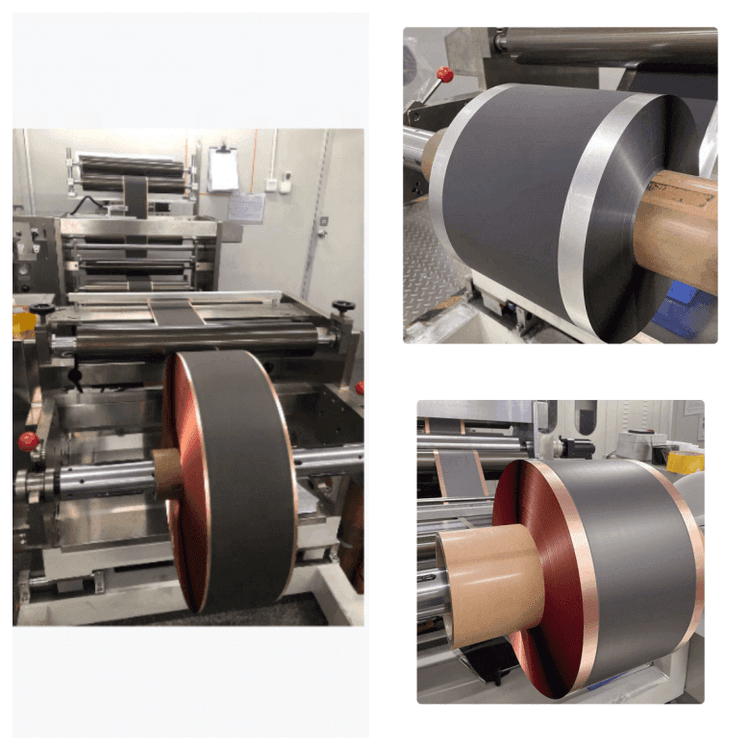

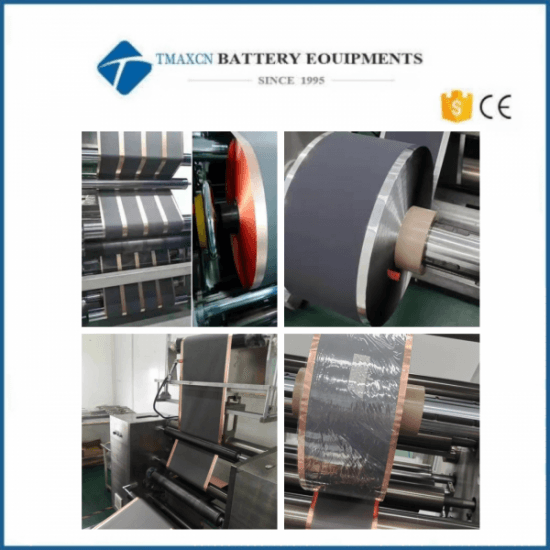

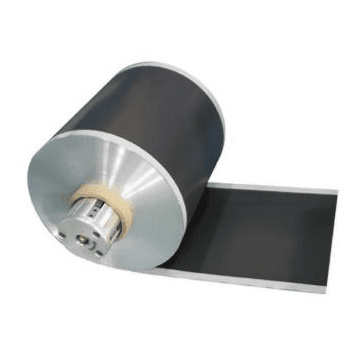

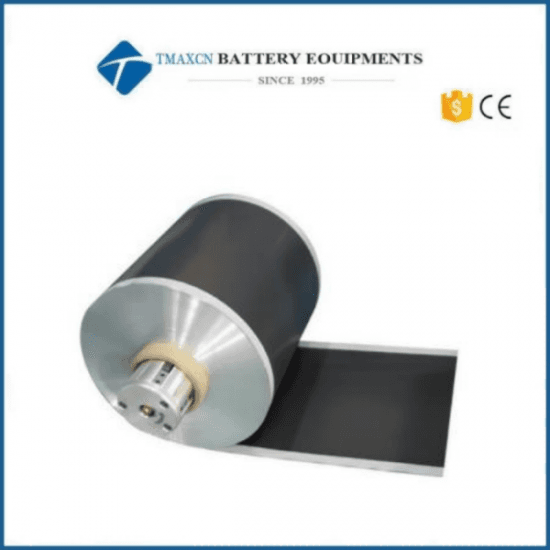

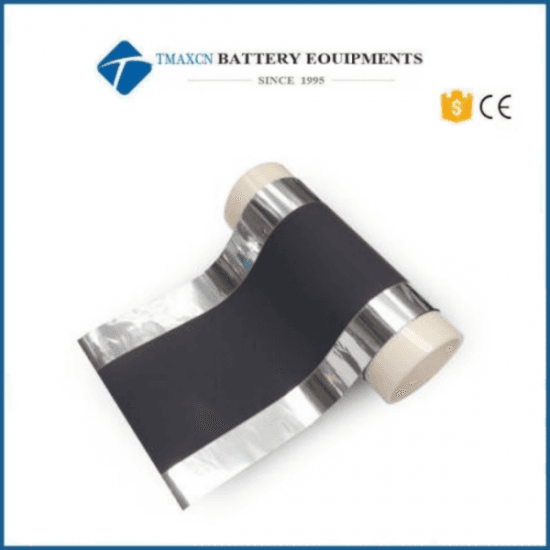

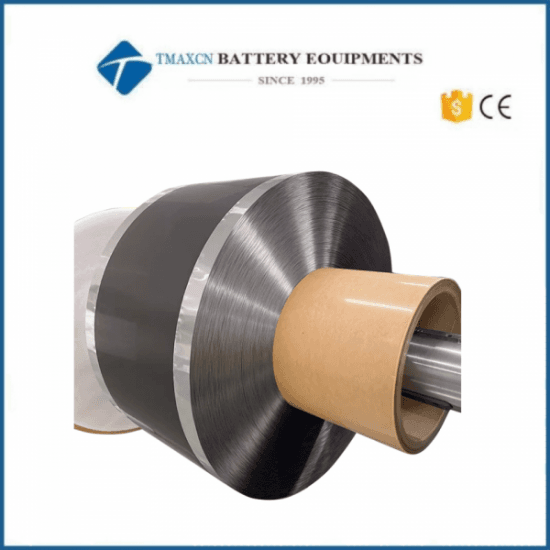

TMAX could supply different kinds of lithium ion battery electrodes, including Aluminum foil coating LFP, LMO, LCO, NMC, copper foil coating graphite. Also can customize the cathode and anode electrodes as your demands.

Ⅱ、Product Parameters:

Material systems	LCO
	NCM
	LMO
	LFP
	Graphite

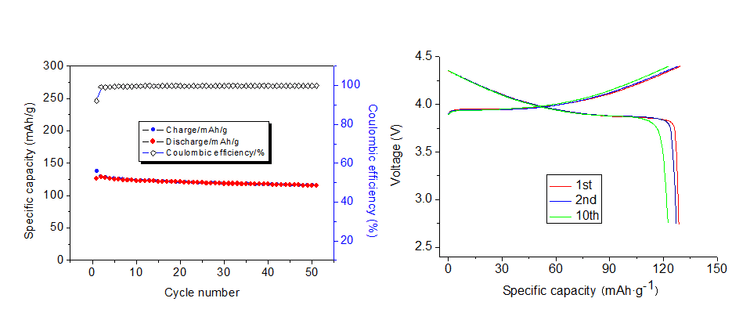

Formulation	Specific Capacity @ C/10 (mAh/g)	% wt
Cathode Active Material	190	96
PVDF	0	2

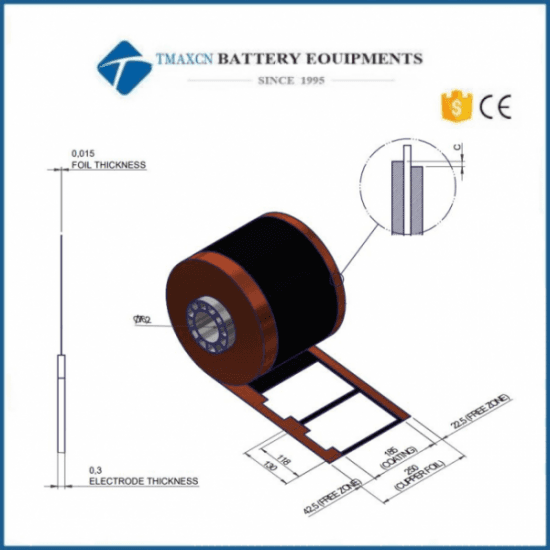

Al foil thickness	12	µm
Coating width	235	mm
Pattern coating length	517	mm
Uncoated length	20	mm
Density	3.56	g/cm3
Porosity	25	%
Mass loading	23.5	mg/cm²
Thickness	154 ± 1	µm

Formulation	Specific Capacity @ C/10 (mAh/g)	% wt
Anode Active Material	355	95.2
C45	0	1.5
Cu foil thickness	8	µm
Coating width	230	mm
Pattern coating length	520	mm
Uncoated length (uncoated foil gap between patterns)	20	mm
Density	1.73	g/cm3
Porosity	30	%
Mass loading	13.59	mm
Thickness	175±1	µm
