Four Station Battery Heat Sealing Machine For Lithium Polymer Battery

Four Station Battery Heat Sealing Machine For Lithium Polymer Battery

Model Number:
TMAX-TTS003
Compliance:
CE Certified
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
David@battery-equipments.com
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

Four Station Battery Heat Sealing Machine For Lithium Polymer Battery

1.Suitable for soft packing lithium core top-side heating vacuum sealing

2.The 4 stations turntable structure, cam positioning, precision bias error is less than ± 30

3.To configure a single head pressure regulator

4.Import PLC, touch screen control display, imported thermostat, error of ± 2 °C

5.Fixture locating detection, double-side heating, temperature alarm, screen protection

6.Using the programmable controller PLC practical automatic control, touch screen to realize man-machine dialogue, convenient operation

Technical Parameters

Main technical

parameters

TMAX-TTS001

       TMAX-TTS002

TMAX-TTS003

Size(L*W*H)

870*870*1500mm

970*970*1500mm

1100*1100*1500mm

Weight

500kg

800kg

1000kg

Max sealing size

top:200mm side:200mm

top:240mm side:240mm

top:240mm side:240mm

Sealing head length

210mm

250mm

330mm

Sealing stamp width

2-10mm

2-10mm

2-10mm

Production capacity

200-600pcs/H

100-250pcs/H

100-200pcs/H

Temperature error

 ± 2 °C

 ± 2 °C

 ± 2 °C

Source voltage

AC 220V

AC 220V

AC 220V

power

3.5KW

3.5KW

3.5KW

Air supply

0.6-0.7Mpa 10L/S

0.6-0.7Mpa 10L/S

0.6-0.7Mpa 10L/S

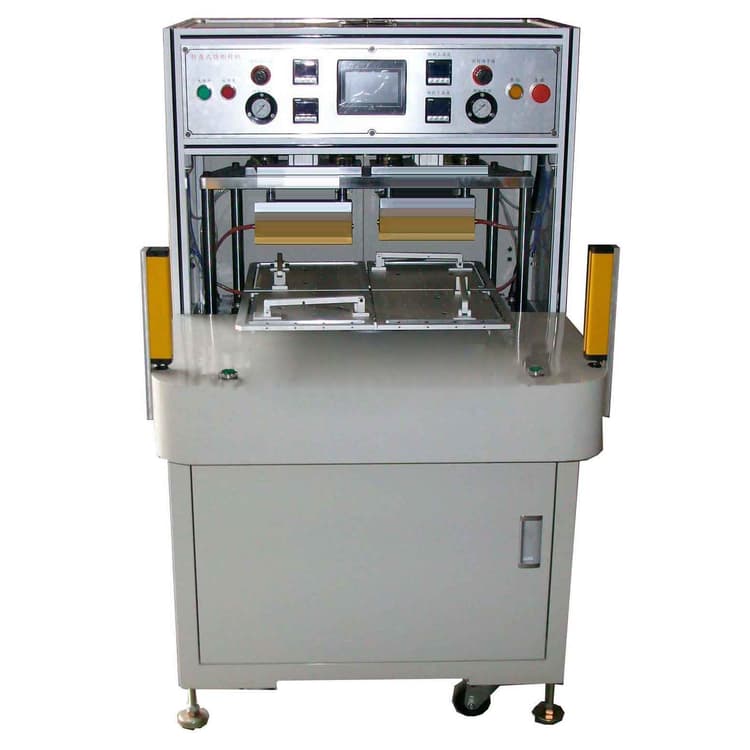

heating vacuum sealing machine



 battery equipment
