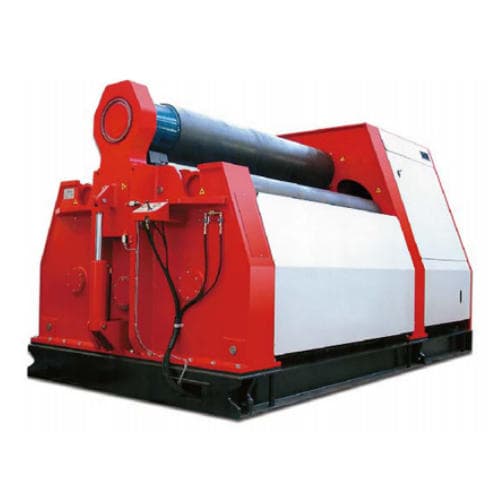

Fully-Hydraulic CNC Four Roller Plate Rolling Bending Machine

Model Number:: TMAX-W12H
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Fully-Hydraulic CNC Four Roller Plate Rolling Bending Machine

Features

W12 series four-roller plate rolling machines have a mechanically powered upper roller and pneumatic-powered lower roller and side roller and are operated by centralized electric control. lt can complete the pre-deformation of both ends of the plate and the rolling of drum and arch type workpieces by only one feeding. lt is capable of certain shaping and leveling and also of direct pre-bending which is both work saving and material saving.

Technical parameter

Specification can be customized as your actual needs!

Model	Unit	W12-6 x2000	W12-6 x2500	W12-8 x2000	W12-8 x2500	W12-12 x2000	W12-12 x2500
Max. Pre-bending thickness	mm	6	6	6	6	10	10
Max. Rolling thickness	mm	6	6	8	8	12	12
Max. Rolling width	mm	2000	2500	2000	2500	2000	2500
Plate yield limit	mpa	265	265	265	265	265	265
Rolling speed	M/min	5.5	5	5	5	5	5
Dia of upper roller	mm	180	210	215	230	260	280
Dia of lower roller	mm	180	210	215	230	260	280
Dia of side roller	mm	145	165	165	180	200	220
Motor power	KW	5.5	7.5	11	11	18.5	18.5
