Lab 18650 Cylindrical Cell Case With Anti-Explosive Cap
- Model Number:
- TMAX-18650-C
- Type:
- Coin Cell Case/Spring/Spacer
- Dimension(L*W*H):
- 18650 Cell Case
- Compliance:
- CE certificate
- Payment:
- T/T, Credit Card, Paypal, LC, Western Union
- Delivery Time:
- 3 Days
- WhatsApp:
- +8618659217588
- WeChat:
- 18659217588
Product Description

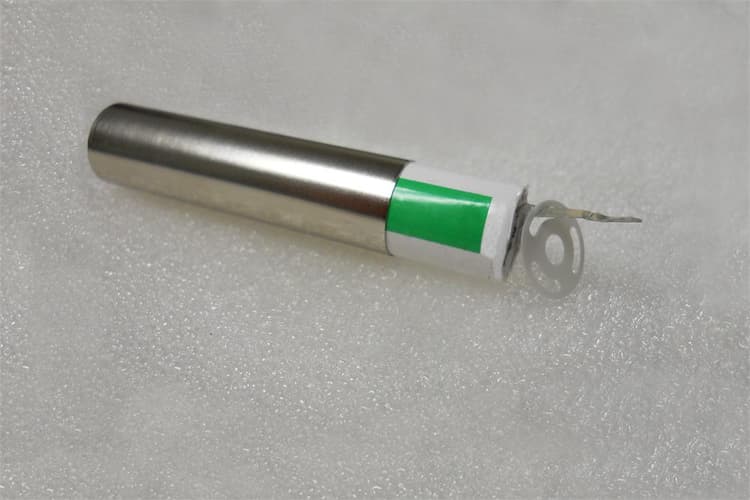

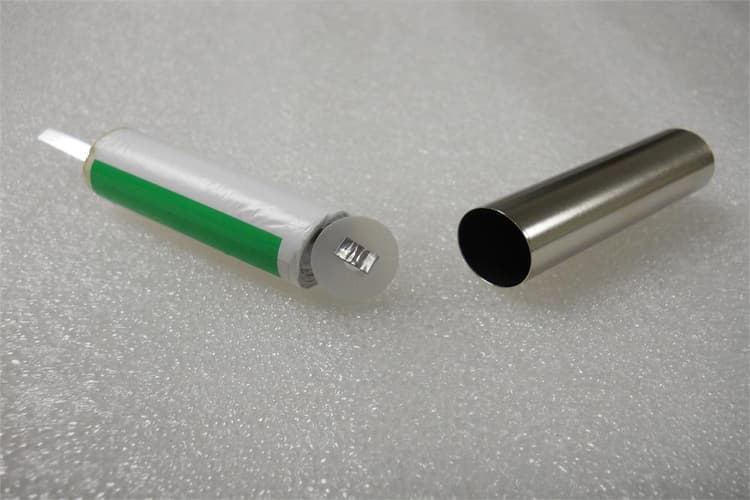

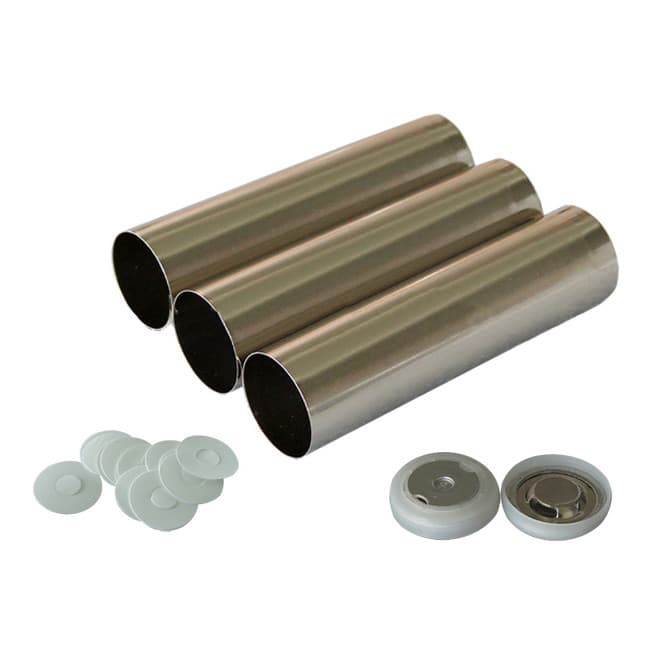

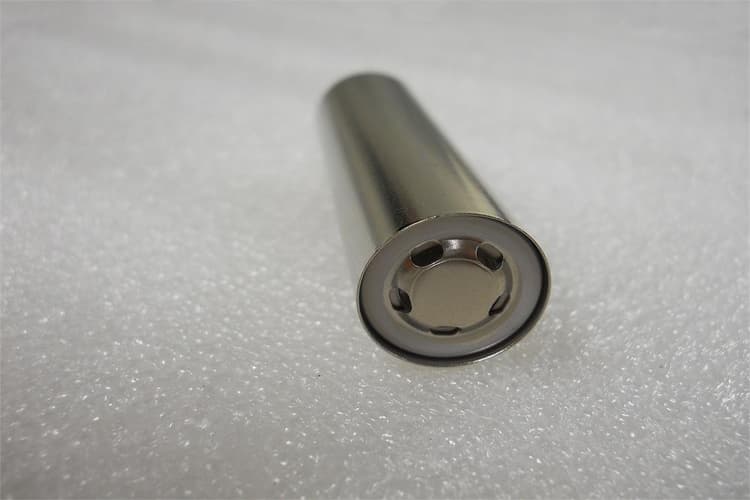

Lab 18650 Cylindrical Cell Case With Anti-Explosive Cap
Size
|
Case Dimensions |
18.15mm(OD) x 17.6mm(ID) x 68.25mm(H) |
|
Top Cap |
17.6mm(D) x 3.85mm(H) |
|
Top Cap with O ring |
17.6mm(D) x 4mm(H) |
|
Top Insulator |
17mm(D) x 0.12mm(H) with 6.5mm hole |
|
Bottom Insulator |
17mm(D) x 0.12mm(H) with 6.5mm hole |
Materials
|
Case |
304ss stainless steel |
|
cap |
Nickel plated steel |
|
Seal O-ring |
Nylon |
|
Insulating gasket |
PP |
