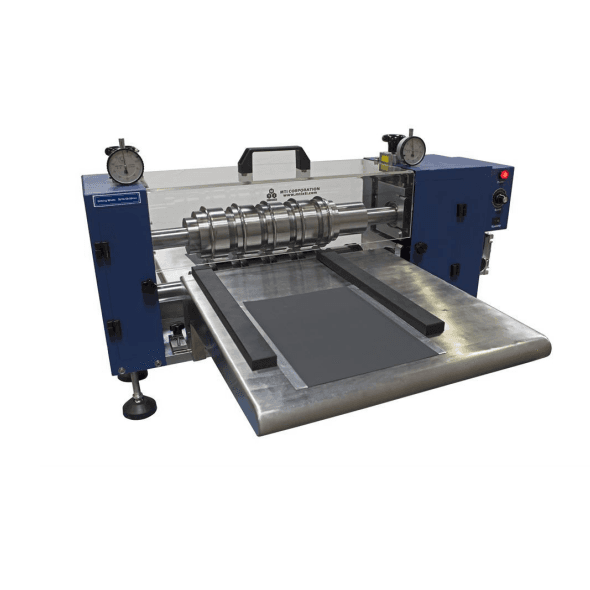

Lab Battery Electrode Slitter Machine With Customized Slitting Width
- Model Number:
- MSK-300
- Type:
- Electrode Slitter Machine
- Dimension(L*W*H):
- Blade Diameter: 100mm It can be customized
- Net Weight:
- 110kg (250 lbs)
- Compliance:
- CE certificate
- Warranty:
- Two Year Limited Warranty With Lifetime Support
- Payment:
- T/T, Credit Card, Paypal, LC, Western Union
- Delivery Time:
- 3 Days
- WhatsApp:
- +8618659217588
- WeChat:
- 18659217588
Product Description
Lab Battery Electrode Slitter Machine With Customized Slitting Width
SPECIFICATION
MSK-300 is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries in R&D laboratories.
|
Model |
Semi Automatic slitting Machine MSK-300 |
|
Working Voltage |
Machine Input: 22-24V DC with 5mm barrel connector |
|
Max. Power Consumption |
100W |
|
Cutting Method |

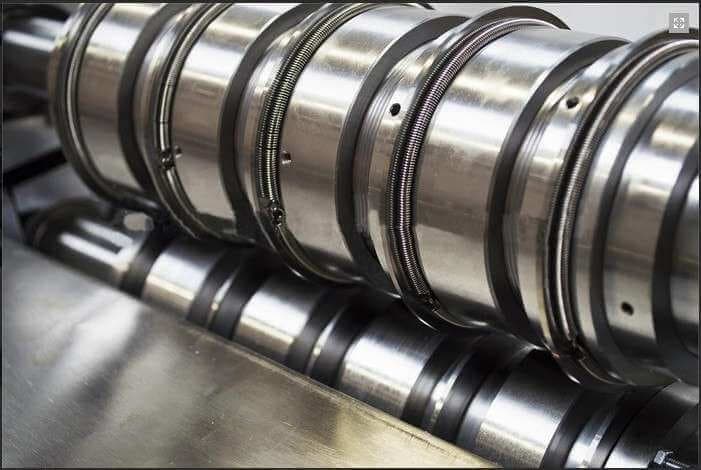

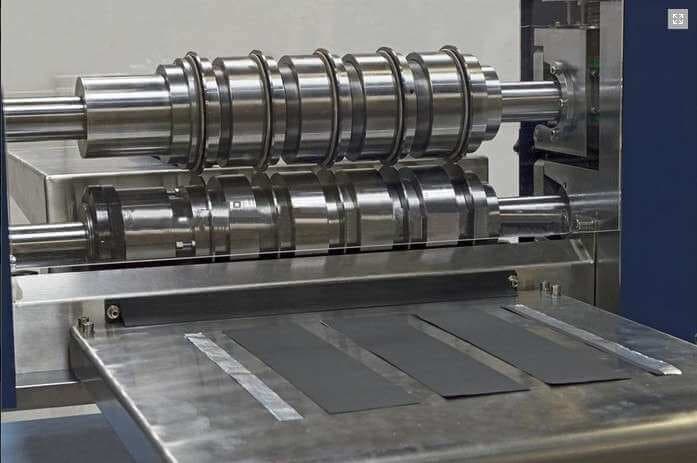

Two round blades rolling to cut Blade Materials: Tungsten alloys |
|
Cutting Width |
1. 4 sets of slitting blades (two blades with slitting width of 58mm, and another two with slitting width of 56 mm) It can be customized please contact us for details. |
|
Cutting Thickness |
100 - 300 microns |
|
Cutting Speed |
0 - 4 meter / minute Adjustable |
|
Product Dimensions |
84.3cm(L) x 101cm(W) x 48cm(H) |
|
Warranty |
One year limited warranty with lifetime support |
|
Net Weight |
110kg (250 lbs) |
