Lab Customized Film Coating Machine with Doctor blade & Bar Alternately

Model Number:: TMAX-MS-ZN320B
Net Weight:: 52KG
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

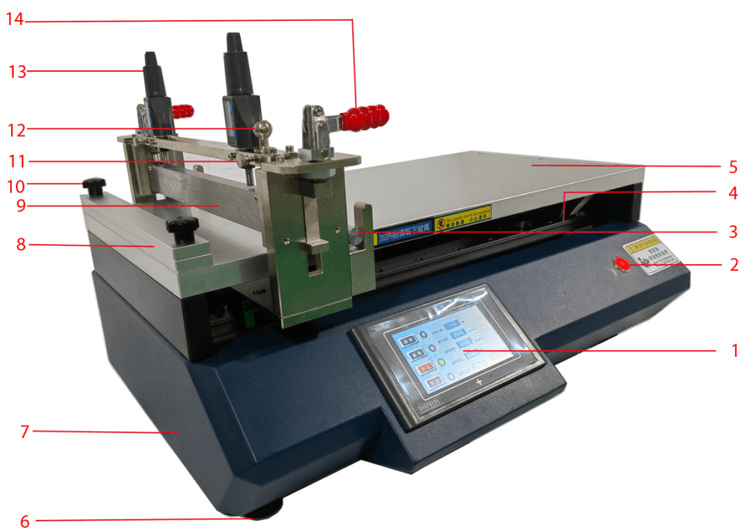

Lab Customized Film Coating Machine with Doctor blade & Bar Alternately

ZN320B is an automatic coating machine with integrated functions such as bar coating, doctor blade and heating. It is an ideal equipment for coating electrodes, glues and other high viscosity samples in the laboratory.

Specifications

Control system	5 inch PLC touch screen

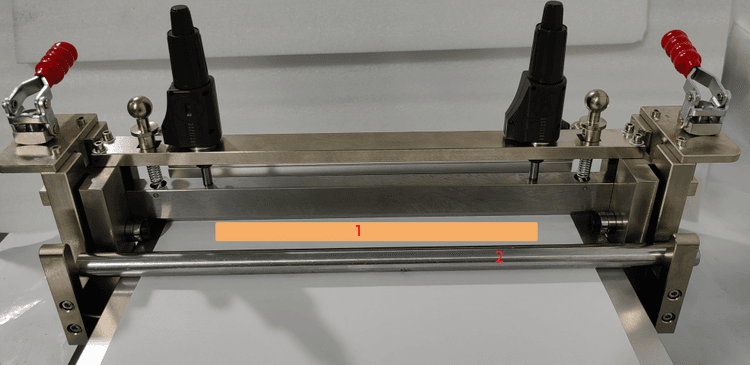

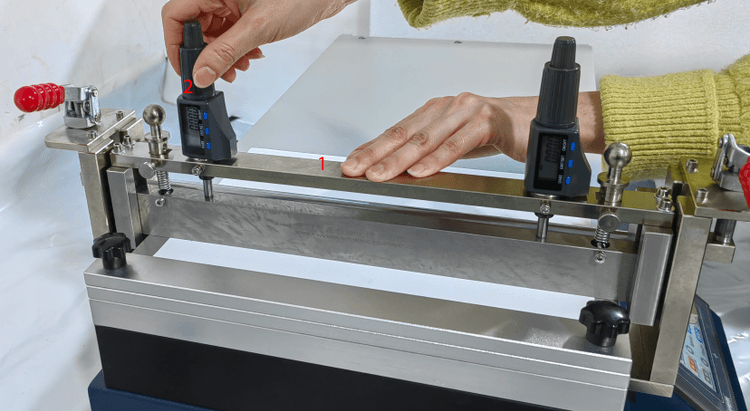

Coating method	Doctor blade & bar can be used alternately
Heating	Normal temperature ~ 160 degrees (constant temperature setting)
Effective coating range	300*450mm
Coating thickness	0.01-5MM
Automatic control	Travel setting/speed setting/temperature setting
Vacuum function	Optional
Suitable for	Lithium battery, PET, aluminum foil, paper and other flat materials
Bar thickness (Optional)	5、10、15、20、25、30、35、40、45、50、55、60、65、70、75、80、90、100、110、120、130、140、150、200um
