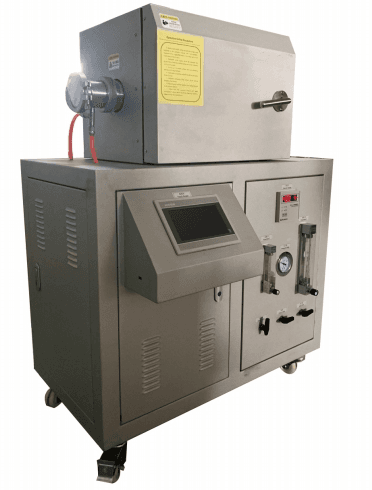

Lab High Temperature Microwave Vacuum Tube Sintering Furnace

Model Number:: TMAX-HY-ZKG
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Lab High Temperature Microwave Vacuum Tube Sintering Furnace

Summarize

Microwave vacuum tube furnace is a standard vacuum microwave tube furnace, which is suitable for synthesis roasting, heat treatment and sintering under various atmosphere and vacuum conditions, especially for various gas-solid phase/gas phase reaction, synthesis reaction and decomposition reaction.

Main feature

1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;

2) Furnace body and vacuum system integrated design, simple structure, safe and reliable;

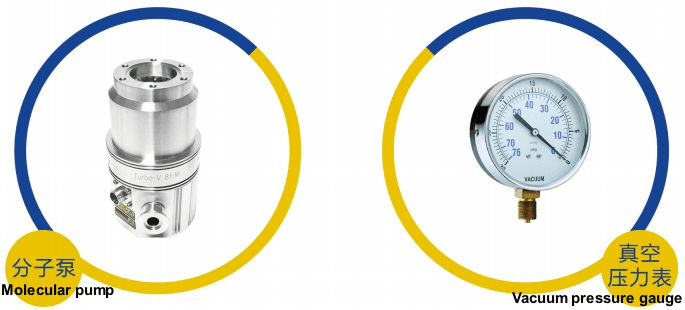

3) Molecular pump vacuum unit, greatly shorten the vacuum time;

4) Unique microwave vacuum structure, vacuum conditions to meet a variety of experimental needs;

5) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved.

Technical parameter

Model Parameter	HY-ZKG1512	HY-ZKG3012
Voltage	220±10V，50Hz	380±10V，50Hz
Microwave output power	0.01~1.40kW, continuously adjustable (Panasonic)	0.01~2.80kW, continuously adjustable (Panasonic)
Heating space (diameter x length)	φ40x130mm	φ60x140mm
Microwave frequency	2.45GHz
Operating temperature	<1200℃
Temperature measurement method	Thermocouple/infrared
Static limit vacuum	≤6.67x10-³Pa, molecular pump
Atmosphere system	Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc
Control mode	Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode)
Control program	Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven
Anti-microwave leakage	Microwave leakage level <1mW/cm2
Safety protection	Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm
Main body (L x W x H)	About 700x550x900mm		About 800x600x1000mm
