Lab Hydraulic Coin Cell Crimper Sealer Sealing Machine for All Coin Cells: CR2016, CR2025, CR2032 & Optional CR1220, CR2325 or CR2450 etc

Model Number:: MSK-110
Dimension(L*W*H):: 280mm(L) x 280mm(W) x 333mm(H)
Net Weight:: 35 Kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Lab Hydraulic Coin Cell Crimper Sealer Sealing Machine for All Coin Cells: CR2016, CR2025, CR2032 & Optional CR1220, CR2325 or CR2450 etc

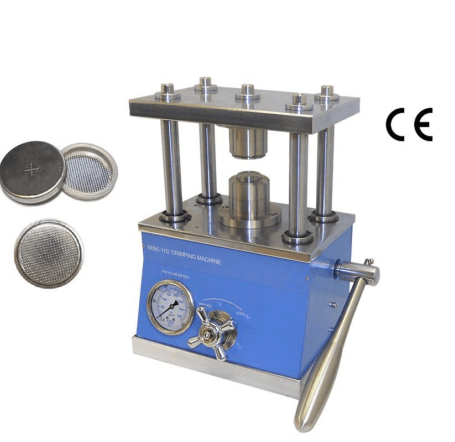

MSK-110 is a newly designed and coin-cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 without changing the die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets. In addition, customers can easily replace the original die for disassembling purpose. MSK-110 is an ideal tool for operations in a glove box.
SPECIFICATIONS:

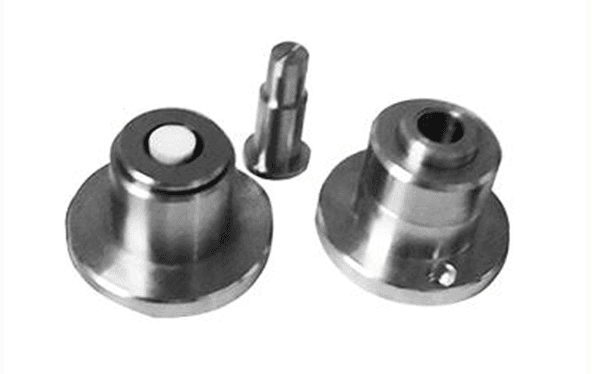

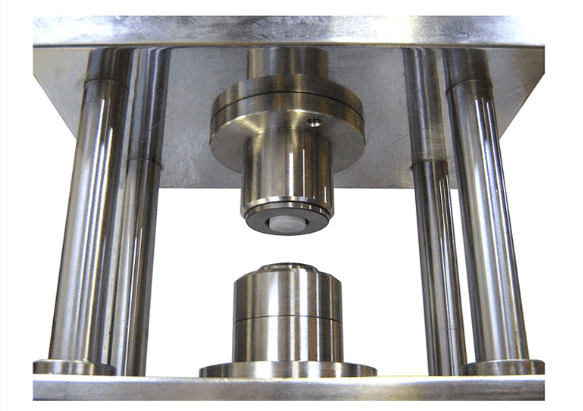

Standard Crimping Die	One set of crimping die for CR2032, CR2025, and CR2016 Optional die available from product option for crimping CR2325, CR2450, AG3, AG5 PTFE Anti-Corrosion Core prevents coin cells from being short circuited
Structure	Heavy Duty Steel Platform
Pressure	Max. 8 metric Tons hydraulic pump with automatic pressure relief
Product Dimensions	With handle positioned horizontally: 280mm(L) x 280mm(W) x 333mm(H) Without handle: 228mm(L) x 176.8mm(W) x 333mm(H)
Warranty	One Year limited warranty with lifetime support (Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)

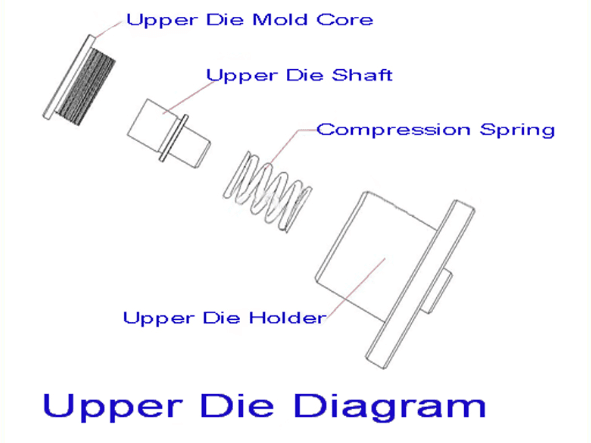

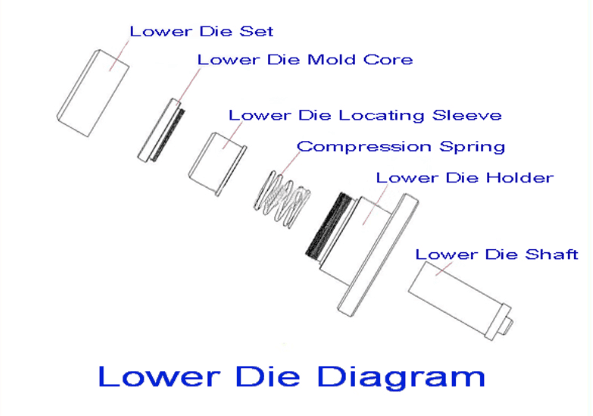

Application Notes	Attention: The built-in small hydraulic pump is not designed for holding high pressure. Pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling the coin cell). Access to the Over-pressure limit screw by removing the front panel (click first picture below for details) Please see instructions below about changing the upper and lower die for converting the unit to MSK-110D, which disassembles crimped coin cells - How to Install the Disassembling Die on MSK-110 Crimper
Net Weight	25 kg (55 lbs)
Shipping Weight	45 kg (100 lbs)
