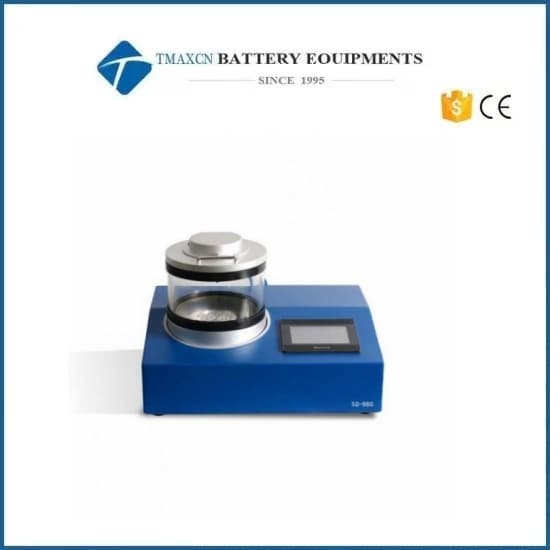

Lab Vacuum Pulsing Thermal Evaporator Carbon Coater For Perovskite Solar Cell Line

Lab Vacuum Pulsing Thermal Evaporator Carbon Coater For Perovskite Solar Cell Line

Introduction

   Automatic Pulsing Thermal Evaporation Carbon Coater (SD980 Model)  is ideal and designed for lab SEM sample preparation. SD980 Model carbon coater is a fully-automated carbon coater that applies a thin conductive carbon film on a sample surface. Applying this coating to a non-conductive sample is an effective preparation technique for diminishing charge-up electron artifacts for analysis in a SEM. A pulsed mode for protecting samples is also included.
  Working vacuum pressure can be achieved quickly when using proper vacuum pump. It is user friendly and easy to operate by Controlling Touch Screen Heating Power (Current) and Pulsing Times (Recipe).
  Vacuum pump is included.

Parameter

Vacuum pump set	(Oil required) rotary vacuum pump
Rotary pumping speed	50 Hz : 8 m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h (2.6 L/s)
Vacuum limit	2 Pa
Max evaporation current	80A
Working pressure	6 Pa - 4 Pa
Vacuuming time	<5 Min(2 Pa)
Vacuum measure	Measuring range from atmosphere to 2*10-2mbar
Chamber size	Φ150*120mm (height) scratch resistant quartz glass
Evaporation target source	Target material :carbon rope/target source: carbon rope
Operation method	Instruction Manual
Weight/size	45kg/390mm length x 310mm wide x 290mm high
Power supply	AC 110V 60Hz or AC 220V 50Hz
Power consumption	<2000W
Warranty	One year limited warranty with lifetime product support
