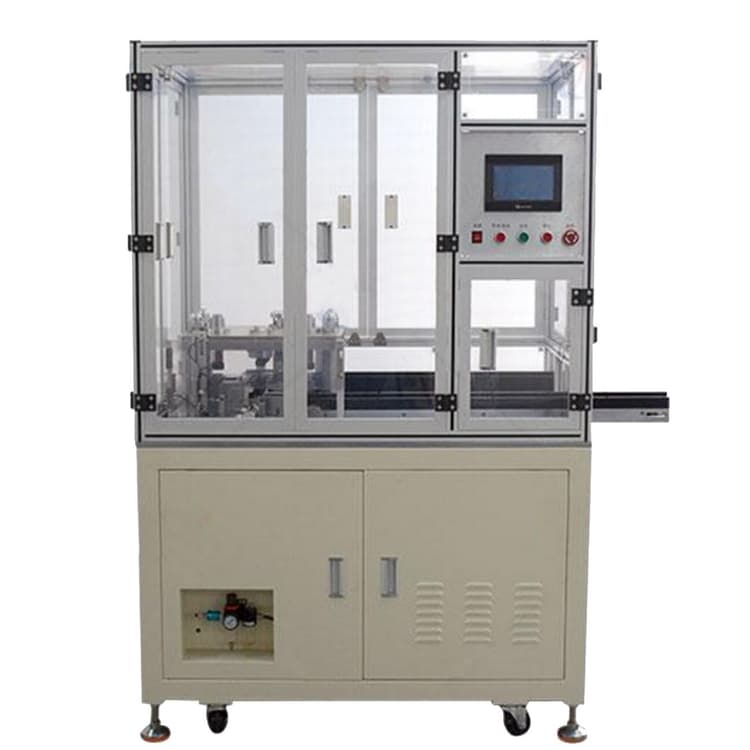

Large Automatic Battery Crimping Machine for Cylindrical Cell Case

Large Automatic Battery Crimping Machine for Cylindrical Cell Case



It is an auto crimper designed for sealing the cylindrical battery cases. It provides a continues workflow for case batch loading - crimping - case unloading without dedicated labor.



Advanced Features:

· Efficient batch loading/unloading mechanism with case feeding conveyor

·  Dedicated Four-step crimping process (1st & 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th trial for case consolidation) ensures the most stable & consistent sealing quality

· Crimping speed and pressure is adjustable

· User-friendly human-machine interface with PLC touch screen control

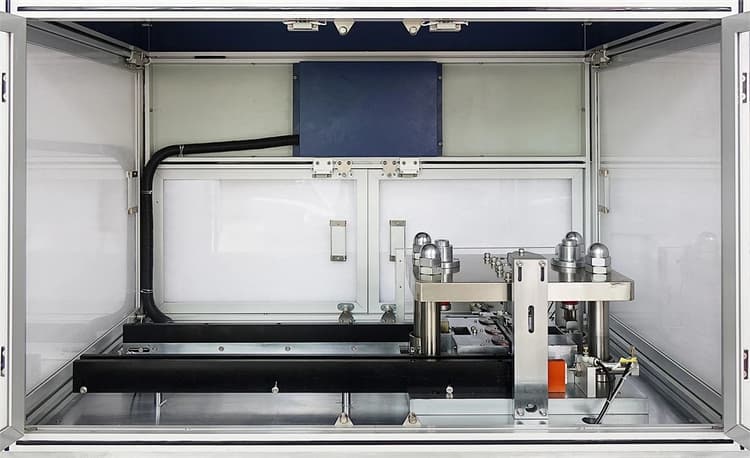

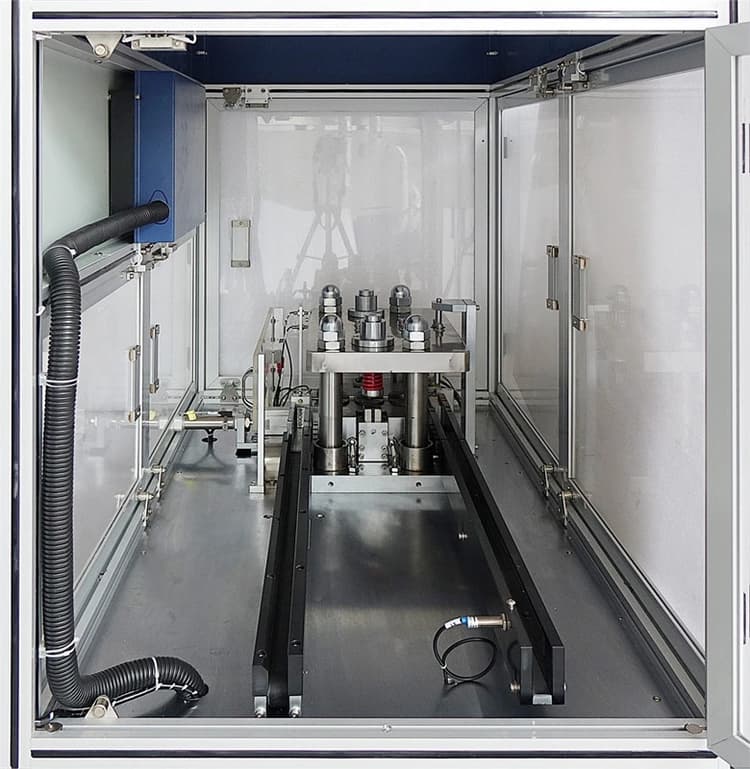

· Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment

Specifications：

Working Voltage	110/220V AC, 50/60Hz, three Phase
Max. Power Consumption	4KW
Driving Force	Penumatic, 0.5 - 0.8 MPa compression gas is required
Compatibility	Standard crimping capability for 18650 case
	Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.
Control	User-friendly HMI with PLC touch screen control ensures easy program setup
Crimping Force	Upto 6kgf/cm²
Productivity	·         30 pieces per minute
	·         Material feeding conveyor is able to load upto 22 pcs per batch
Warranty	·         One year limited with lifetime support
	·         Parts rusted without regular cleaning and maintenance are not covered
Product Dimensions	W1200mm*D690mm*H1765mm
Net Weight	800 lbs
