Manual 18650 Battery Electrode Winder Winding Machine For Lab Cylindrical/Pouch Cell Research
- Model Number:
- TMAX-MJR90
- Type:
- Electrode Winding Machine
- Dimension(L*W*H):
- Less than Φ35*L90mm
- Net Weight:
- 40kg
- Compliance:
- CE certificate
- Warranty:
- Two Year Limited Warranty With Lifetime Support
- Payment:
- T/T, Credit Card, Paypal, LC, Western Union
- Delivery Time:
- 3 Days
- WhatsApp:
- +8618659217588
- WeChat:
- 18659217588
Product Description
Manual 18650 Battery Electrode Winding Machine For Lab Cylindrical Battery Research

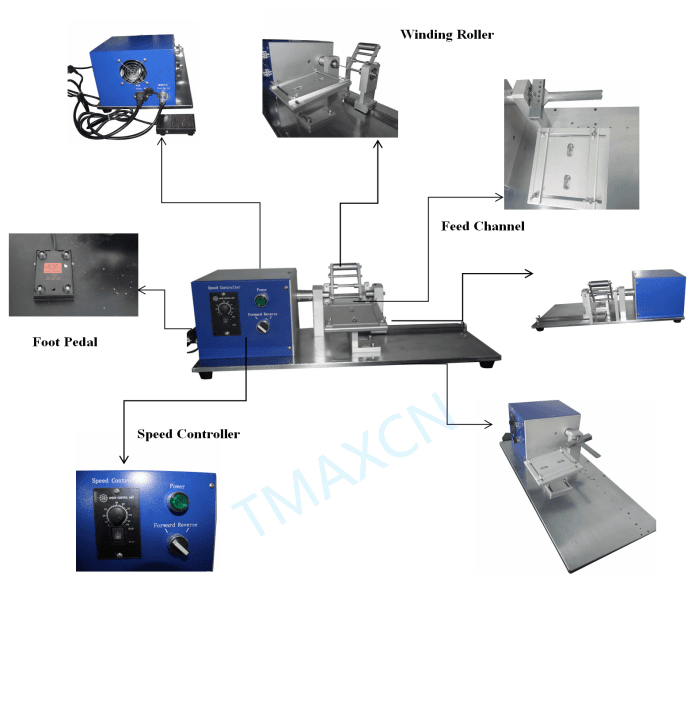

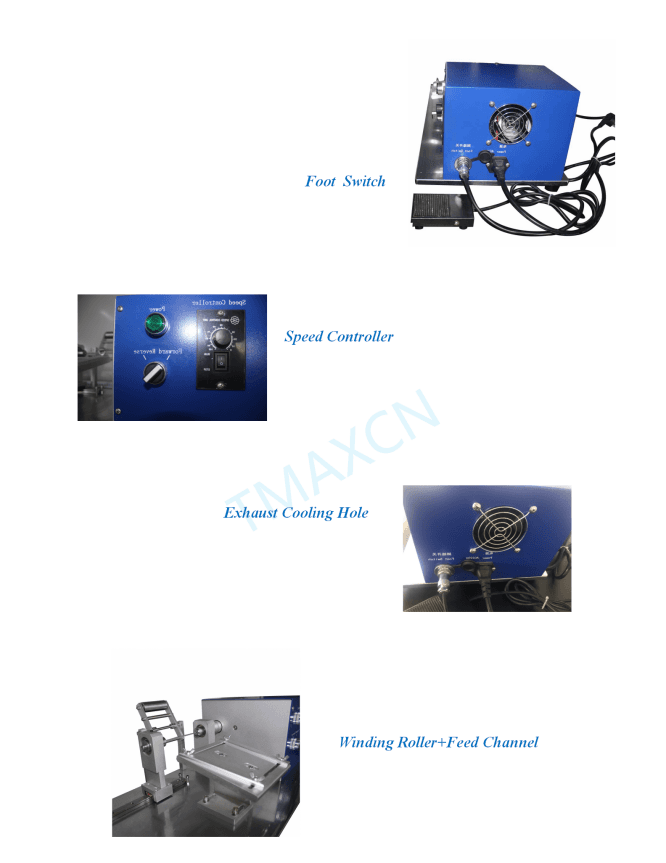

TMAX-MJR90 is designed for winding the small
prismatic cells, also used to wind the inner cores of electronic components.
The main axle of equipment turns electrically, the winding speed varies with

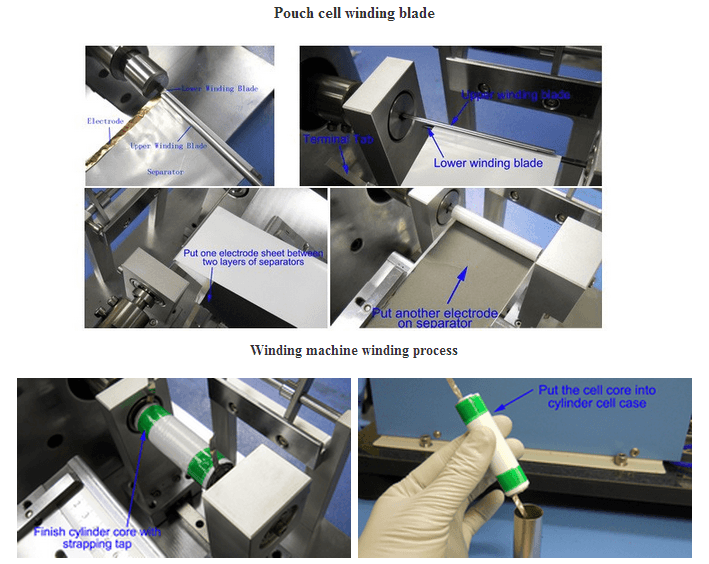

the variation of frequency. It draws the needle and unload moulds pneumatically
and is easy to operate. The winded products are of uniform tightness, tidy, and
the winded blocks lose little powder.
|
Item |
Date |
|
Voltage |
220V/50Hz |
|
Power |
60W |
|
Air |
0.05m3/min |
|
Pressure |
0.2-0.4Mpa |
|
Rotation |
0-100rpm |
