Middle Size Vacuum Oven with Max Working Temperature 250°C And 215 Liter Capacity

Model Number:: TMAX-DZF-6210
Type:: Vacuum Drying Oven
Input Power:: 4.5KW*4
Dimension(L*W*H):: 1850*2280*1000mm
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Middle Size Vacuum Oven with Max Working Temperature 250°C And 215 Liter Capacity

TMAX-DZF-6210 is a middle size vacuum oven with max working temperature 250°C and 215 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

SPECIFICATIONS:

Model	6052	6210	6090	6250	6050		6051	6021	6020	6030A Special for chemistriy	6030B/6050B Special for chemistriy
Electrical Requirements		220V 50Hz		380V 50Hz	220V 50Hz
Input Power		2100W	1400W	3000W	1400W		1400W	500W	500W	500W	400W/700W
Temperature Range	RT	RT+10~250℃					RT+10~200℃		RT+10~250℃		RT+10~65℃
Temperature Control/Stability		0.1℃/±0.5℃
Vacuum Degree	133Pa
Ambient Temperature	+5~40℃
Interior Dimension (mm)WDH	415370 345	560640 600	450450 450	700600 600		415370 345		300300 275		320320 300	320320300 415370345
Overall Dimension	720525 535	720820 1750	615590 1470	1050760 910		720525 535		580450 450		630510 460	610510 490 710560 550
shelves	2(pcs)	3(pcs)	2(pcs)	3(pcs)		2(pcs)		1(pcs)		1(pcs)	1/2 (pcs)
Chamber Material	Stainless						Rolled sheet		Stainless

Vacuum Pump
(optional)

Ultimate Vacuum Level: 1000 millitorrs.

Temperature Controller

1. Single point temperature setting
2. Built-in over-temperature protection
3. PID precise temperature control
4. Temperature control accuracy: +/-0.1°C
5. Temperature uniformity: +/-2.5°C @ 100°C, 25" Hg at center 6"x6" area only

Fittings

This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump.

Compliance

CE Certified

Warranty

One years limited warranty with lifetime technical support

Attention

1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
2. Please do not place the sample on the chamber bottom directly.

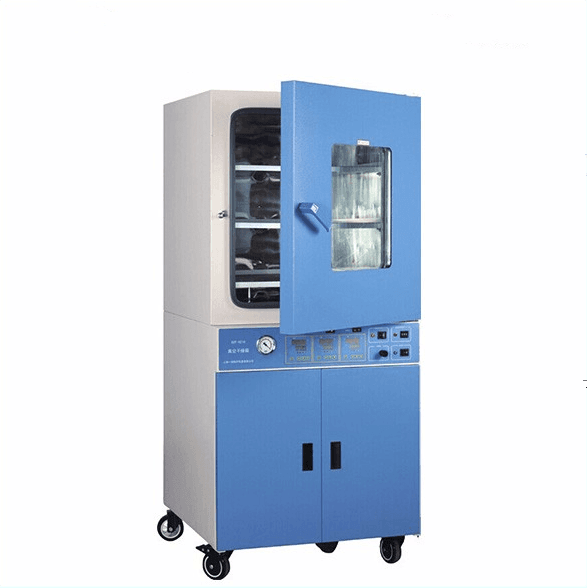

Heating Drying Oven
