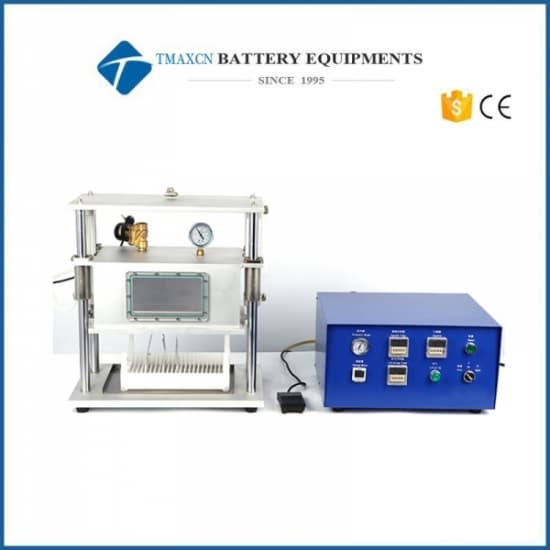

Pouch Cell Vacuum Standing Machine Battery Electrolyte Diffusion & Degassing Chamber

Model Number:: TMAX-JZ200
Type:: Electrolyte Diffusion
Dimension(L*W*H):: 500 x 400 x 700mm It can be customized
Net Weight:: 65Kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

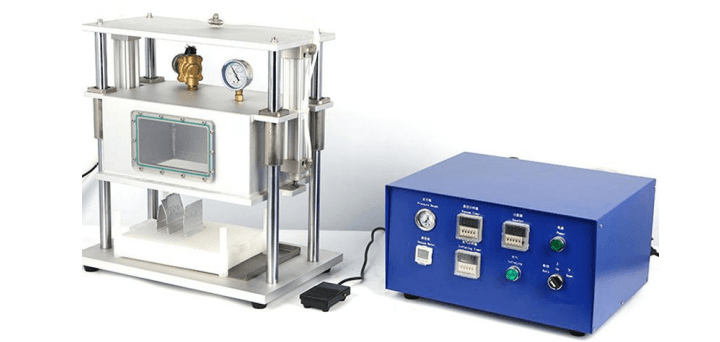

Pouch Cell Vacuum Standing Machine Battery Electrolyte Diffusion & Degassing Chamber

TMAX-JZ200 electrolyte diffusion & degassing chamber is specifically designed for professional Pouch Cell Research. It is mainly used for removing air from the electrolyte after it's been injected into the polymer Li-ion cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries(especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.

SPECIFICATIONS:

Inner Chamber Size	L350mmW250mmH200mm
Product Dimensions	Vacuum Box: 500mm(L) x 350mm(W) x 650mm(H) Control Unit: 500mm(L) x 200mm(W) x 350mm(H)
Power Supply	110-240 V, Single Phase 50/60Hz
Max. Power	100W
Compressed Air	0.5-0.8Mpa

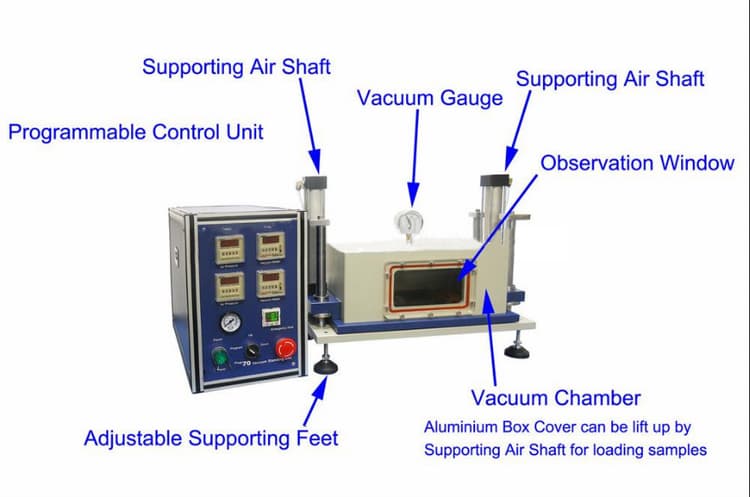

Chamber Body	12mm thick Aluminum case with observation window
Gas Filling Rate	<= 5 psi
Air Pressure Range	0 - 1 Mpa (0 - 99 psi) Adjustable

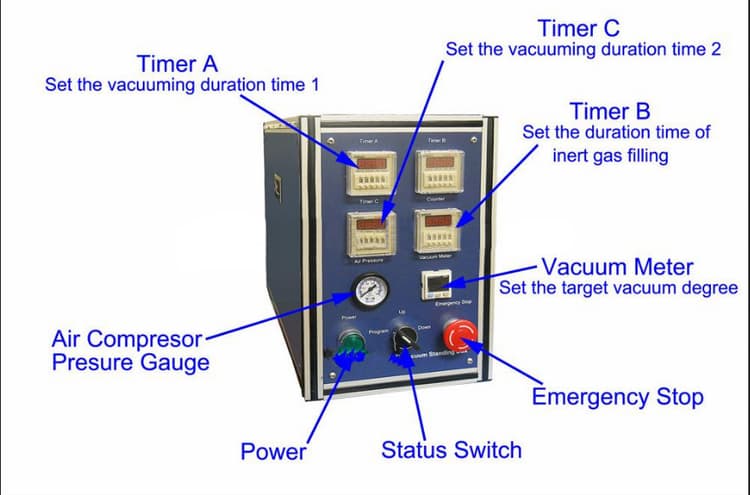

Vacuum Level	1. Vacuum condition remains stable, vacuum degree and vacuum circulation times can be set independently 2. Vacuum mode (once or twice) can be selected 3.Easy program setting for specific vacuum condition 4.-0.9 - 0 kPa adjustable
Air Inflation Time	0 -99.99 sec
Vacuum Condition Hold Time	0 -99.99 sec
Operation Temperature	-20 to 40 ℃
Warranty	Two Year limited warranty with lifetime support
Net Weight	65KG
Application Notes	1. KF25 Feedthrough is included to allow operation inside TMAX Glove box. 2. Such a Feedthrough ensures air-tightness of glove box.
