Semi-auto Roll Groover Grooving Machine For Cylinder Battery

Model Number:: TMAX-JK-GCJ-01
Input Power:: 750W
Dimension(L*W*H):: 800mm(L) x 460mm(W) x 720mm(H)
Net Weight:: 68kg
Compliance:: CE Certified
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

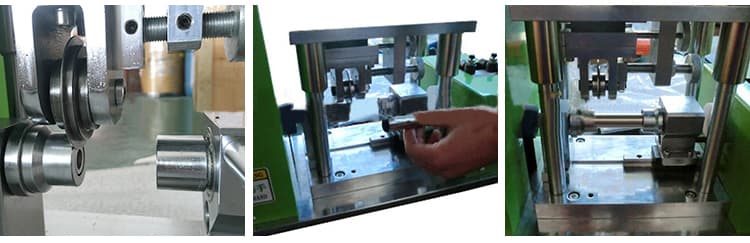

Semi-auto Rolling Grooving Machine For Cylindrical Cases

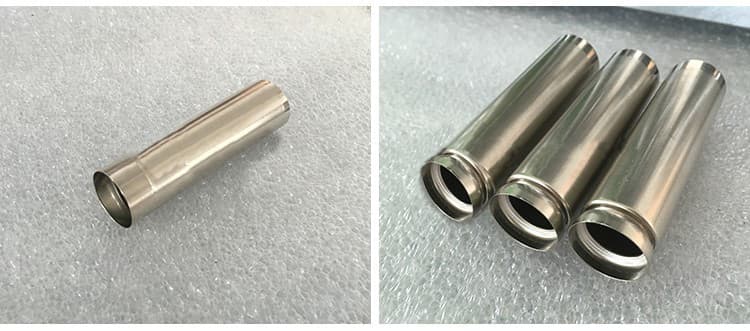

TMAX-JK-GCJ-01 Series is a CE Certified semi-auto grooving machine. It is used for grooving various cylindrical cases including CR123, 18650, 26650, 32650 and AA.

Specifications

Working Voltage	380V AC, 50/60Hz
Max. Power Consumption	750W
Air Pressure	>0.5 MPa is required (Air Compressor is not included)
Compatibility	CR123 / 18650 / 26650 / 32650 / AA
Grooving Dimensions	1. Depth: 1.2 - 2.0 mm 2. Width: 1.1 - 1.5 mm
Grooving Accuracy	+/- 0.1 mm
Grooving Blade Durability	>1 million times
Productivity	2400 grooving per hour
Product Dimensions	800mm(L) x 460mm(W) x 720mm(H)
Net Weight	68 kg (150 lbs)
Warranty	One year limited with lifetime support
Application Notes	1. Customized die for other cylindrical cell types is available upon request 2. Each type of cylinder cell can only be grooved specifically by the certain model of this equipment.
