Desk-Top Stepless Speed Variation Vacuum Mixer For Li-ion Battery Research

Model Number:: MSK-SFM-7
Type:: Mixing Machine
Dimension(L*W*H):: 330*310*510mm
Net Weight:: 30kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: David@battery-equipments.com
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Desk-Top Stepless Speed Variation Vacuum Mixer For Li-ion Battery Research

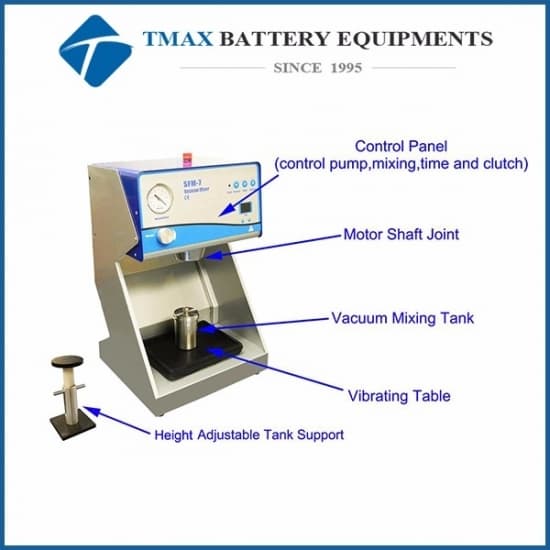

1. MSK-SFM-7 vacuum mixer is with build-in pump which can vacuum the mixing container to -0.08Mpa and the step- less mixing speed at 320rpm. So we don’t need to connect with vacuum pump separately.
2. This vacuum mixer and laboratory vacuum mixing machine are designed to produce coating slurry by mixing small batch of chemical and compound under vacuum to remove gas bubble and protect sample from oxidation.
3. It is excellent for preparing battery electrode paste and various ceramic materials in research lab.

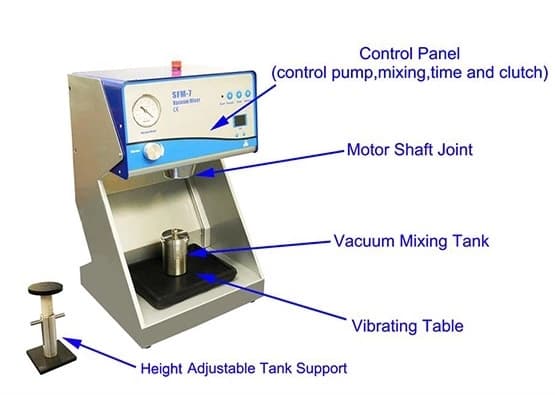

4. The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing.

SPECIFICATIONS:

Model	Vacuum mixer MSK-SFM-7
Voltage Input	Single Phase 110VAC or 220VAC, Customized
Power	150W
Power plug	Supply with required power plug according to different country
Rotary Speed	320 rpm

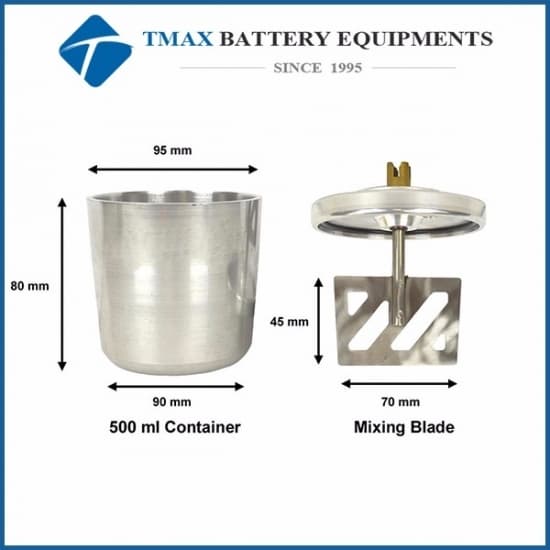

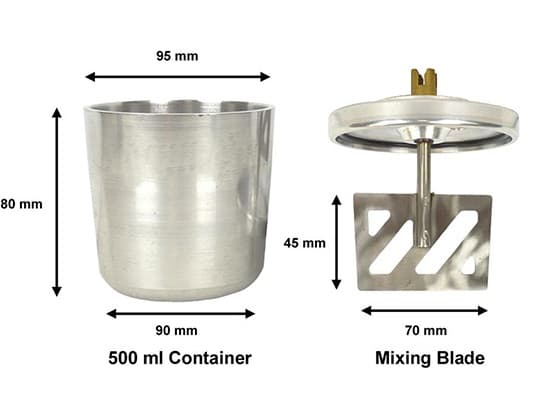

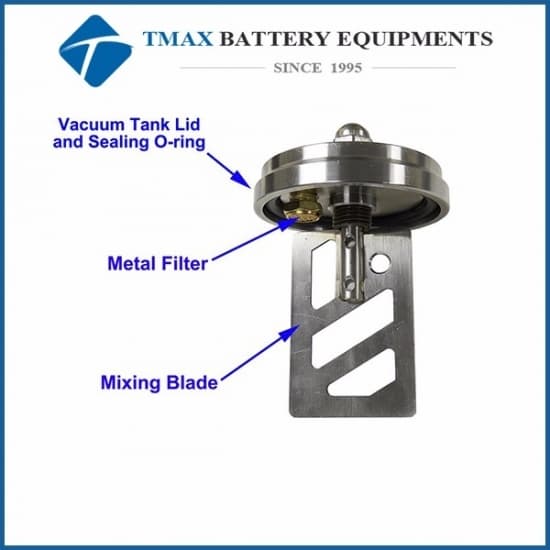

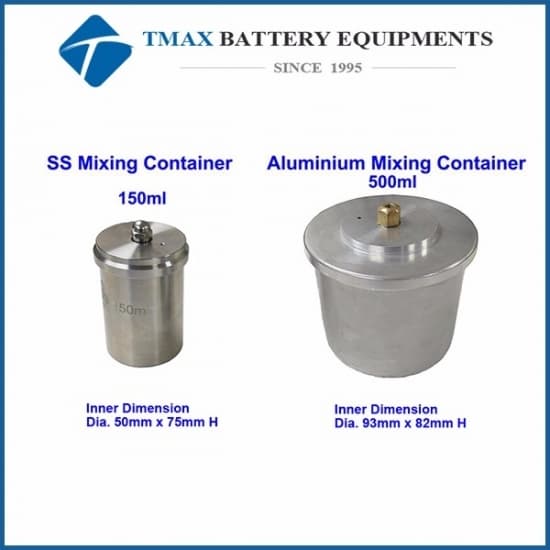

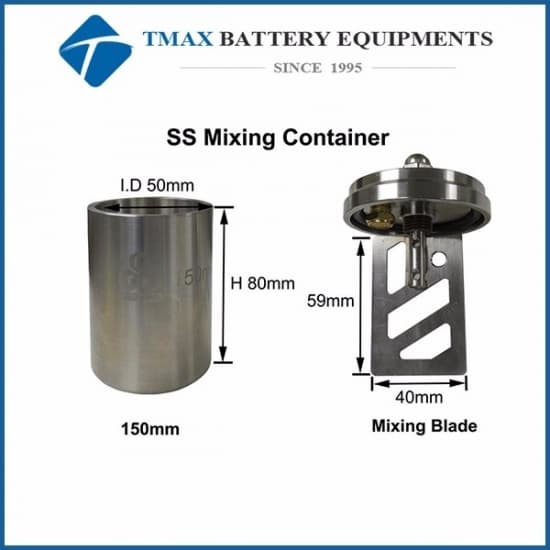

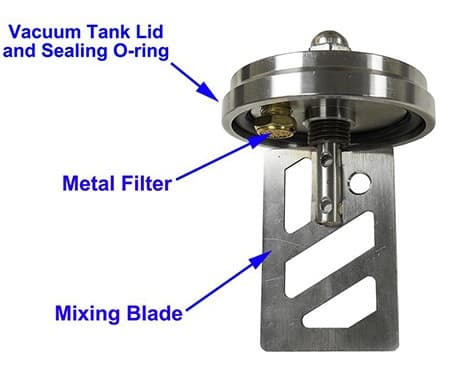

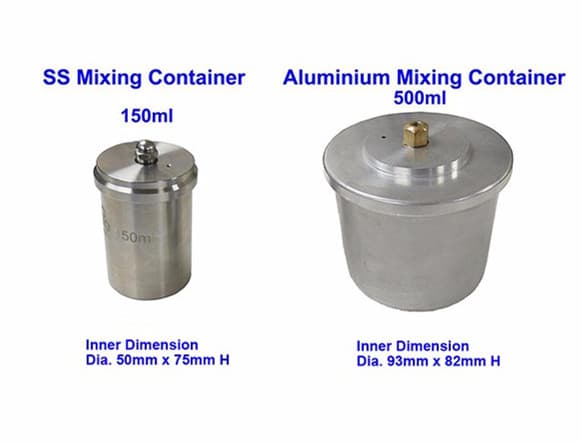

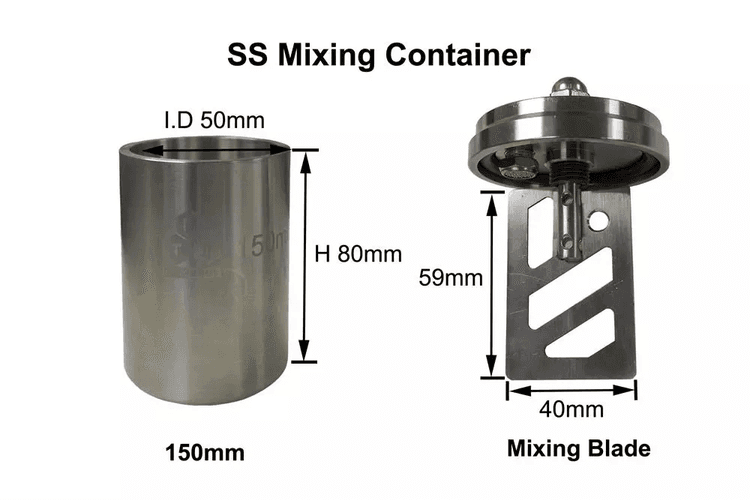

Mixing Container	Two vacuum sealed containers are included. One 150ml stainless steel and one 500ml aluminum Mixing blade is built in top of cover of container.
Vacuum pump & Vacuum Level	Built in single stage vacuum pump Vacuum Level: -0.08~0.09 Mpa
Vibration Plate	Vibrating at 1000 HZ
Dimensions (LWH)	13''L x 12''W x 21''H, 330310510mm
Shipping Dimensions	16''L x 19''W x 24''H, 420500600mm
Net Weight	70 lbs, 30kg
Compliance	CE certified
Application Notes	Please note that the main duty of this product is to remove the bubbles from the slurry during the wet mixing stage. For the best mixing uniformity, please select our professional Vacuum mixer MSK- SFM-7 system or vacuum planetary disperse mixer
Warranty	Two years limited with lifetime support
