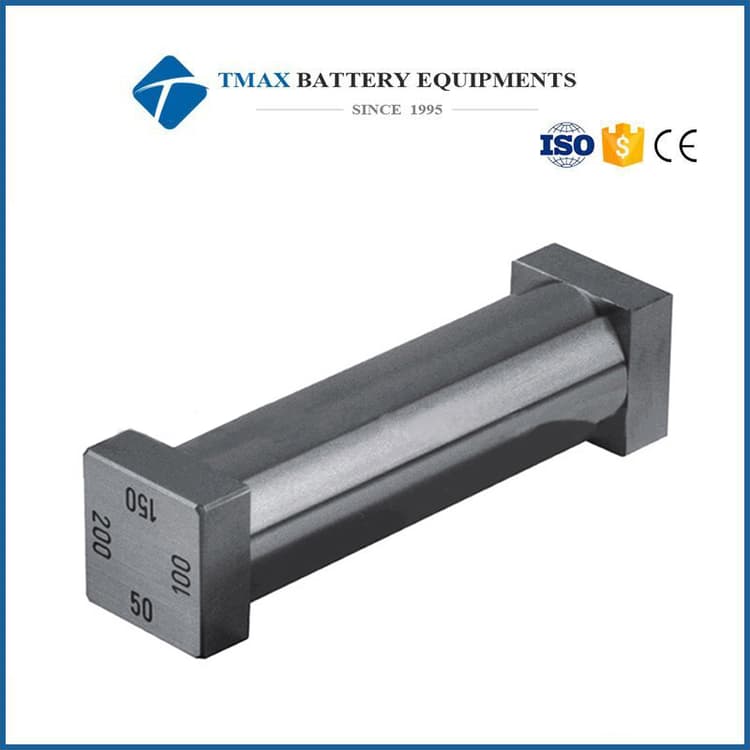

Industrial Four Sides Wet Film Applicator Coater

Product Description

1.Multi-groove coating device is designed for use on a flat substrate coating uniformity paint,adhesives and

similar products.Our company put more grooves precision coating device diversity and alternative fixed groove

coating device is incorporated in a meter.

2.1.Suitable for aqueous, acidic and alkaline products.

2.1, High grade stainless steel wear-resistant material

2.2, The effective coating width:

TMAX-DSP206 Universal type → 80mm (coating device total length 100mm)

TMAX-DSP205 lengthened type → 160mm (coating device total length 190mm)

Universal type	The effective coating width
TMAX-DSP206	80mm (coating device total length 100mm)
TMAX-DSP206/1	(5µm,10µm,15µm,20µm)
TMAX-DSP206/2	(25µm,50µm,75µm,100µm)
TMAX-DSP206/3	(50µm,100µm,150µm,200µm)
TMAX-DSP206/4	(30µm,60µm,90µm,120µm)

Lengthened type	The effective coating width
TMAX-DSP205	160mm (coating device total length 190mm)
TMAX-DSP205/2	(25µm,50µm,75µm,100µm)
TMAX-DSP205/3	(50µm,100µm,150µm,200µm)
TMAX-DSP205/4	(30µm,60µm,90µm,120µm)
TMAX-DSP205/5	(100µm, 200µm,300µm,400µm)
TMAX-DSP205/6	(50µm, 75µm,100µm,150µm)
TMAX-DSP205/7	(100µm, 150µm,200µm,250µm)
TMAX-DSP205/8	(250µm, 500µm,750µm,1000µm)
