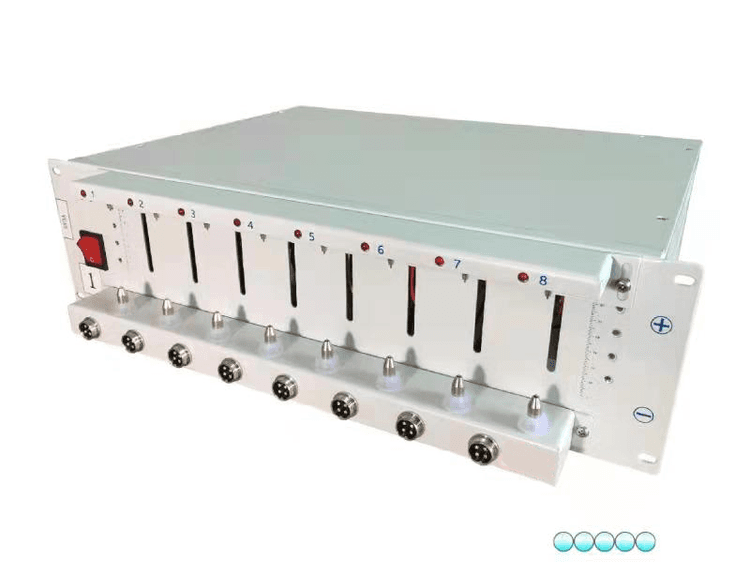

10V6A 8 Channels Lithium Ion Battery Charge and Discharge Analyzer Machine

Product Description

Input Power		AC 220V ±10% / 50Hz
resolution		AD：16bit；DA：16bit
Input Resistance		≥1MΩ
Input Power		729W
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
Voltage	Per Channel Voltage Range	Charge：0.05V~10V；Discharge：2.0V~10V
	Accuracy	± 0.1% of FS
	Stability	± 0.1% of FS
Current	Per Channel Current Range	Range：0.03A~6A
	Accuracy	± 0.1% of FS
	Stability	± 0.1% of FS
Power	Per Channel Output Power	60W
	Stability	± 0.2% of FS
Time	Current Response Time(10%FS~90%FS)	20ms
	Step Time Range	1s≤Single Step Time Range≤365*24 h， Time Form Support 00：00：00(h、min、s)
Data Recording	Record Condition	Min. Record Time：100ms
		Min. Record Voltage：20mV
		Min. Record Current：Range：12mA
	Record Frequency	10Hz
Charge	Charge Mode	Constant Current Charge、Constant Voltage Charge、 CC-CV Charge 、CP-Charge
	End Condition	Voltage、Current、Relative Time、Capacity、-△V
Discharge	Discharge Mode	Constant Current Discharge CP-D CR-D
	End Condition	Current、Current、Relative Time、Capacity
Pulse Model	Charge	Constant Current、Constant Power
	Discharge	Constant Current、Constant Power
	Min Pulse Width	500ms
	Pulse Number	Single Pulse Step Support 32 different Pulse
	Charge r To Discharge	One Pulse Step Can Support Continuous Charge And Discharge Change
	Stop Condition	Voltage、 Relative Time
DCIR Testing	Support Custom Access Point And Count The DCR

Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Nested loop Function，Max Support 3 Layers
Protection	Software Protection	l Power-down Data Protection
		l Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time

Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Data Management		MySQL Database
Communication Means		TCP/IP Protocol
Data Output		EXCEL、TXT
Communication Interface		Ethernet Port
Main Channels		8
Dimensions		3U，WDH：480730130（mm）per unit

Working Temperature Range	0℃~40℃
Storage Temperature Range	-10℃~45℃
Working Environment Relative Humidity Range	30% ~ 80% RH
Storage Environment Relative Humidity Range	30% ~ 90% RH
